Condition
NEW
Length
N/A
ATM
2000kg
Tare
1451KG
Ultimate Entry Level Camper
The perfect mix of quality, features and affordability is what the Explorer Forward Fold off road camper trailer is all about. Independent suspension, roomy layout and powered by a lithium battery, all the important features are taken care of. X-Track suspension with Tough Trax shock absorbers and MDC Mega Hubs will let you tackle the toughest the outback has and sleep the night away on the large queen bed. Water storage and electric pump combined with slide out kitchen and gas cooktop complete this great value entry-level camper.
GENERAL

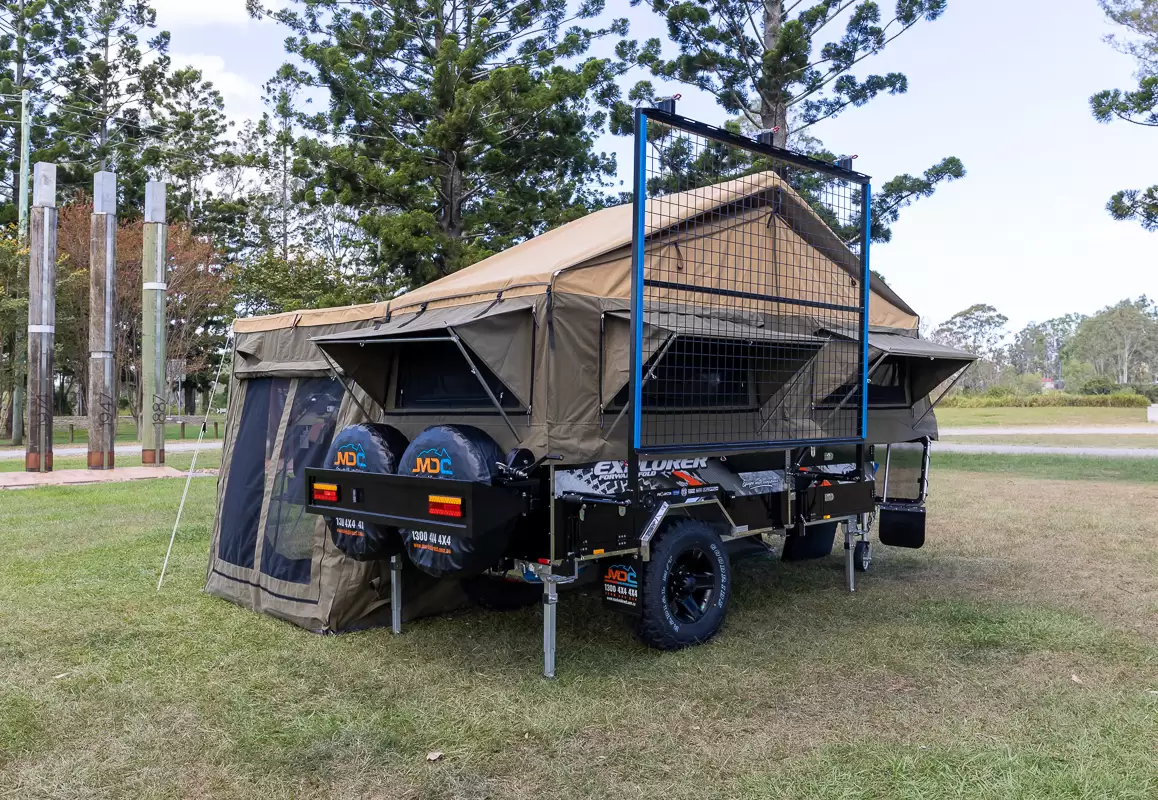

♦ Forward Folding Hardfloor Camper Trailer
♦ 5 Berth

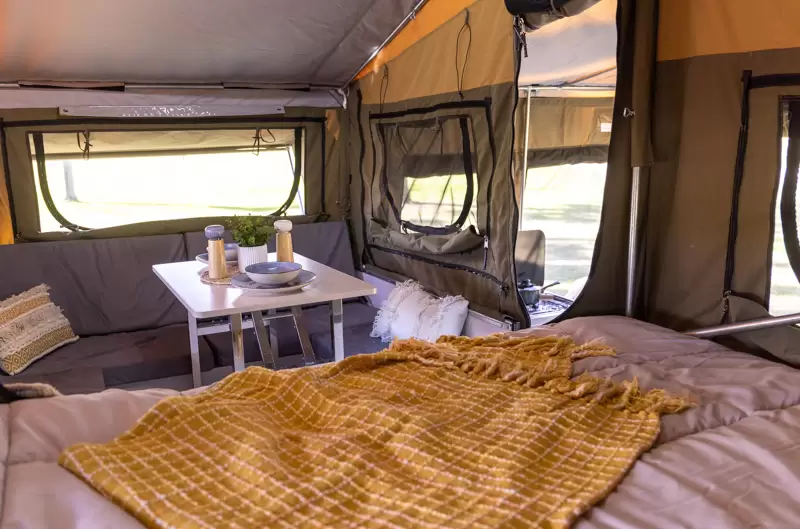

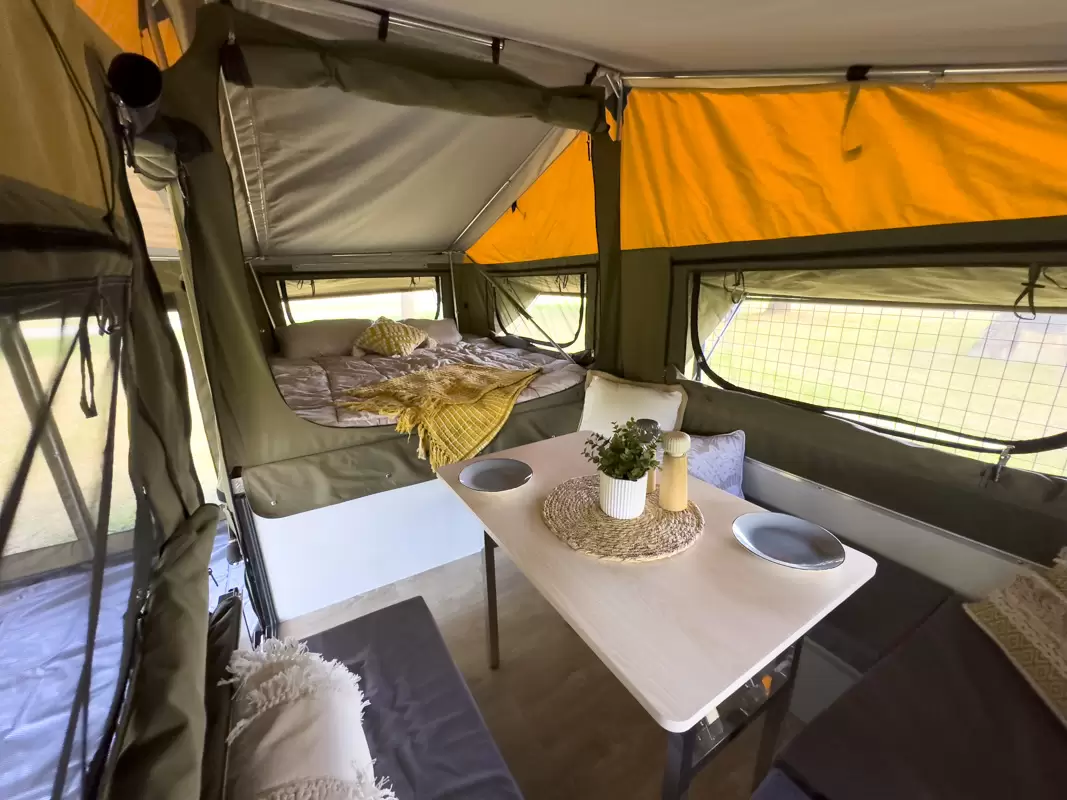

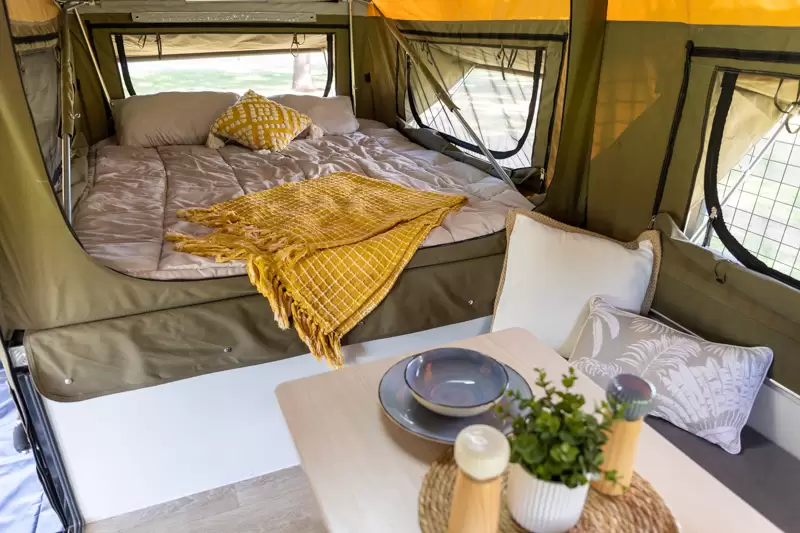

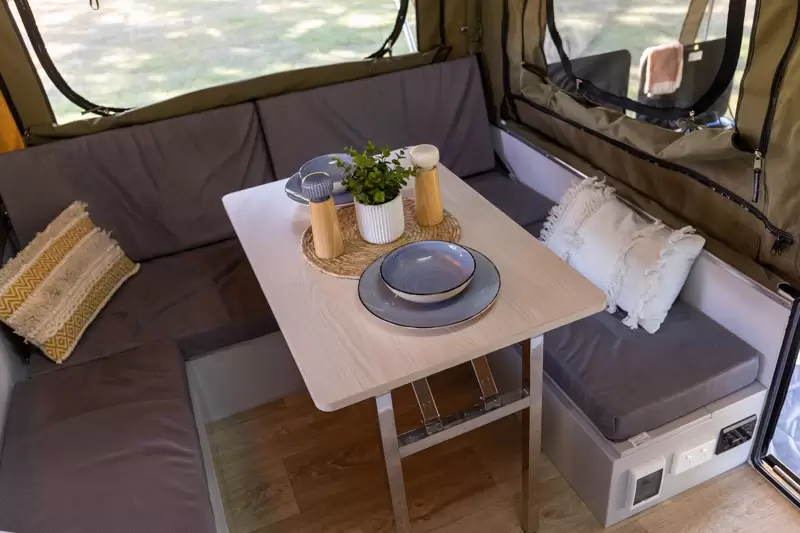

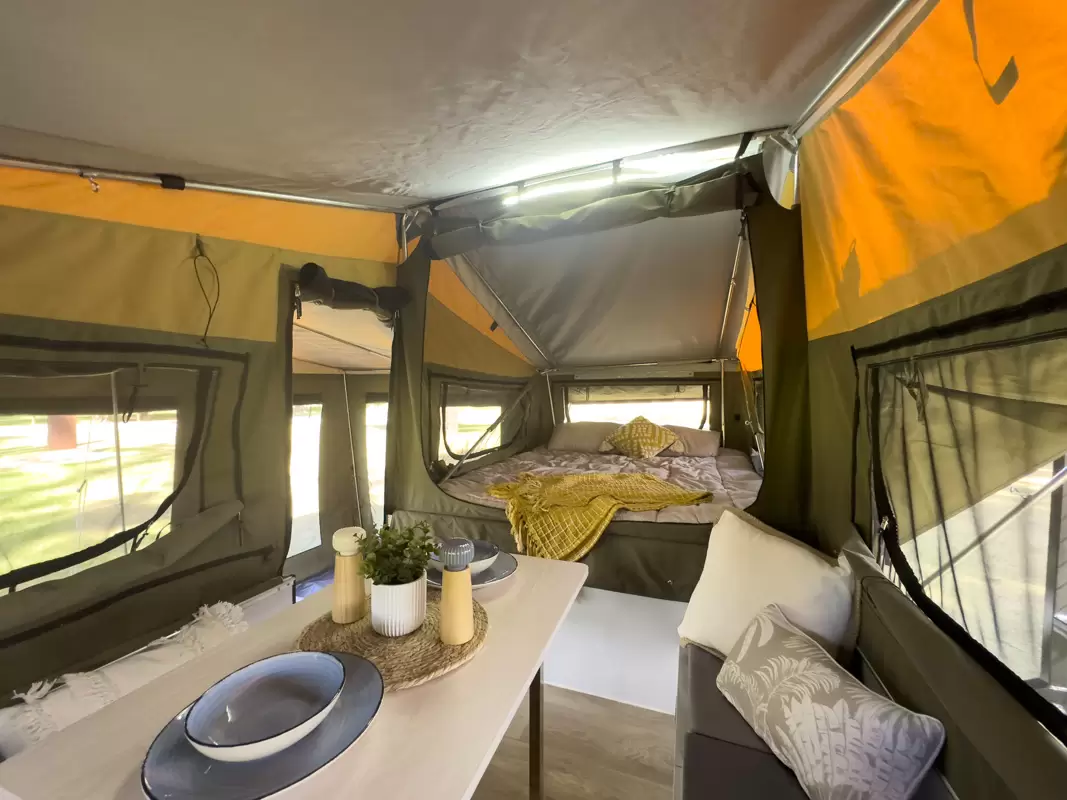

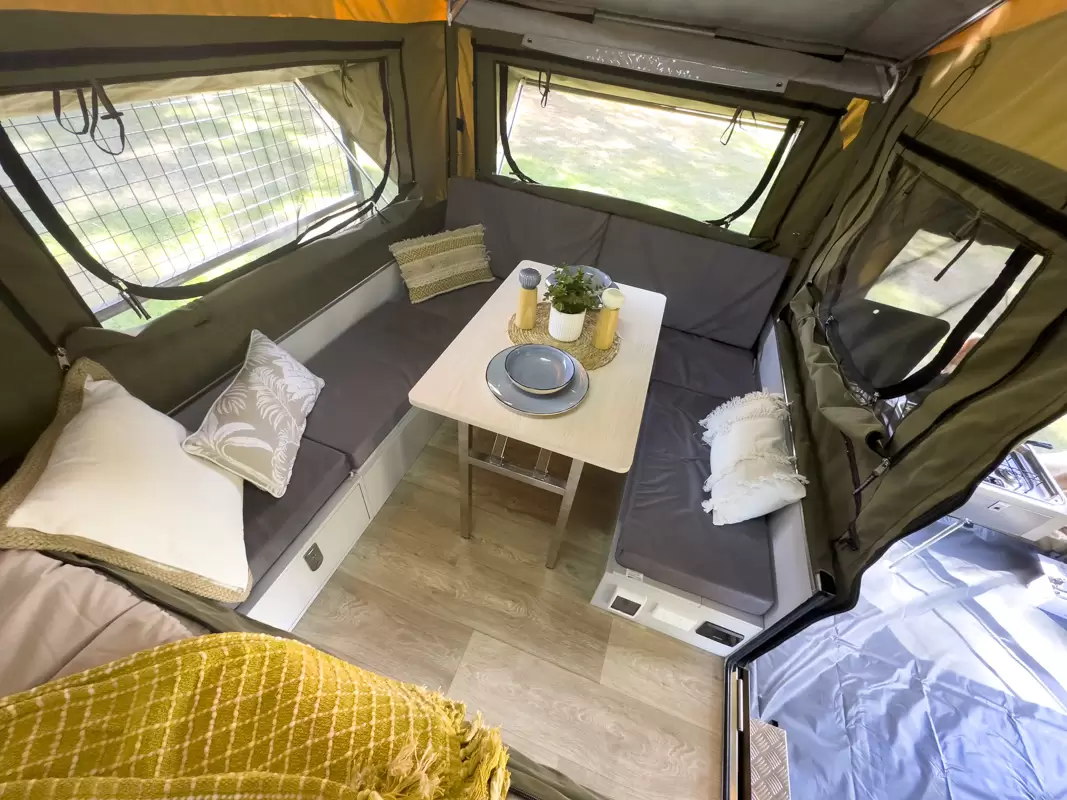

♦ 1 x king size high-density foam mattress and convertible lounge

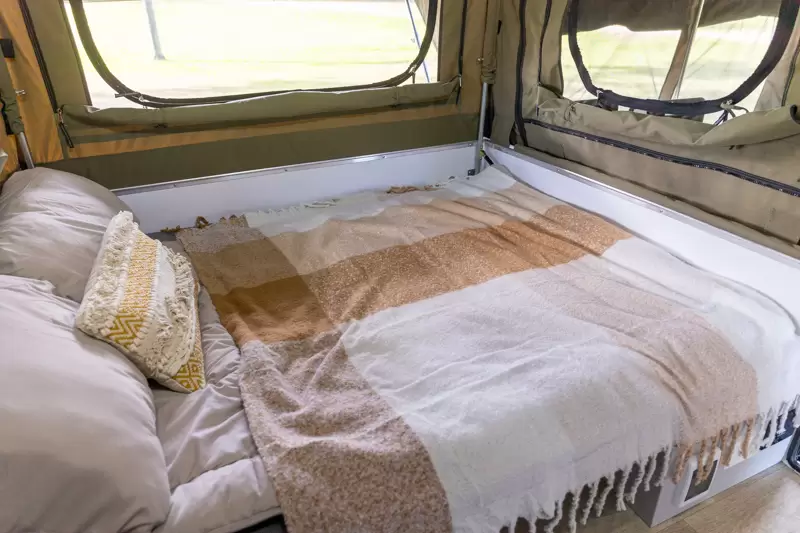

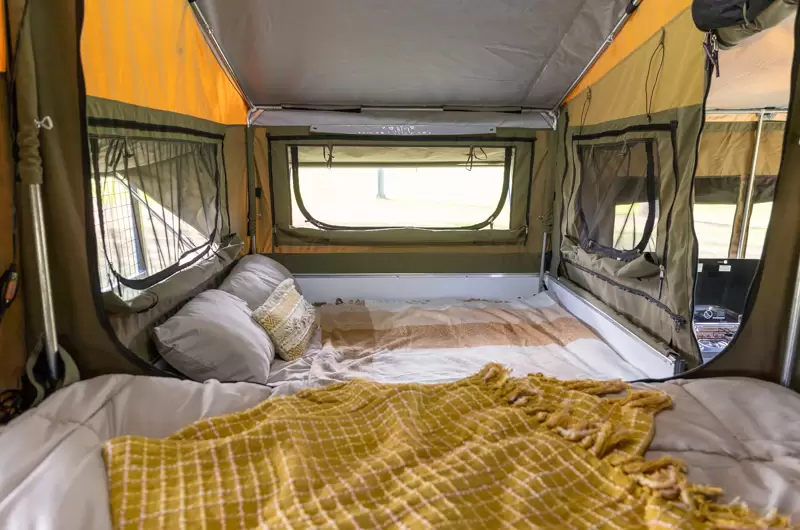

♦ Bed – 2000mm L x 1640mm W x 80mm H
♦ Galvanised chassis and frame with zinc-coated steel sheet flooring and baked automotive enamel finish
♦ Welded zinc galvanised frame with bonded zinc coated panels
WEIGHTS & RATINGS
♦ Tare weight Approx. 1451 kg
♦ Towball weight Approx. 160 kg
♦ ATM Rating 2000kg
DIMENSIONS
♦ Closed (Travel Size) – 5215mm L x 2011mm W x 1345mm H
♦ Tent height open – 3.1m
♦ Annex size – 4.6m x 2.3m
CHASSIS
♦ 100mm x 50mm – Q460 galvanised steel RHS drawbar
♦ Off-road poly block coupling
♦ 10” swing up and lockable Jockey Wheel
♦ 16 x 7.5 6/139.7 aluminium alloy wheels fitted with 265/75 R16 Goodride radial mud terrain + 2 x spares

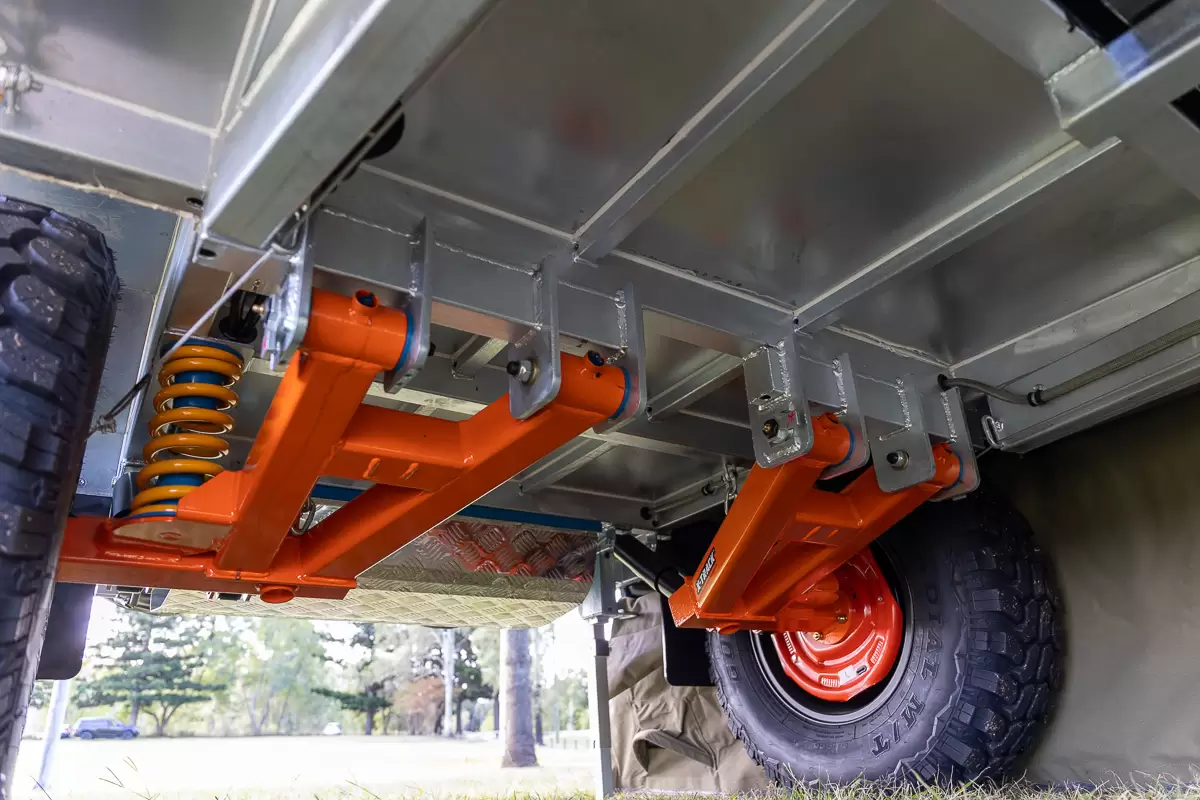

♦ X-TRACK independent coil spring suspension with 2 x TOUGH TRAX shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake
♦ 4 x heavy duty lockable and adjustable drop down stabiliser legs
♦ CASP 1500kg high-lift scissor jack & integrated jacking points

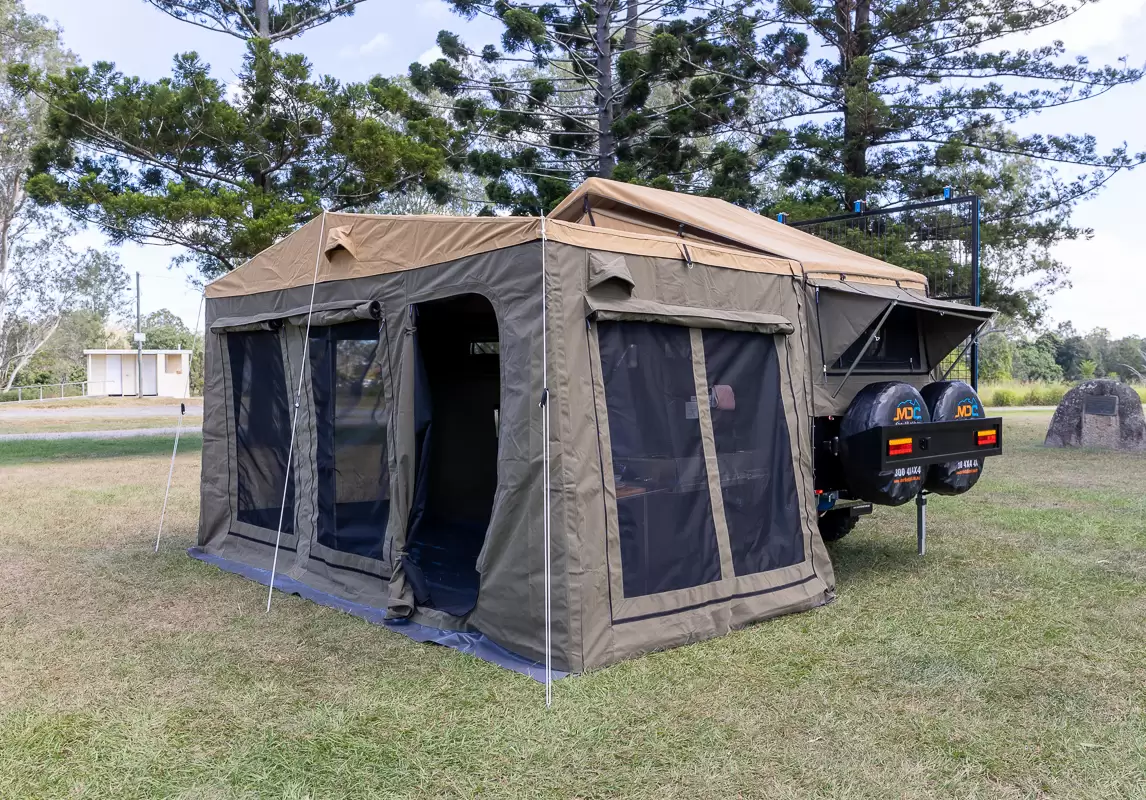

TENT & ANNEX
♦ MDC integrated trailer tent, double stitching and reinforced, gusseted windows and protective seam tape on roof and awning + removable tropical roof. Offers up to 22m² of living space between the main tent and fully enclosed annex
♦ 16oz Sherpa Closeweave canvas
♦ Khaki walls and Sand roof, awning and tropical roof canvas colour
♦ Windows – Tight weave PVC coated fibreglass mesh stops mosquitos and midges
♦ Velcro & zip-on removable canvas awning across full length of main tent

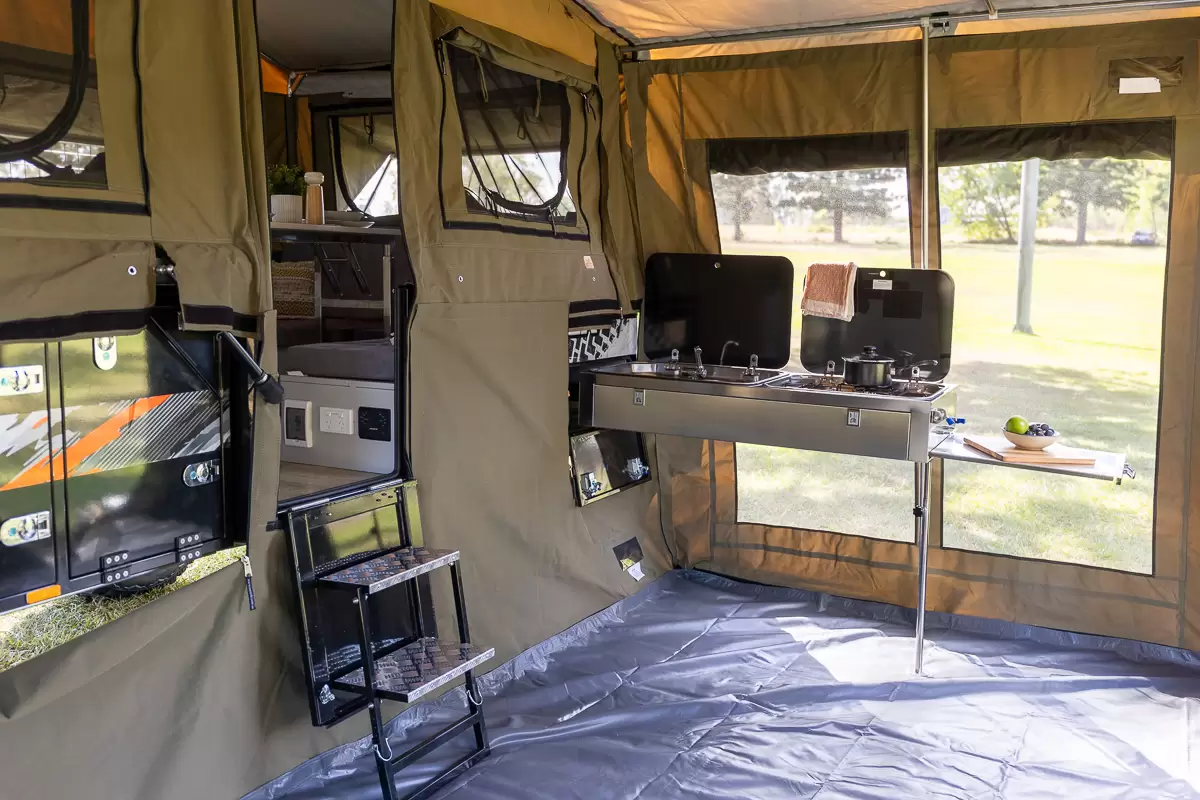

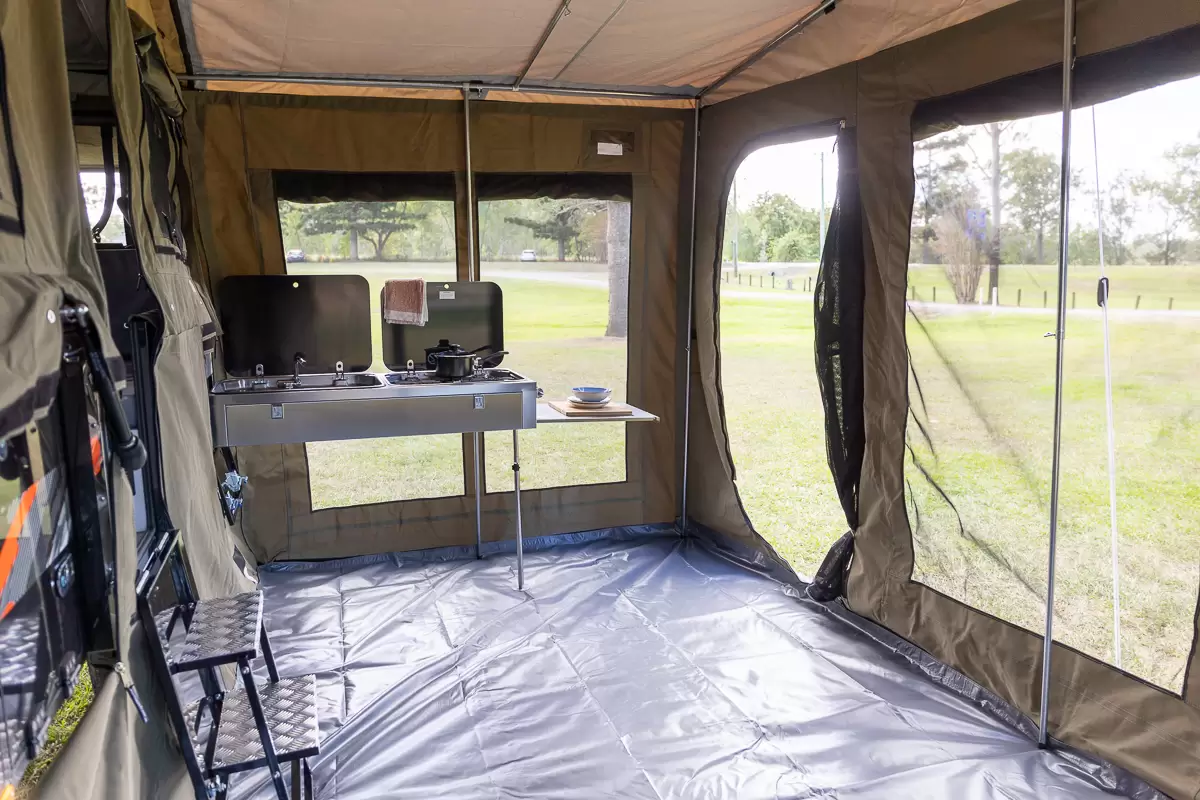

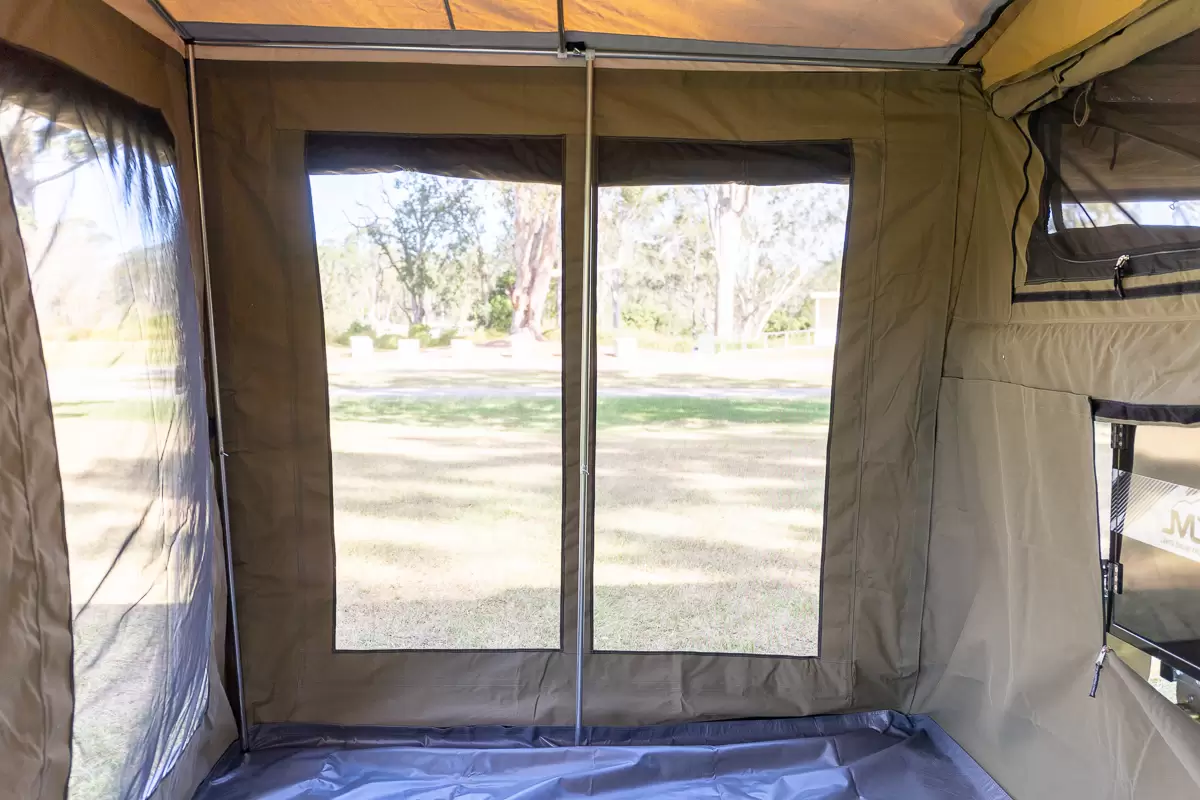

♦ Full annex, enclosed roof, walls, floor and draft skirt
♦ Galvanised steel tent frame and annexe poles, dia19/22/25mm
EXTERIOR
♦ Removable, side-mounted storage rack
♦ 1 x 9kg gas cylinder holders with LCC27 pigtail connector
♦ 2 x 20L jerry can holders
♦ 1 x 80L fresh water tank
♦ 12V electric marine diaphragm pump

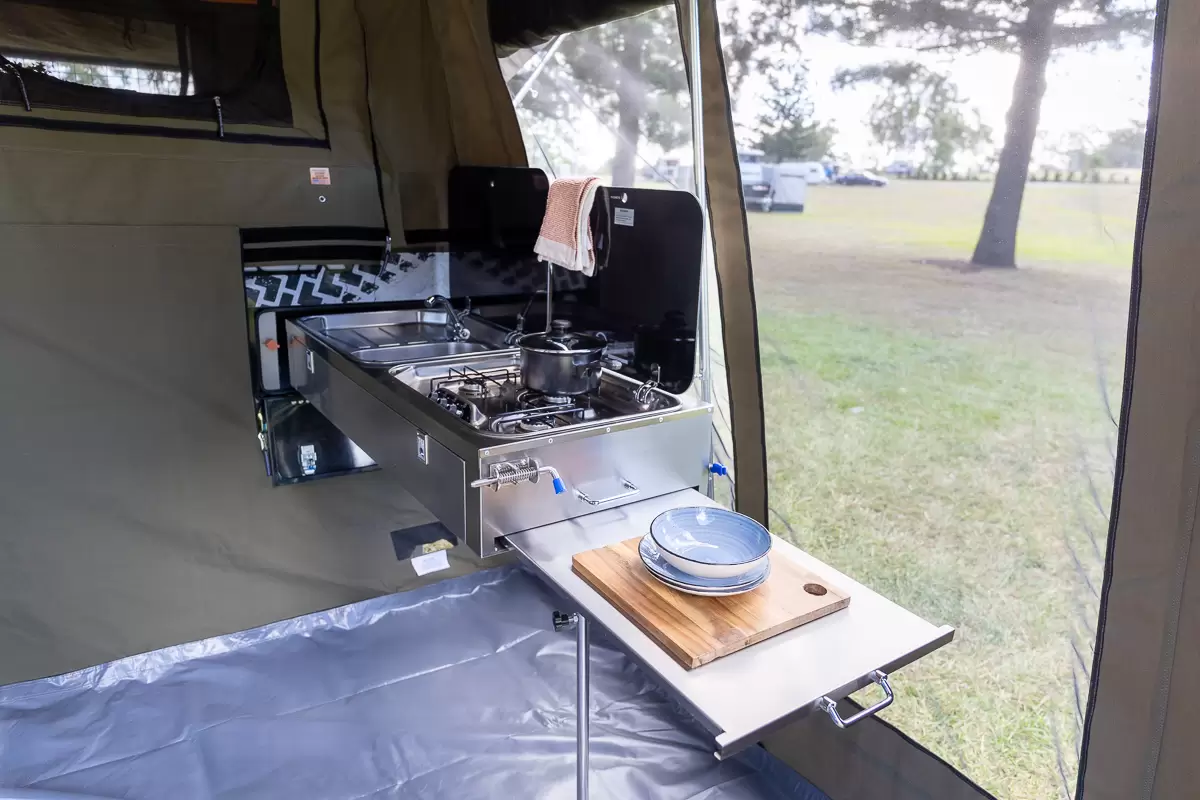

♦ Slideout stainless Steel body with gas hob cooktop & washboard sink with plumbed cold water supply
♦ Mesh screen stone guard with forward-facing mud flap protection
♦ Fridge Slide – 970mm L x 590mm W x 490mm H
♦ 20L portable toilet
MAJOR APPLIANCES
♦ Stainless steel 3-burner gas hob cooktop with glass lid
ELECTRICAL
♦ 1 x 50A Anderson plug for externally regulated input + 1 x 200W portable solar panel
♦ Internal 3 x portable 12V LED light strips
♦ External 12V LED position markers, indicator & stop/tail lights
♦ 7-pin flat trailer connector
INTERNAL POWER OUTLETS
♦ 3 x 12V accessory sockets
♦ 1 x 5V dual USB charging ports (1A & 2A split)
♦ 1 x 240V double pole GPO
EXTERNAL POWER OUTLETS
♦ 1 x Anderson plugs
♦ 3 x 12V accessory sockets
Price shown does not include fright, registration fees and other government charges. For the complete driveaway price, kindly contact us or visit our showroom. Prices are subject to change without prior notice.
