- Caravan

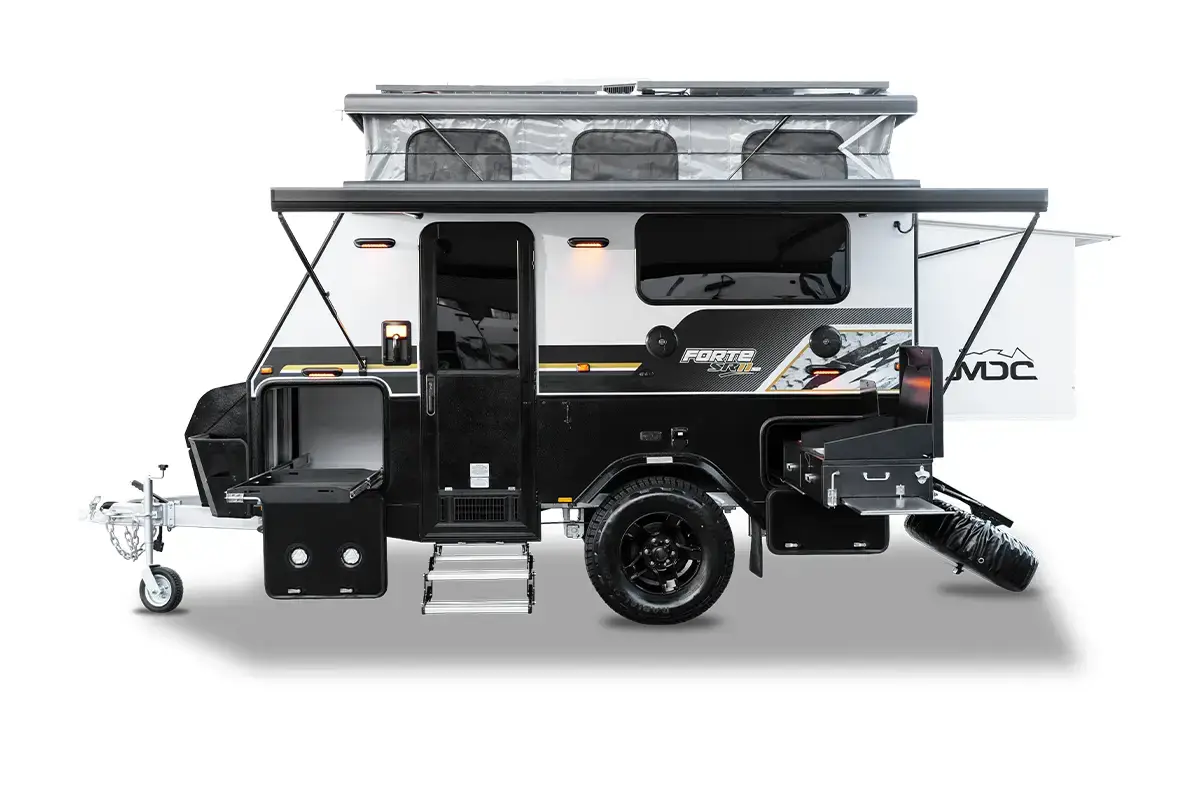

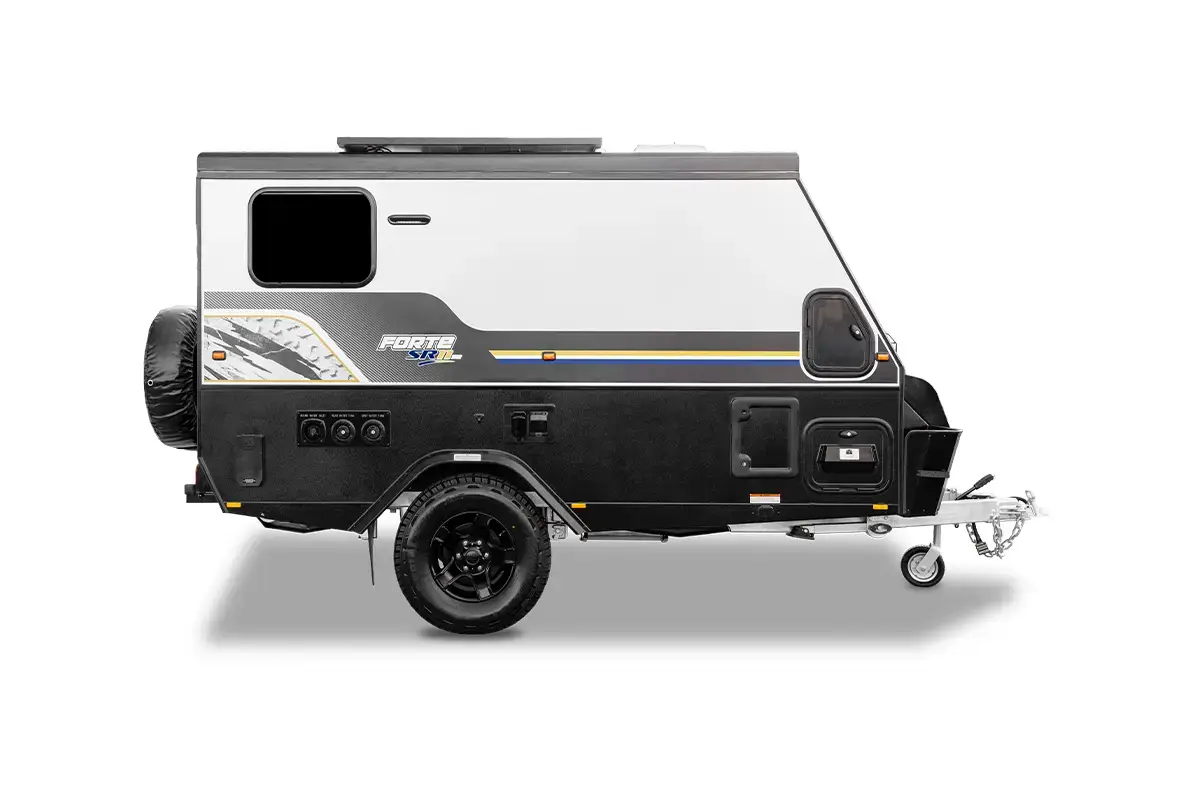

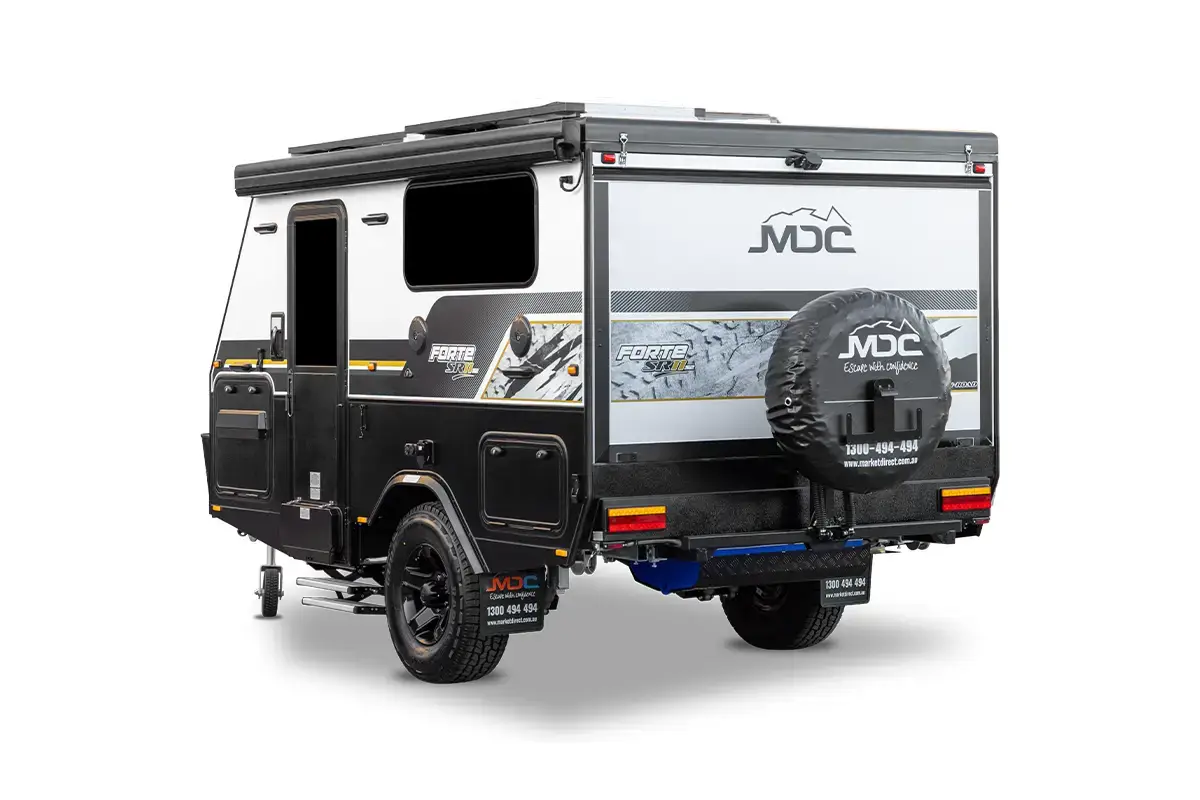

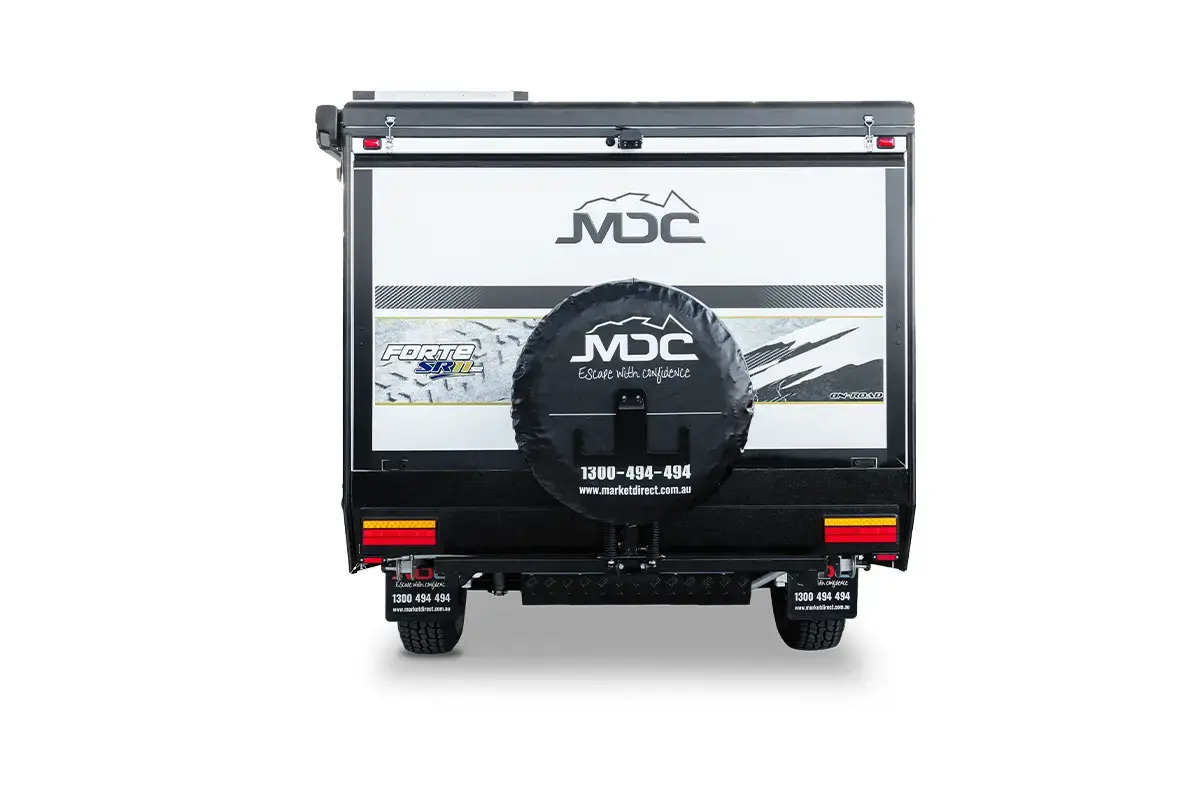

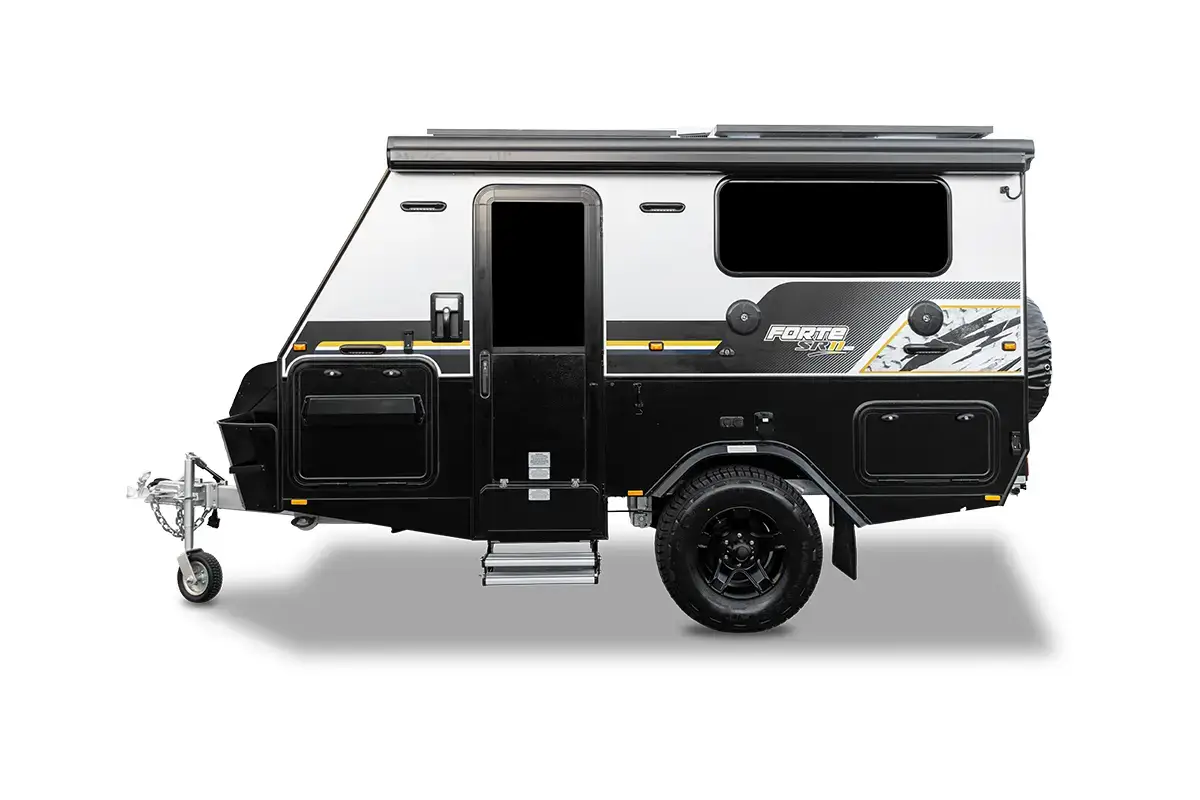

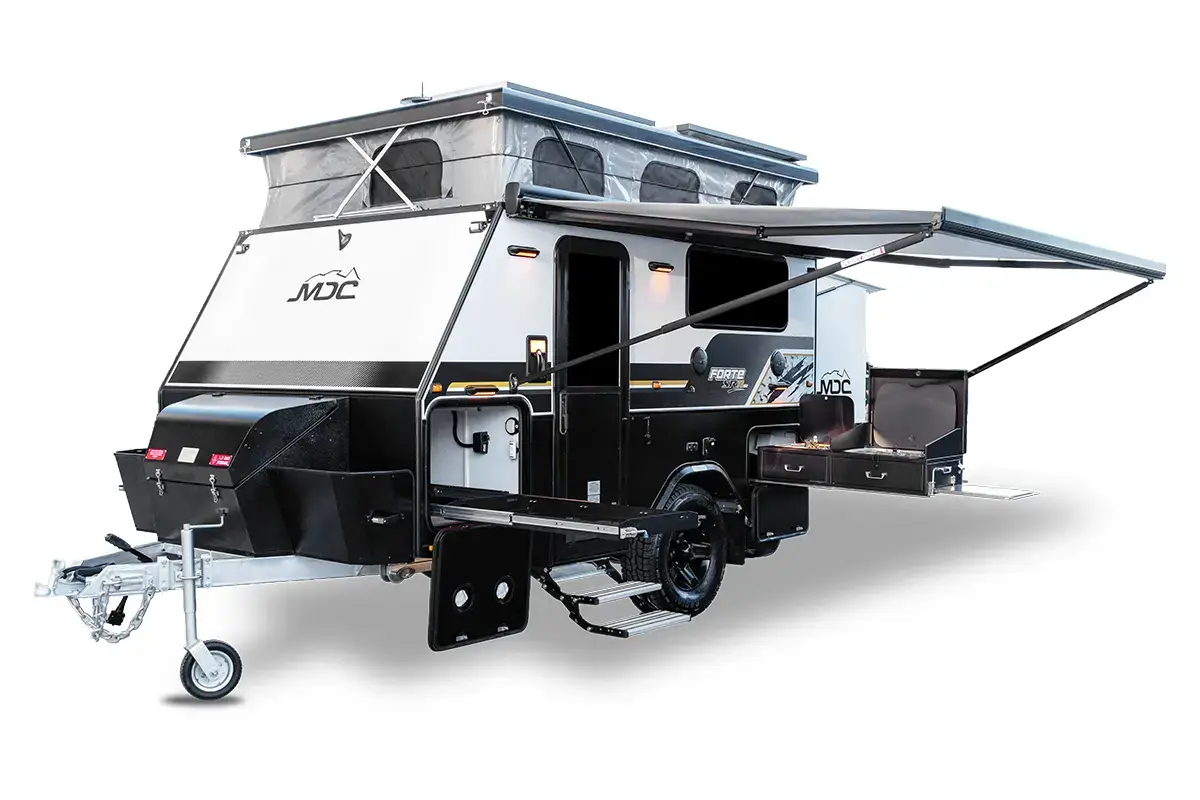

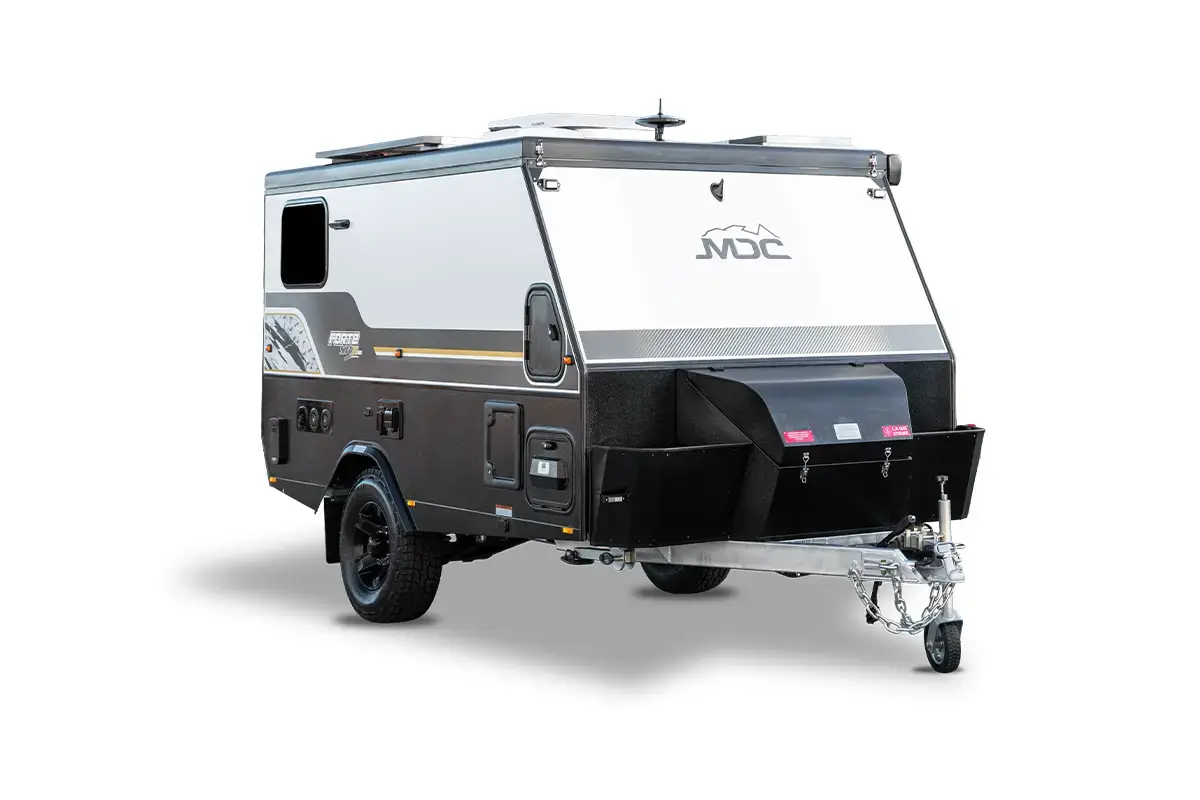

11′ Pop Top Hybrid On-road Caravan - Sleeps
2 Berth - Main Bed

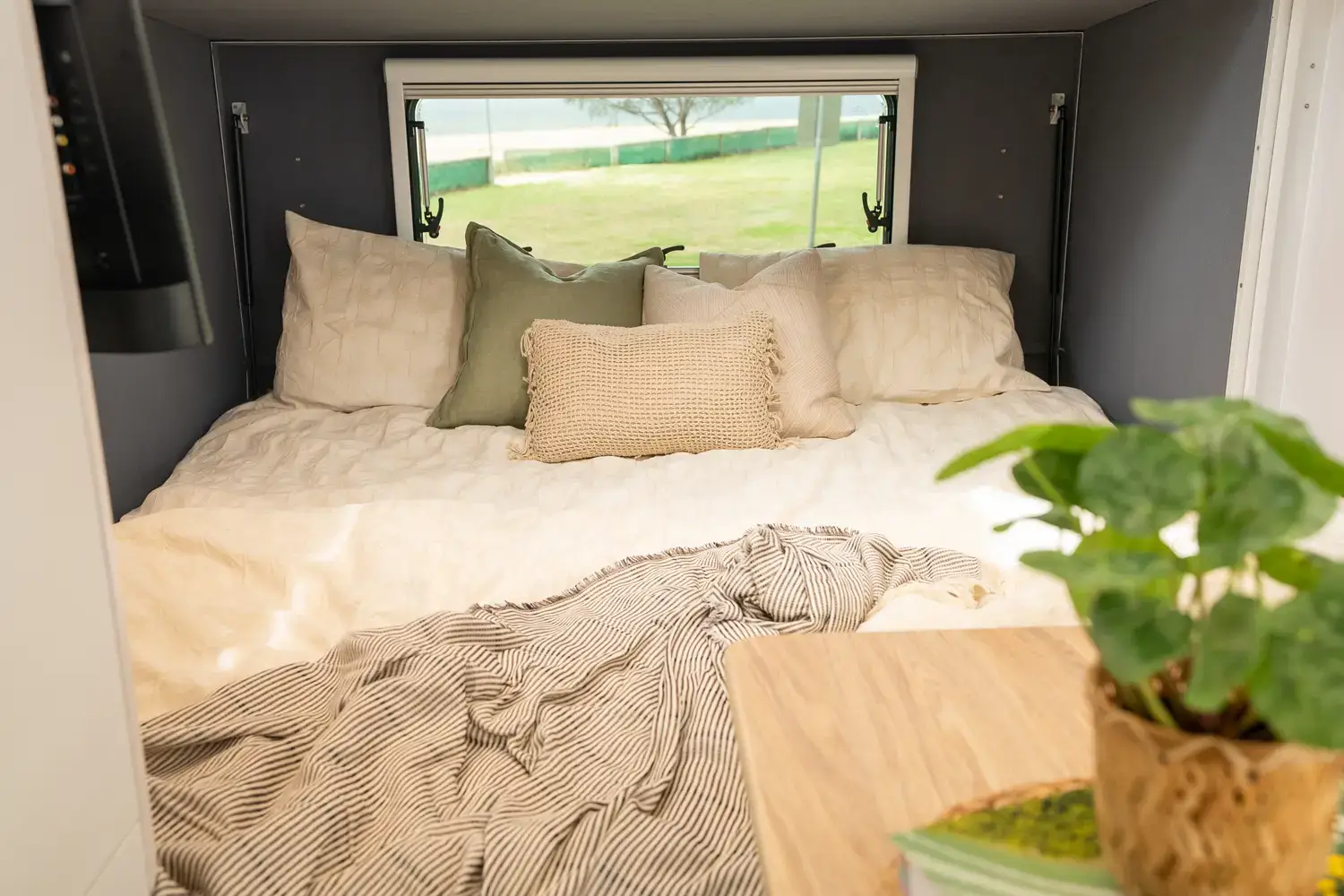

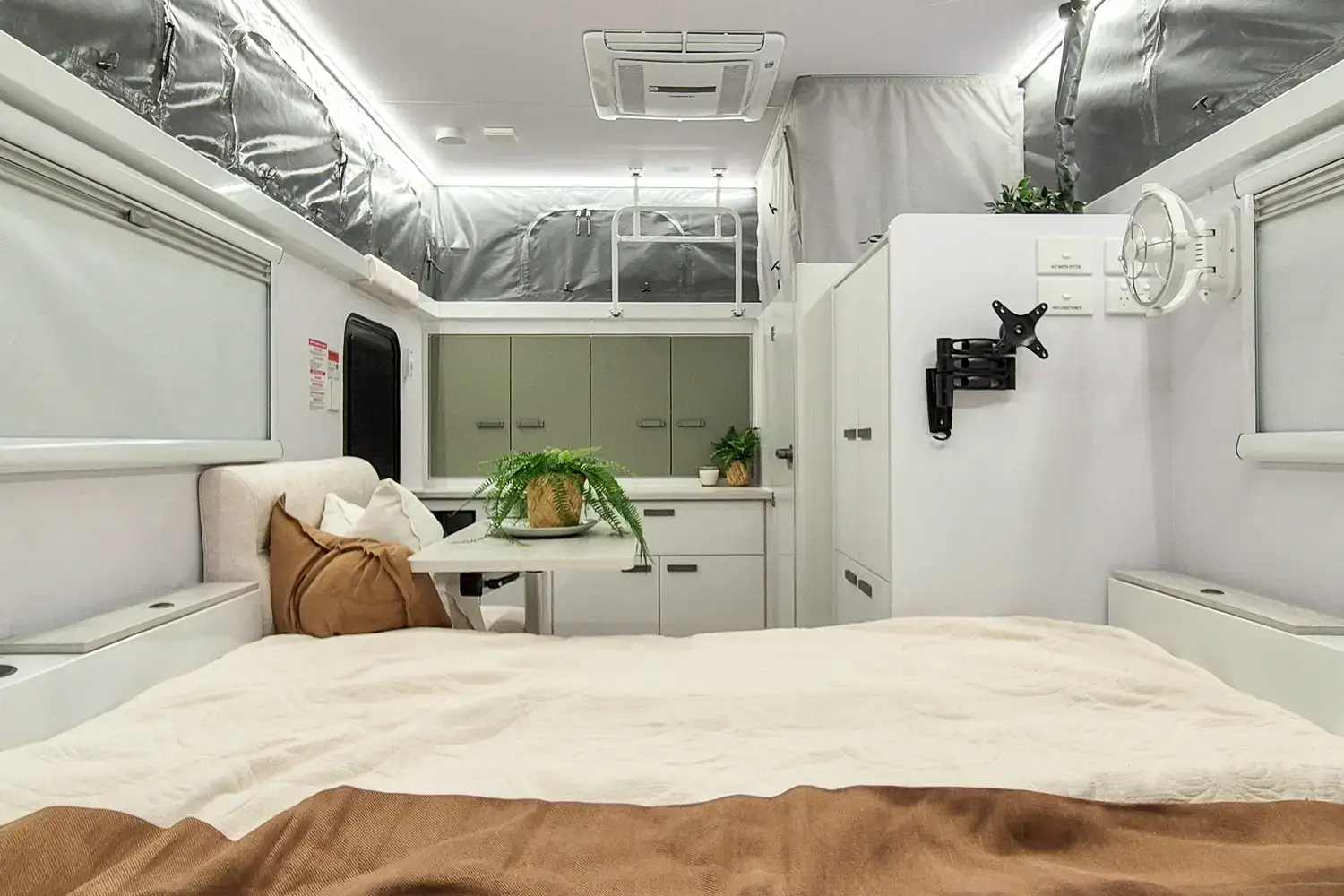

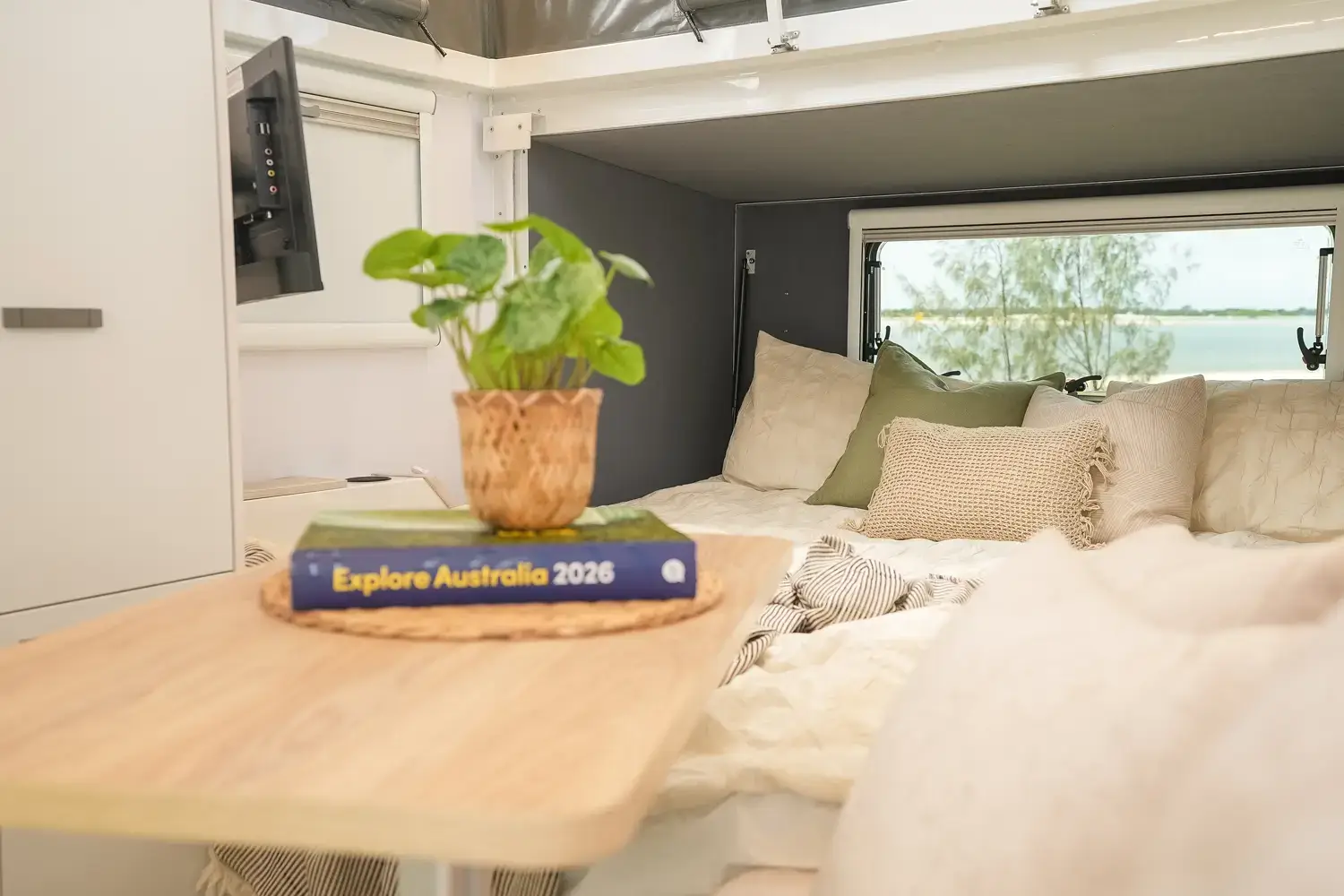

1 x King size bed - Mattress Size
2000mm L x 1700mm W x 150mm H - Chassis Finish
Hot dip galvanised chassis + aluminium composite panel throughout
- Tare Weight
Approx. 1680kg - Tow Ball Weight
Approx. 165kg - ATM Rating
2100kg - Payload
Approx. 420kg
- Open
5802mm L x 4285mm W x 3027mm H - Closed (Travel Size)
5302mm L x 2285mm W x 2575mm H
- Coupling
Trojan 50mm Ball Coupling - Jockey Wheel
10′′ swing up and lockable Jockey Wheel - Wheels
16″ Alloy wheels with 265/75 Goodride A/T tyres - Suspension
Independent coil spring trailing arm suspension with dual shock absorbers (Single Axle) - Brakes
12″ Electric drum brakes - Drop Legs
4 x heavy duty lockable and adjustable drop down stabiliser legs - Jack
CASP 1500kg high-lift scissor jack
- Awning

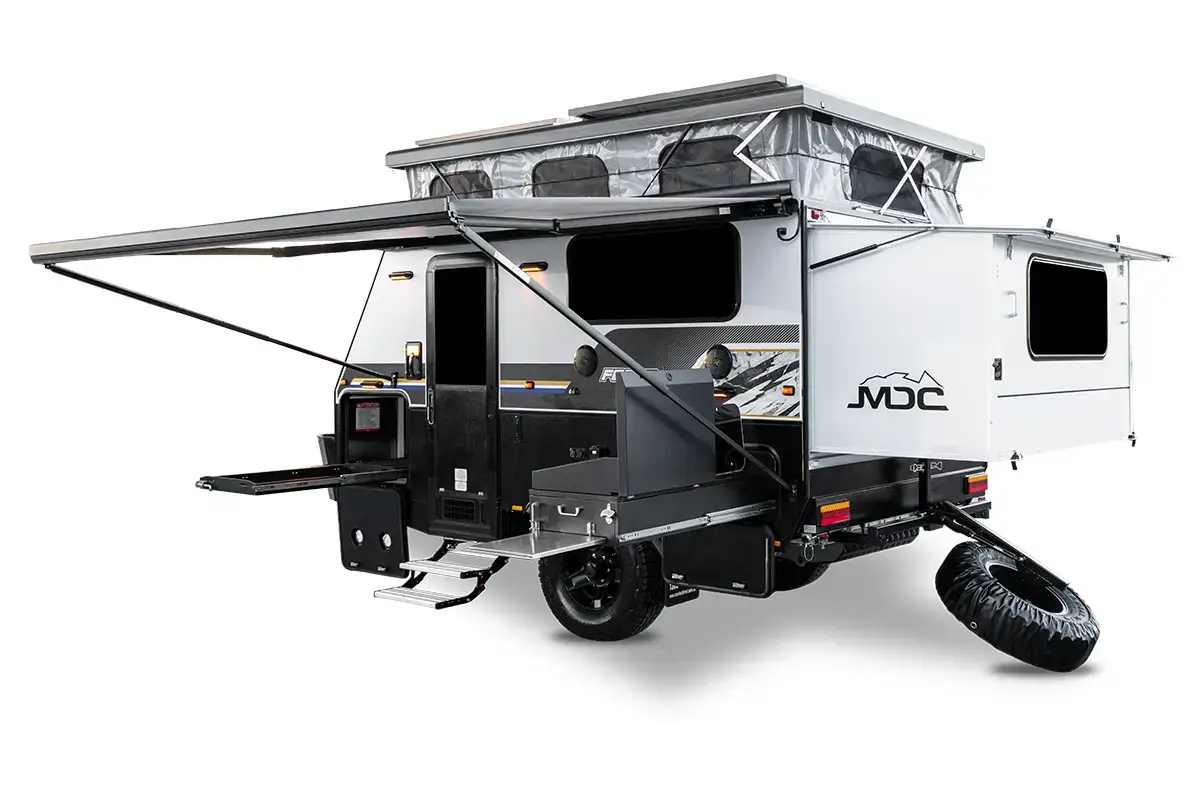

Electric cassette awning - Gas Bottles
2 x 9kg gas cylinder holders in enclosed compartment - Fresh & Grey Water
1 x 120L fresh water & 1 x 80L grey water - Water Pump
12V electric marine diaphragm pump water delivery - Fridge Slide
1000mm L x 530mm W x 490mm H (passenger side) - Camera & Monitor
Wireless rear view camera + 7″ monitor - ESC
Tuson TSC-1000 – electronic stability control with asymmetric braking
- Cabinetry

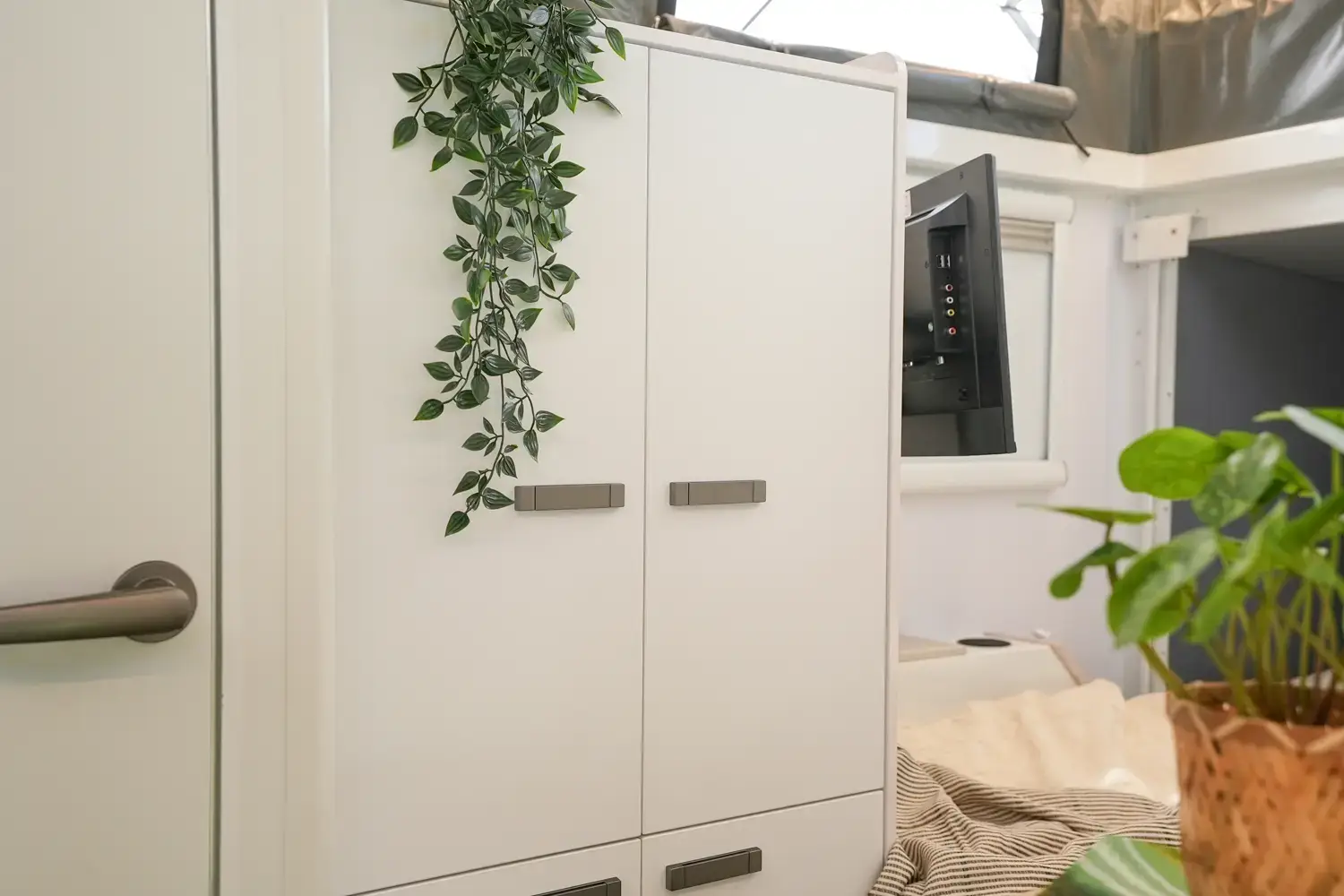

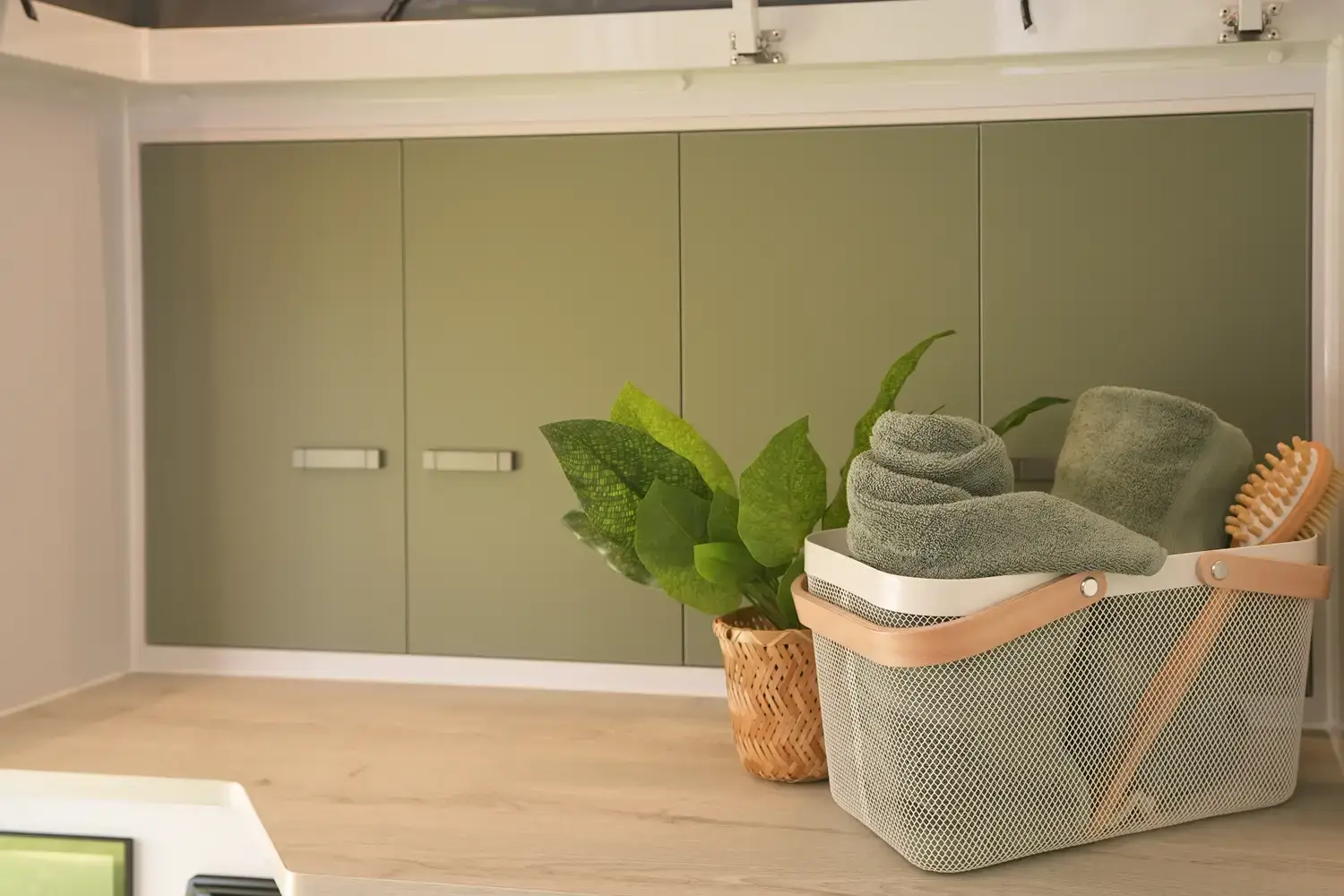

Matte white & sage green cabinetry paired with oak benchtops, heritage oatmeal upholstery, and gunmetal grey fixtures - Ensuite

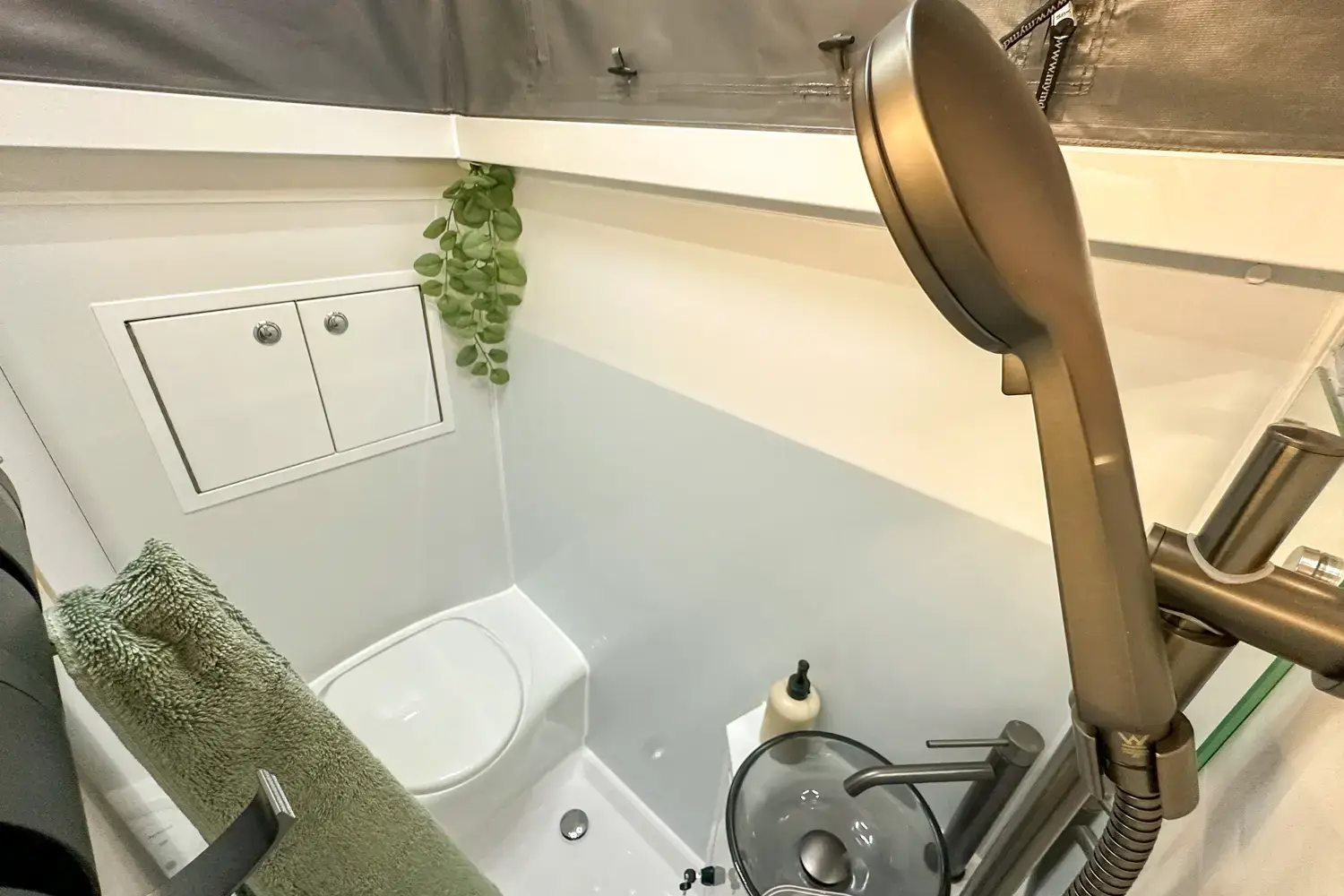

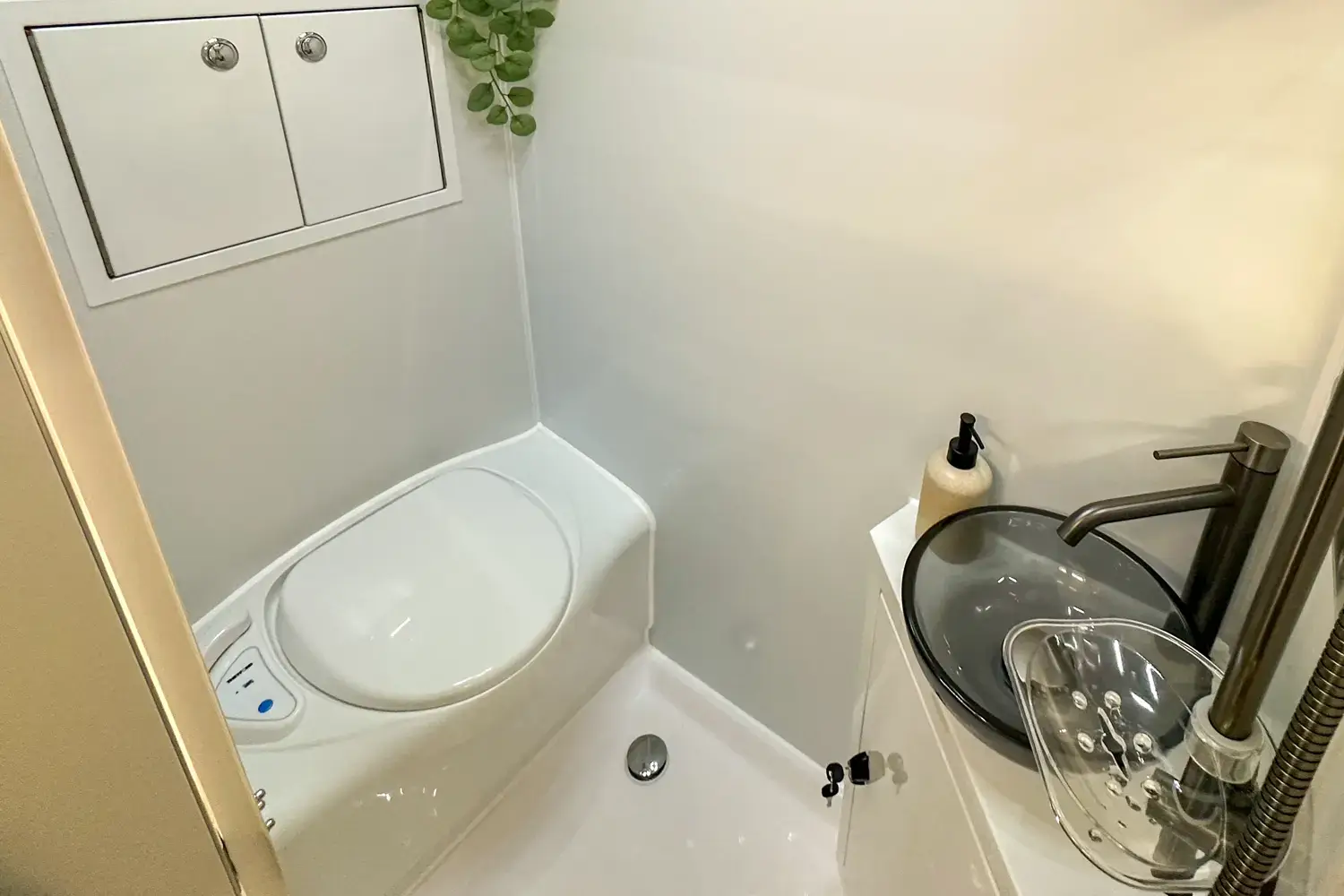

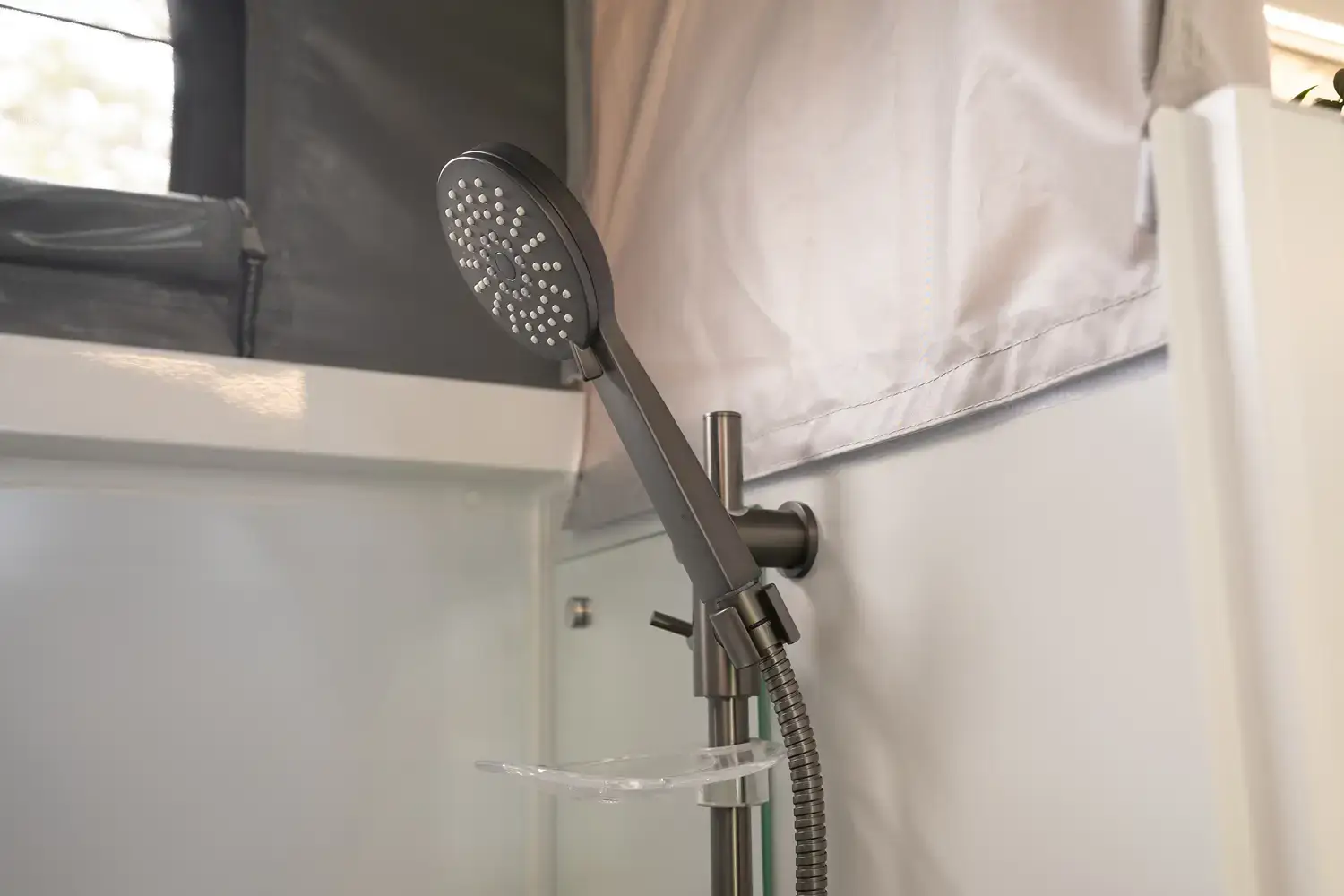

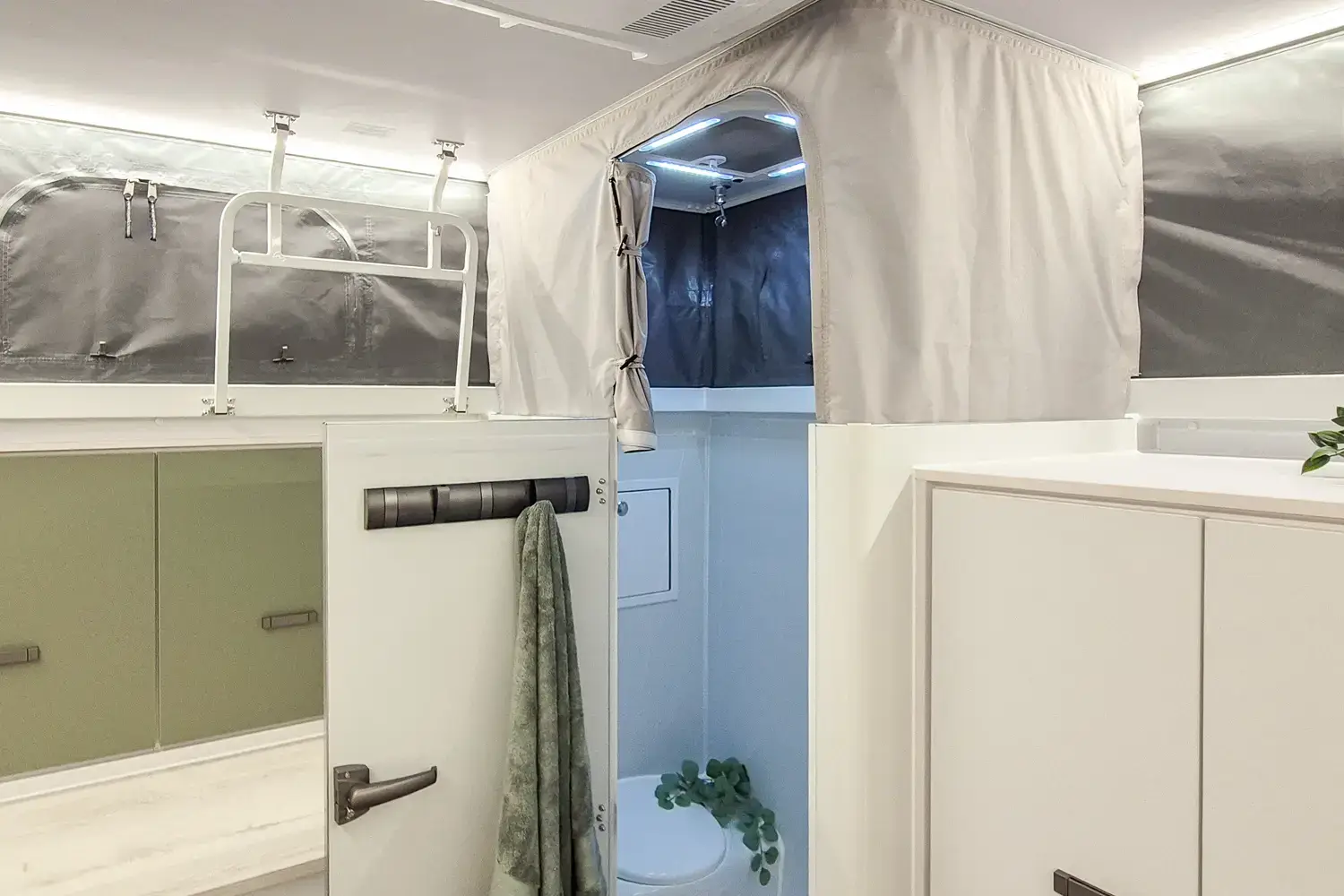

Internal combination ensuite with Thetford cassette toilet - Seating Configuration

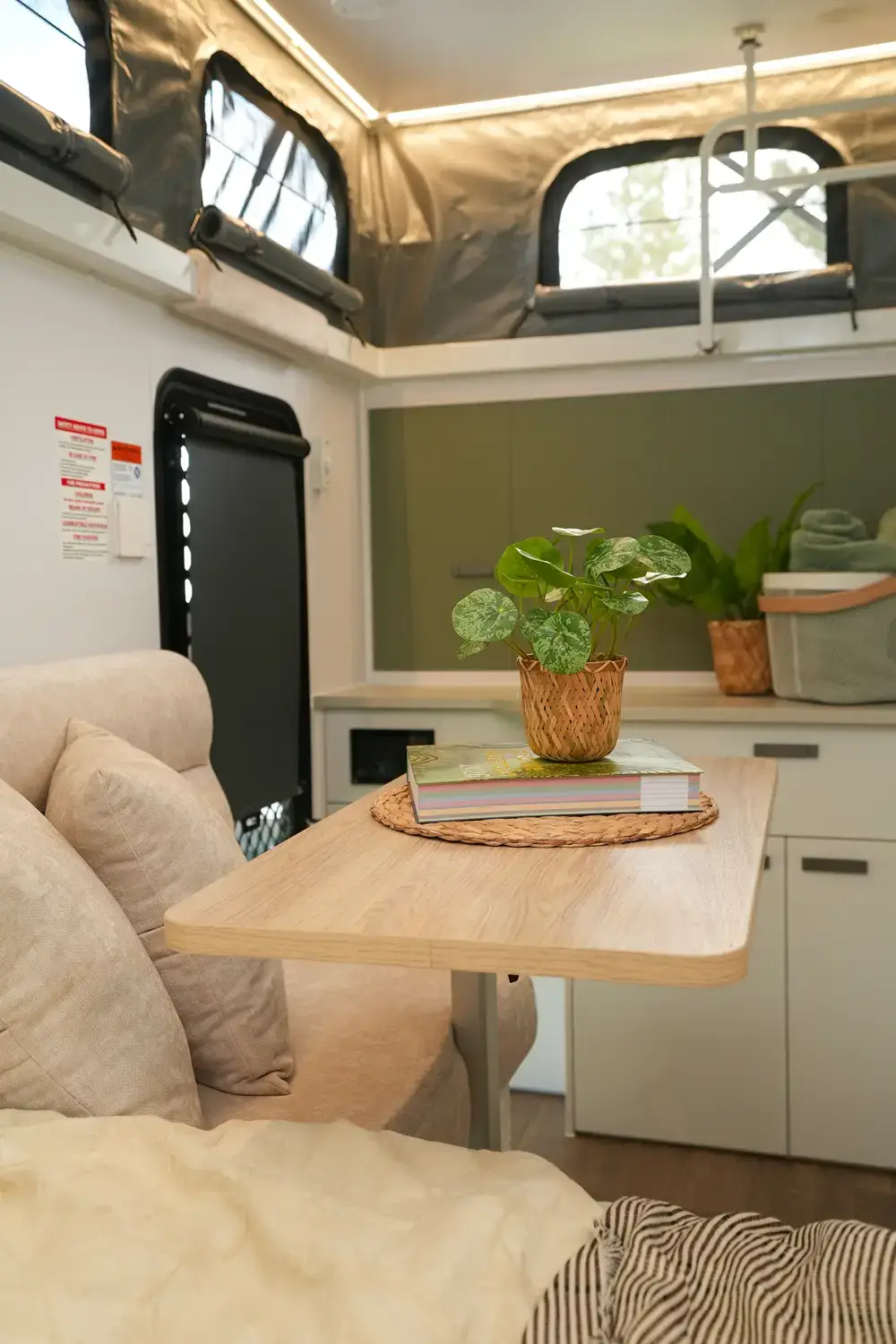

Straight lounge - Windows
Double acrylic glazed windows and double cassette blind with flyscreen and block-out - Roof Hatch

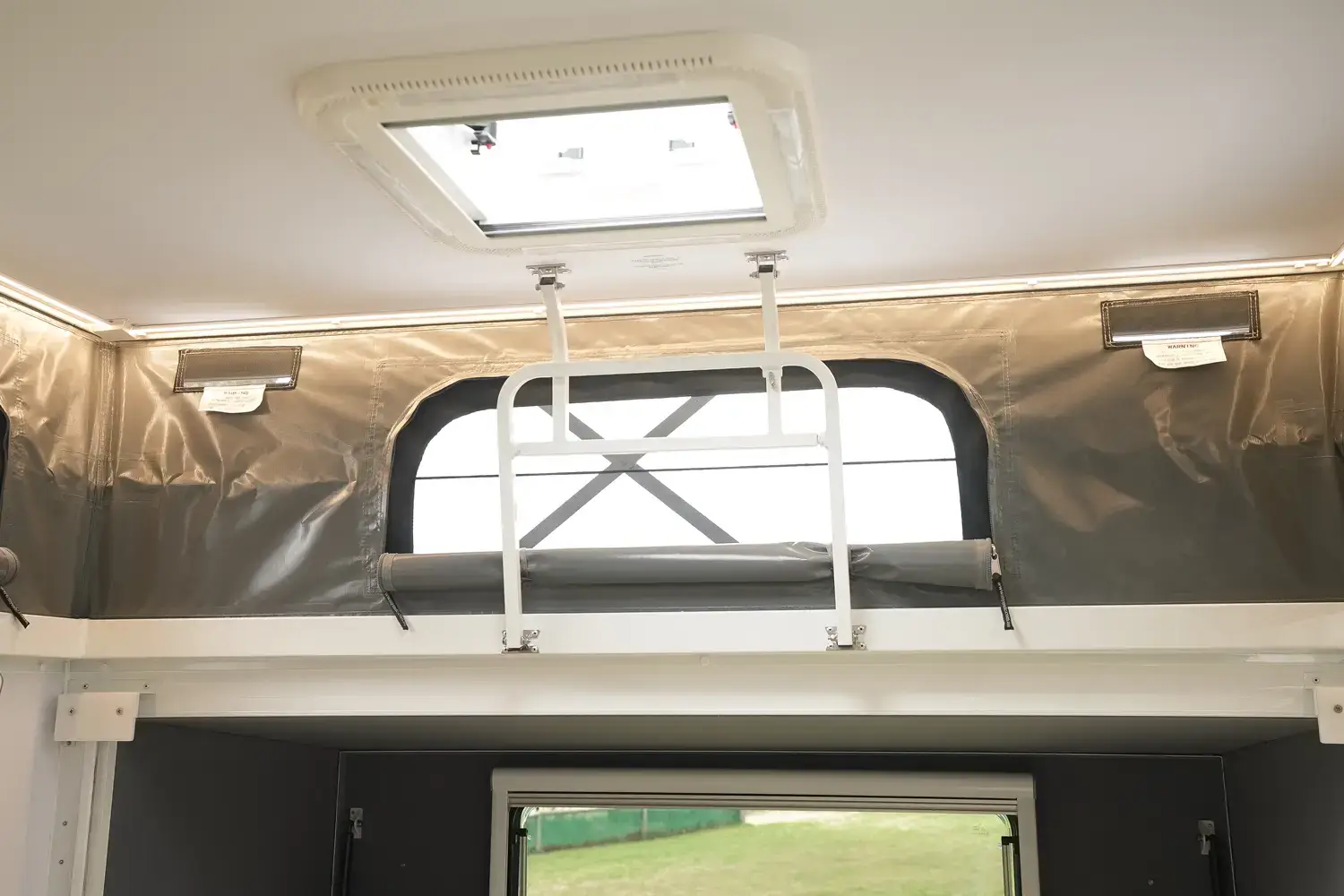

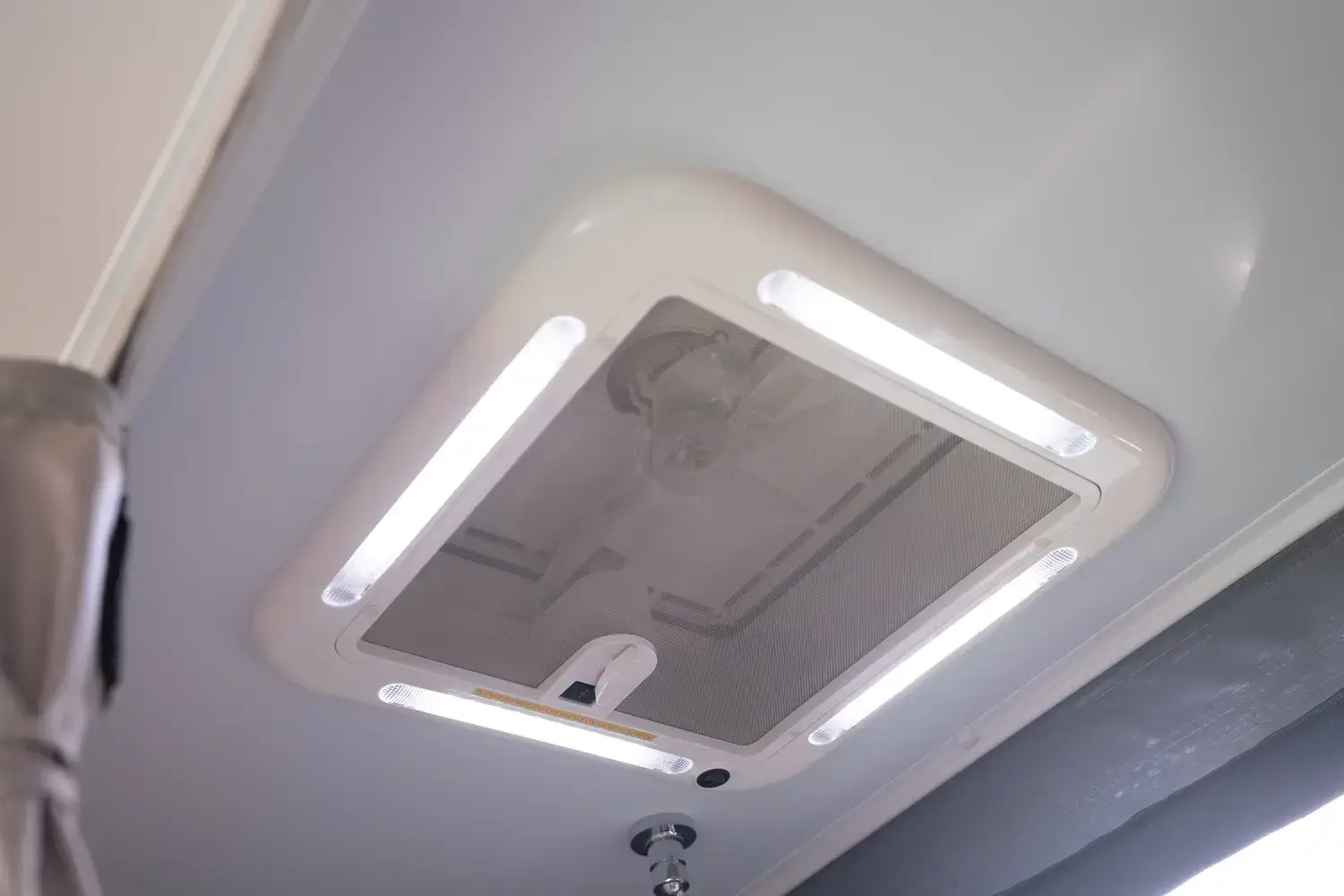

Skylight with 12V lighting and double cassette blind
- Air Conditioner
Dometic Freshjet 4 Essential 2200W air conditioner - Hot Water System
Truma Ultra Rapid Gas Electric 14L Hot Water System - Kitchen
Slide-out external kitchen with Thetford 3-burner gas cooktop and sink with hot and cold water supply
- Battery
300Ah of LiFePRO+® lithium battery capacity - Solar Panels
350W of rooftop solar capacity - Portable Solar
Up to 600W of regulated portable solar via designated power inlet port (portable solar not supplied) - AC Charger
Projecta PM635 Intelli-Grid Gen3 60A AC Charger (All in One Kit) - Battery Charger
Projecta 45A DC-DC battery charger (integrated into Intelli-Grid unit) - Solar Controller
Projecta 45A MPPT solar controller (integrated into Intelli-Grid unit) - Display Screen

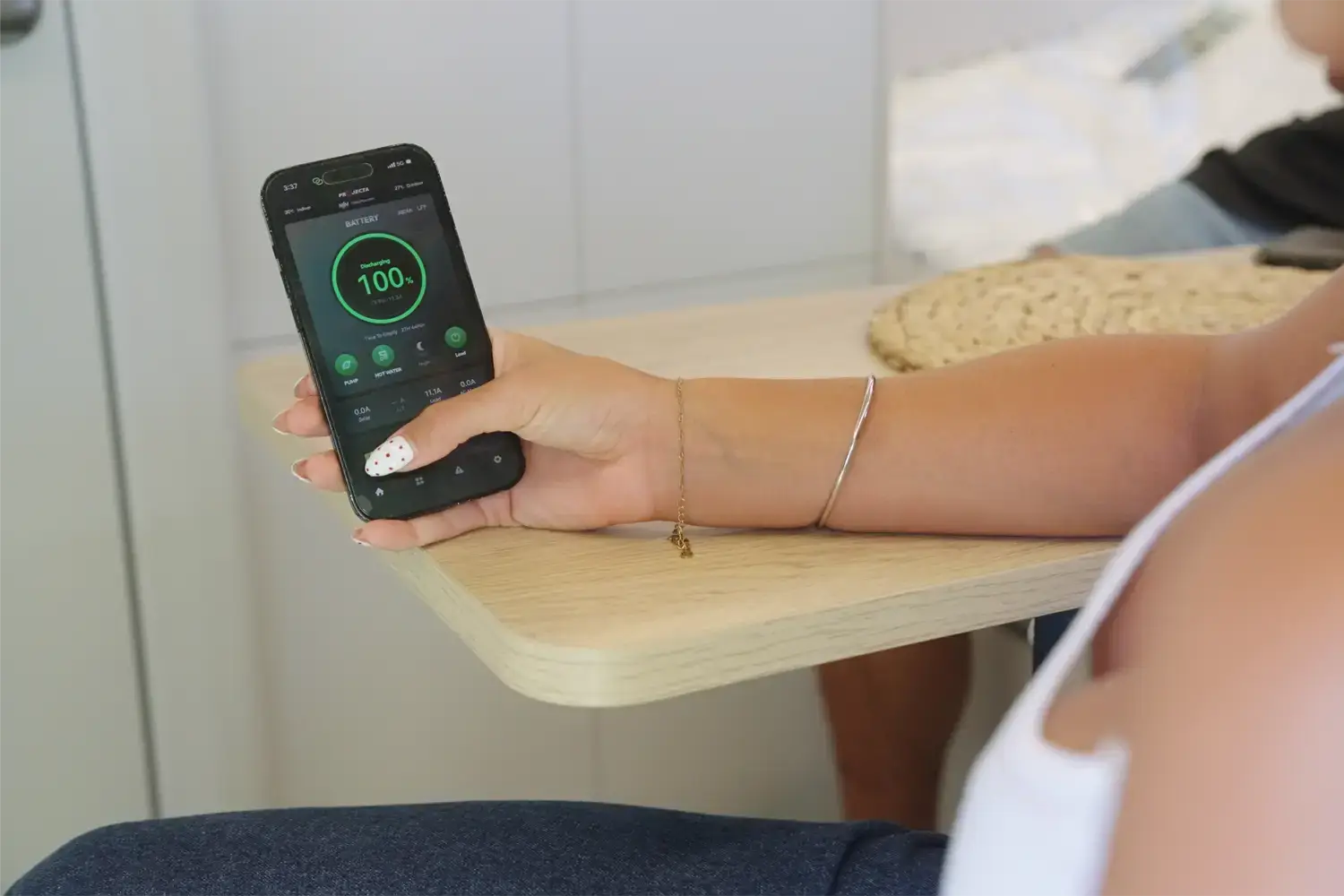

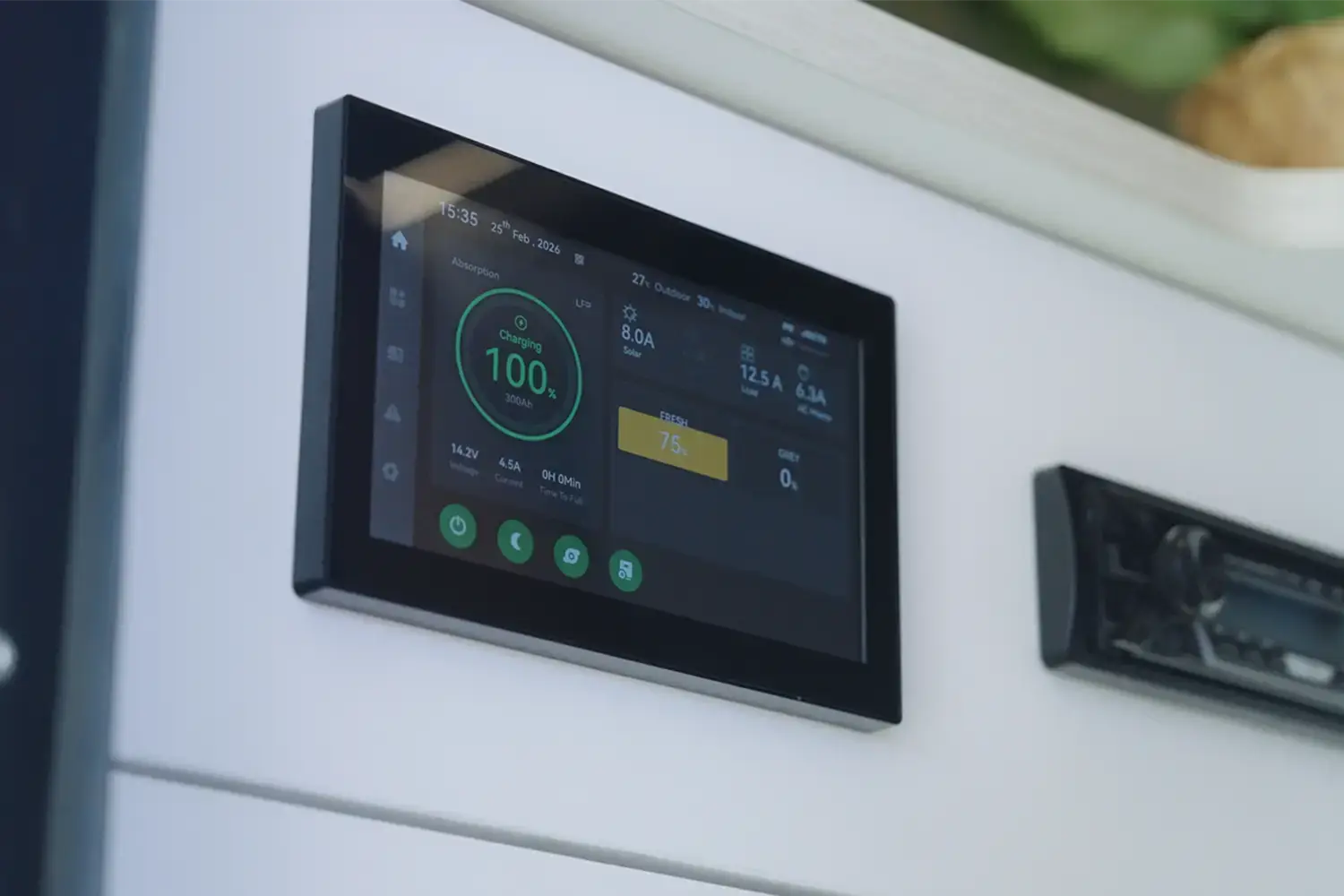

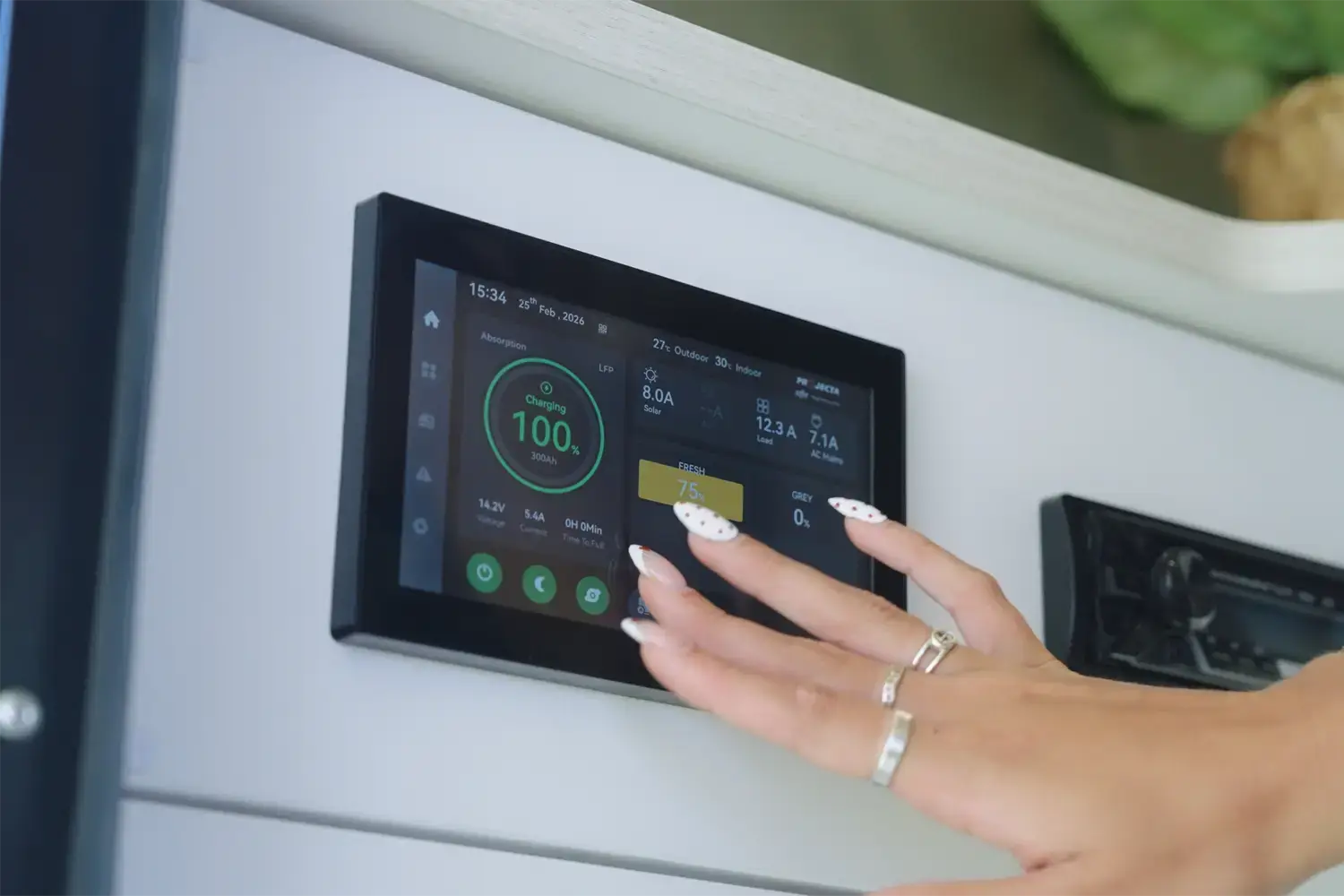

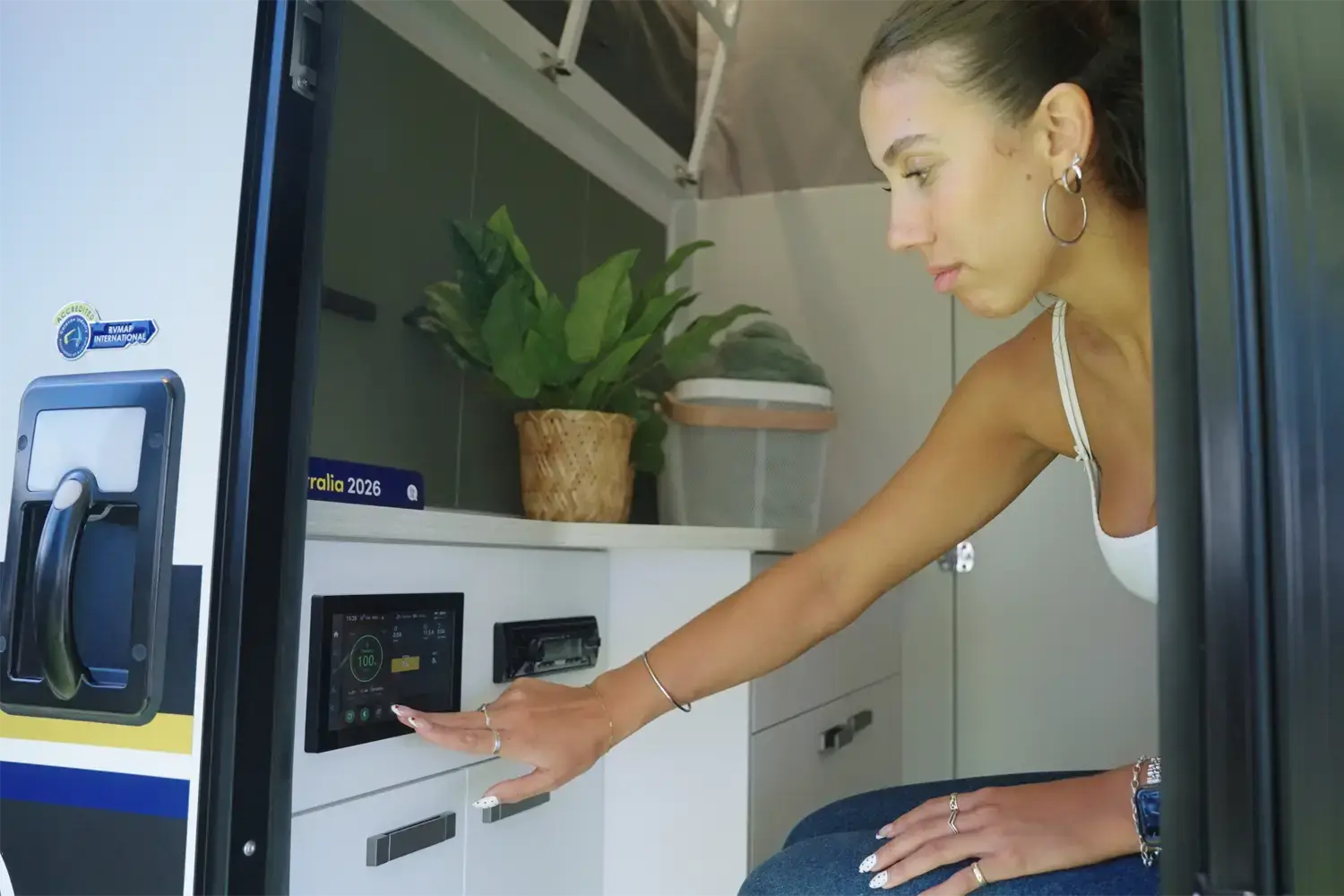

Projecta 7″ display screen with smart device connectivity - Inverter
Projecta PW1600 1600W pure sine wave inverter - Internal Lighting
Internal 12V LED mood lighting - External Lighting
External 12V LED lighting with yellow bug light function - Trailer Plug
12-pin flat trailer plug - Stereo

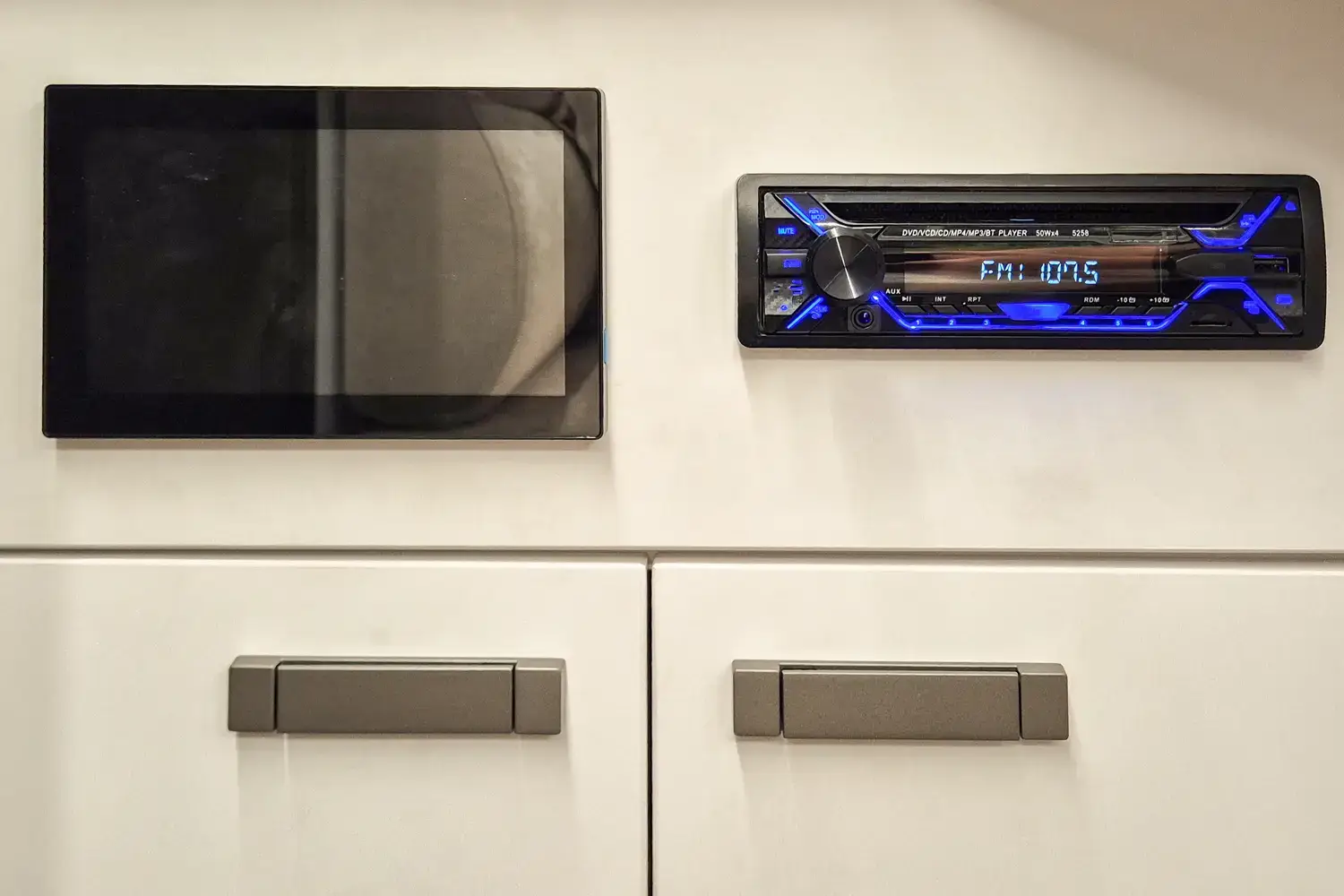

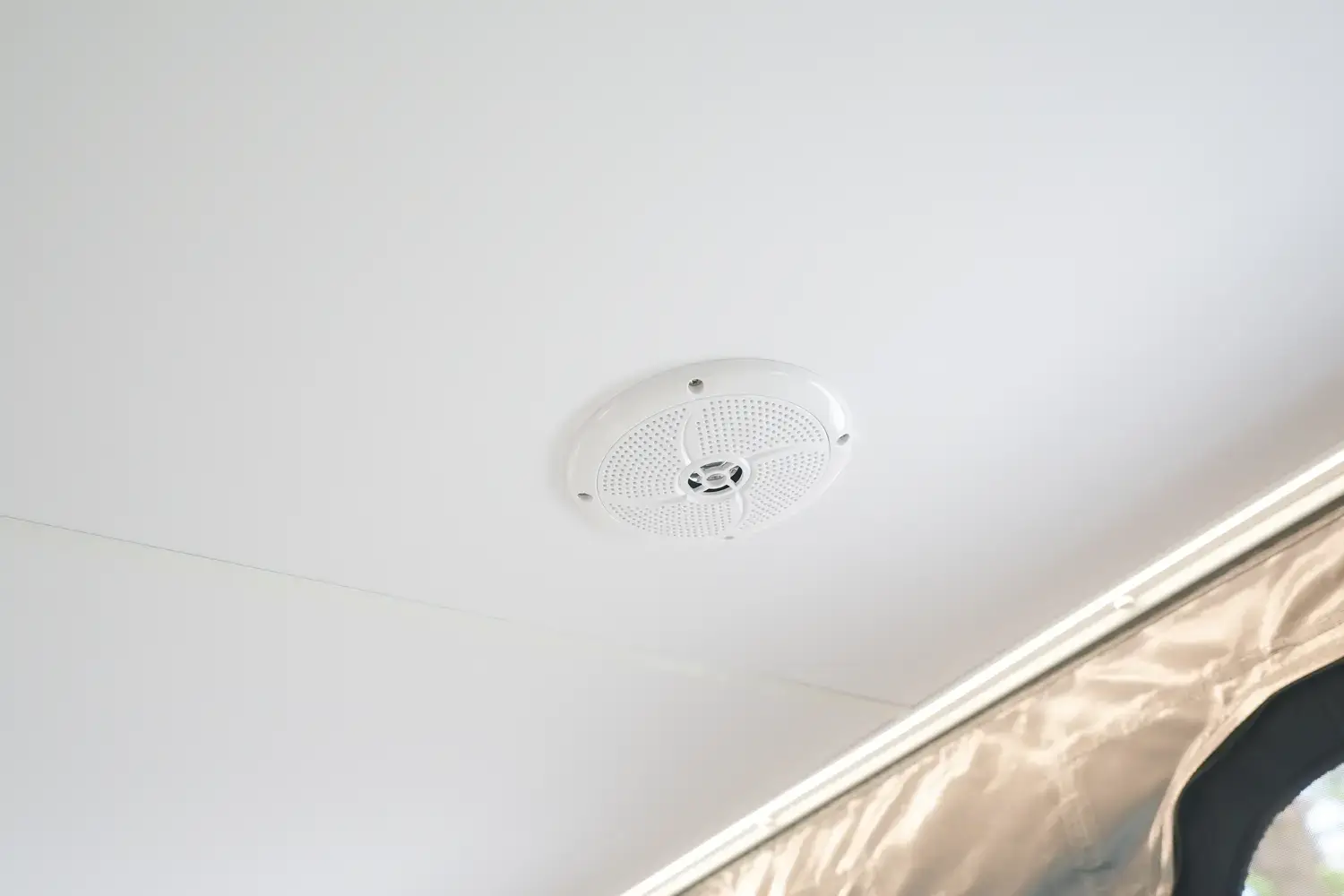

Stereo head unit with internal & external speakers - TV

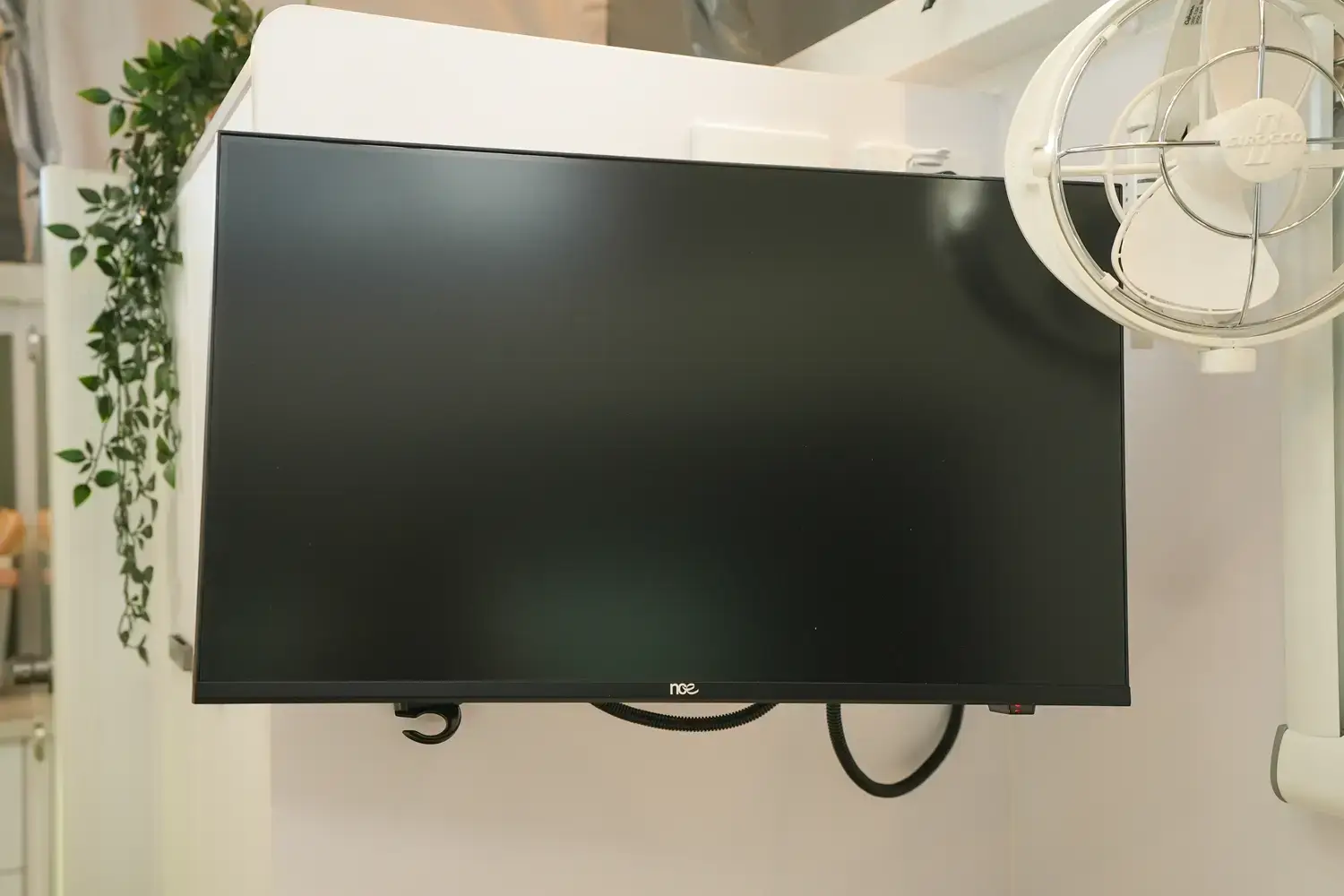

24″ Google Ready Smart TV - Fans

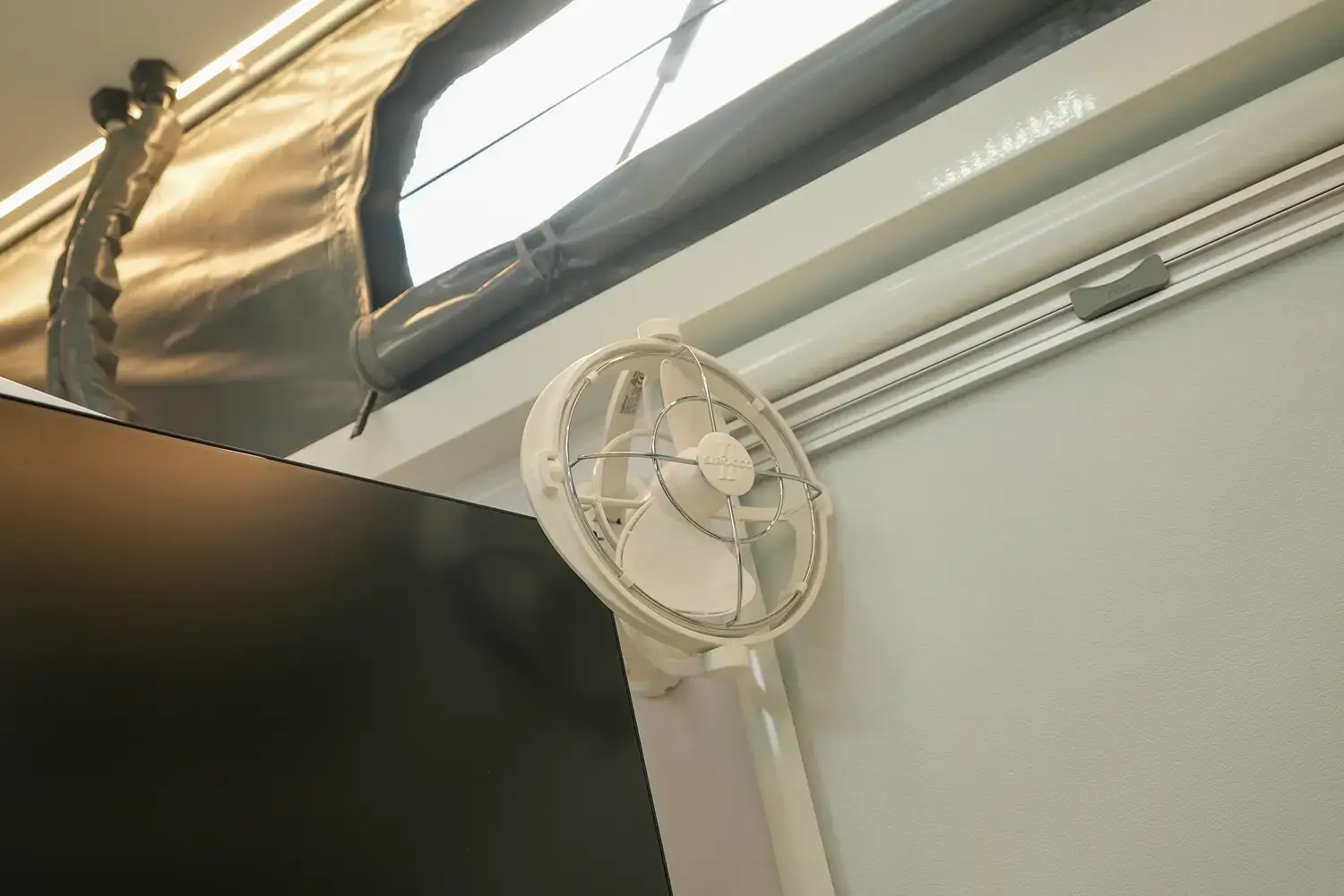

Caframo Sirocco II 12V Fans
- Sockets

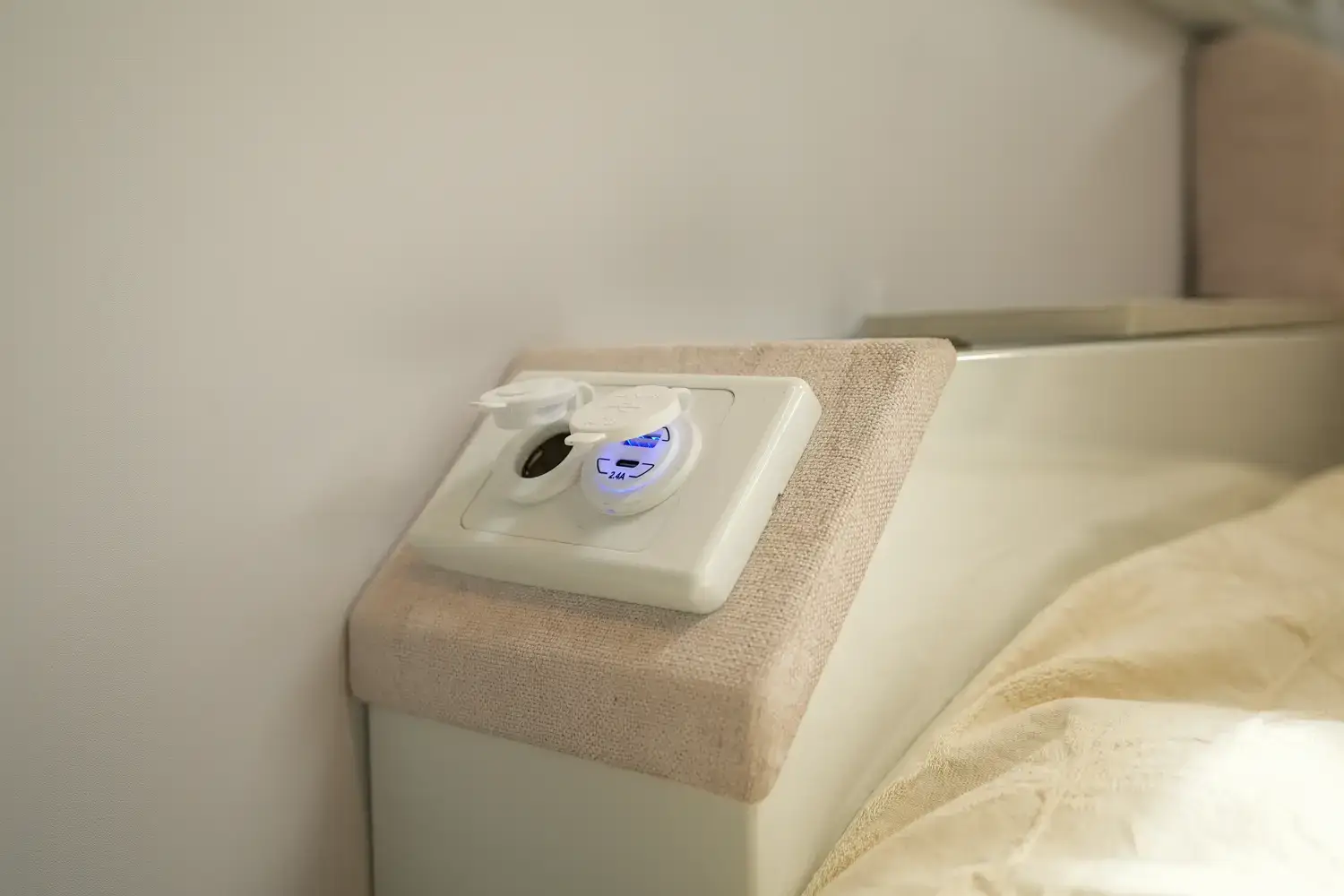

12V accessory sockets - USB Points
USB charging ports - Power Points

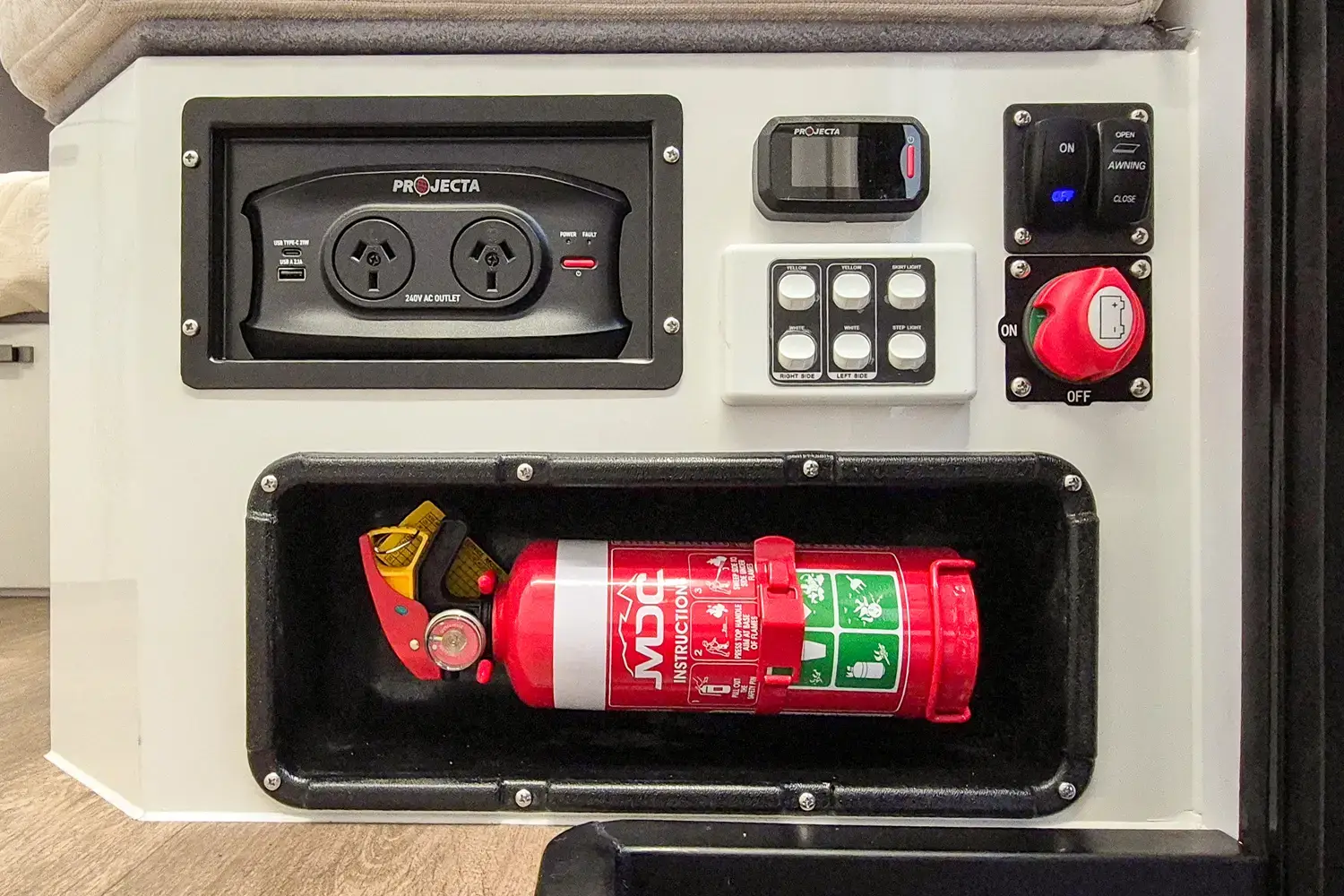

240V GPOs - TV Outlet
F-type TV outlet - Wireless Charger
Wireless charging pads
- Socket
12V accessory socket - USB Points
USB charging ports - Plug
Anderson plug - TV Inlet
F-type TV inlet & through wall cable port
