- GENERAL
- WEIGHTS & RATINGS
- DIMENSIONS
- CHASSIS
- EXTERIOR
- INTERIOR
- MAJOR APPLIANCES
- ELECTRICAL
- INTERNAL POWER OUTLETS
- EXTERNAL POWER OUTLETS
- Caravan

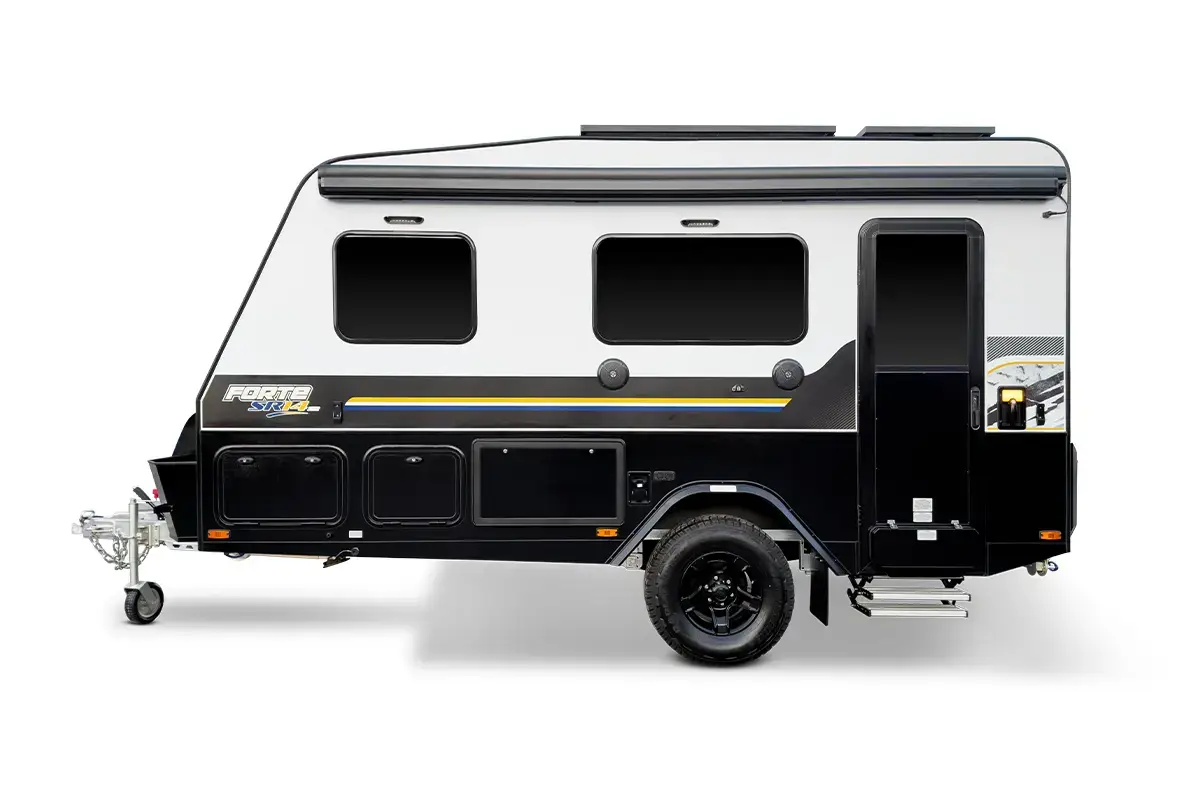

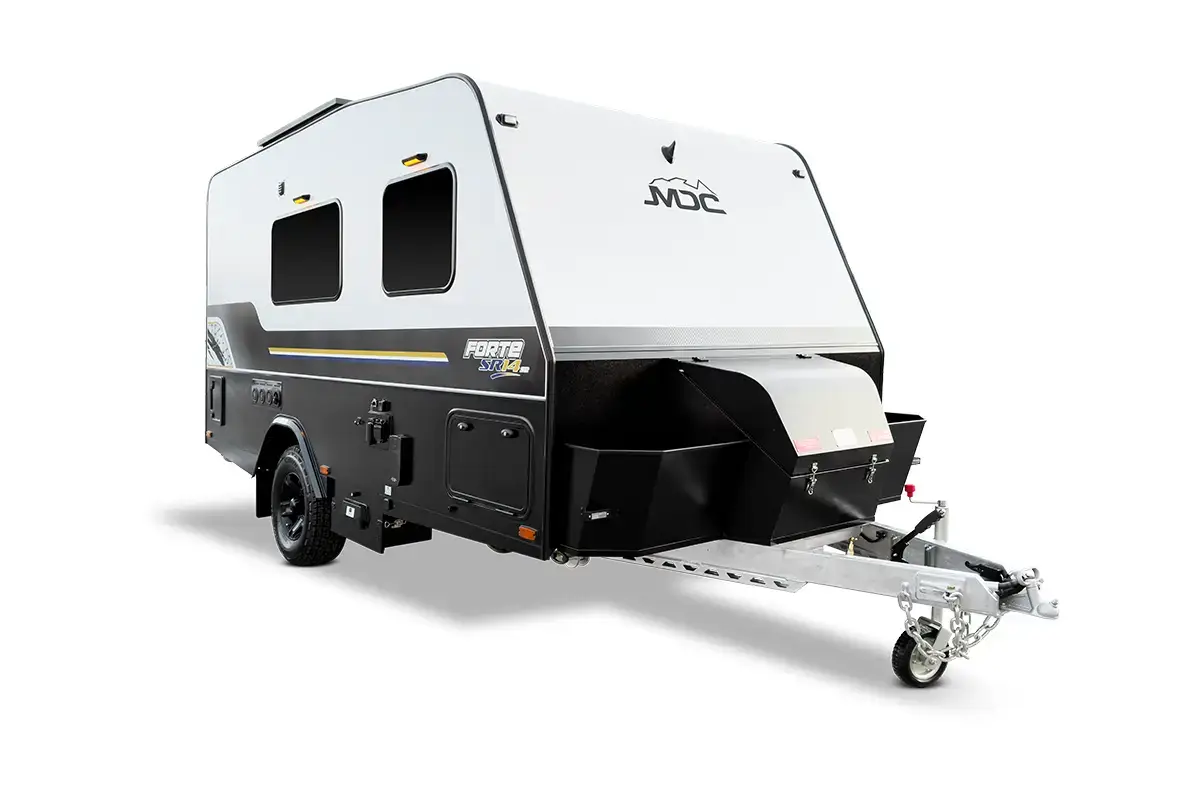

14′ On-road Caravan - Sleeps

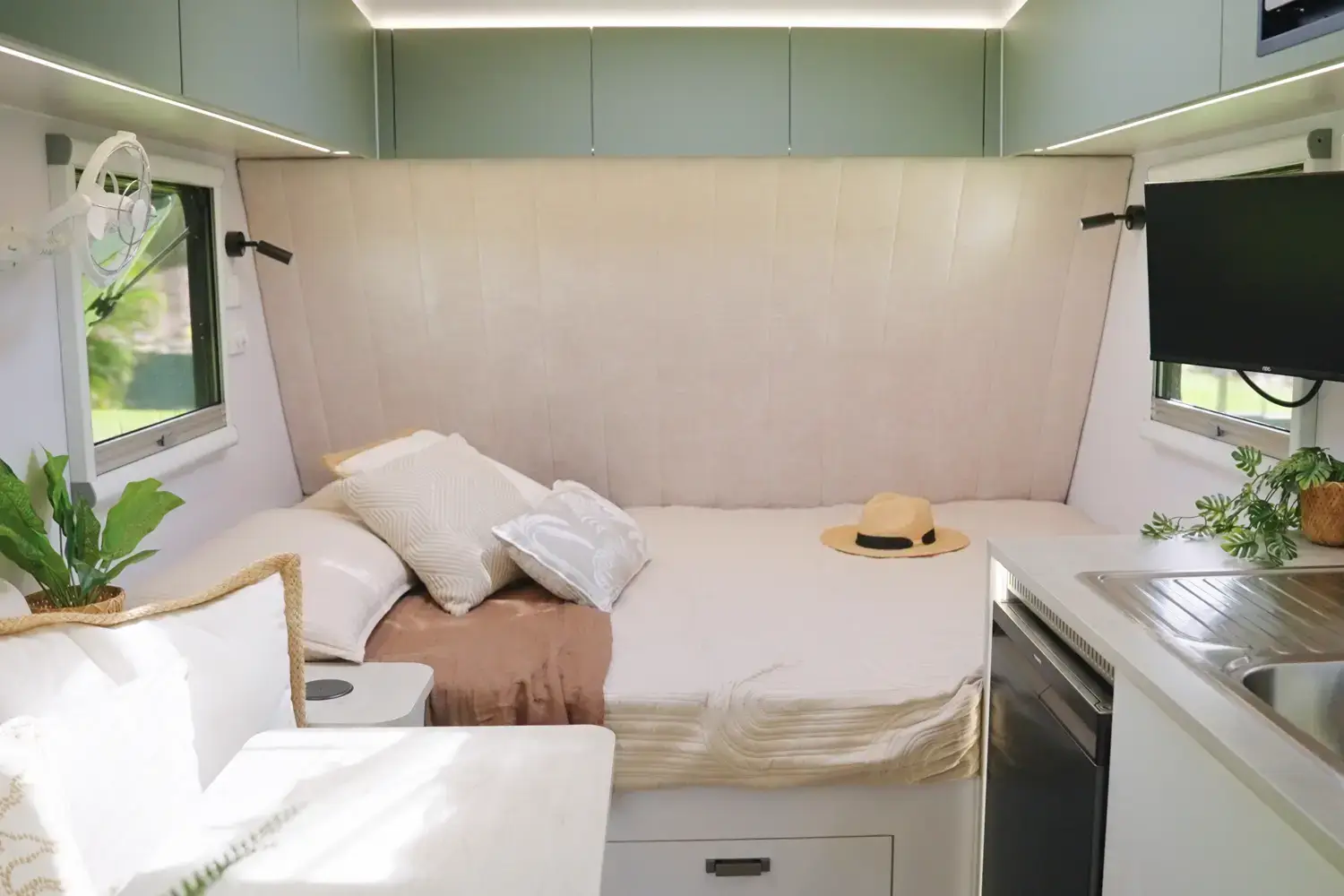

2 Berth - Main Bed
1 x Queen size east/west bed - Mattress Size
2100mm L x 1500mm W x 150mm H - Chassis Finish
Hot dip galvanised chassis + aluminium composite panel throughout
- Tare Weight
Approx. 1975kg - Tow Ball Weight
Approx. 170kg - ATM Rating
2600kg - Payload
Approx. 625kg
- Open
6159mm L x 4350mm W x 2986mm H - Closed (Travel Size)
6159mm L x 2350mm W x 2986mm H
- Coupling
Trojan 50mm Ball Coupling - Jockey Wheel
10′′ swing up and lockable Jockey Wheel - Wheels
16″ Alloy wheels with 265/75 Goodride A/T tyres - Suspension
Independent coil spring trailing arm suspension with dual shock absorbers (Single Axle) - Brakes
12″ Electric drum brakes - Drop Legs
4 x heavy duty lockable and adjustable drop down stabiliser legs - Jack
CASP 1500kg high-lift scissor jack
- Awning
Electric cassette awning - Gas Bottles
2 x 9kg gas cylinder holders in enclosed compartment - Fresh & Grey Water
2 x 80L fresh water & 1 x 80L grey water - Water Pump
12V electric marine diaphragm pump water delivery - Table Type
Wall-mounted drop-down servery table - Camera & Monitor
Wireless rear view camera + 7″ monitor - ESC
Tuson TSC-1000 – electronic stability control with asymmetric braking
- Cabinetry

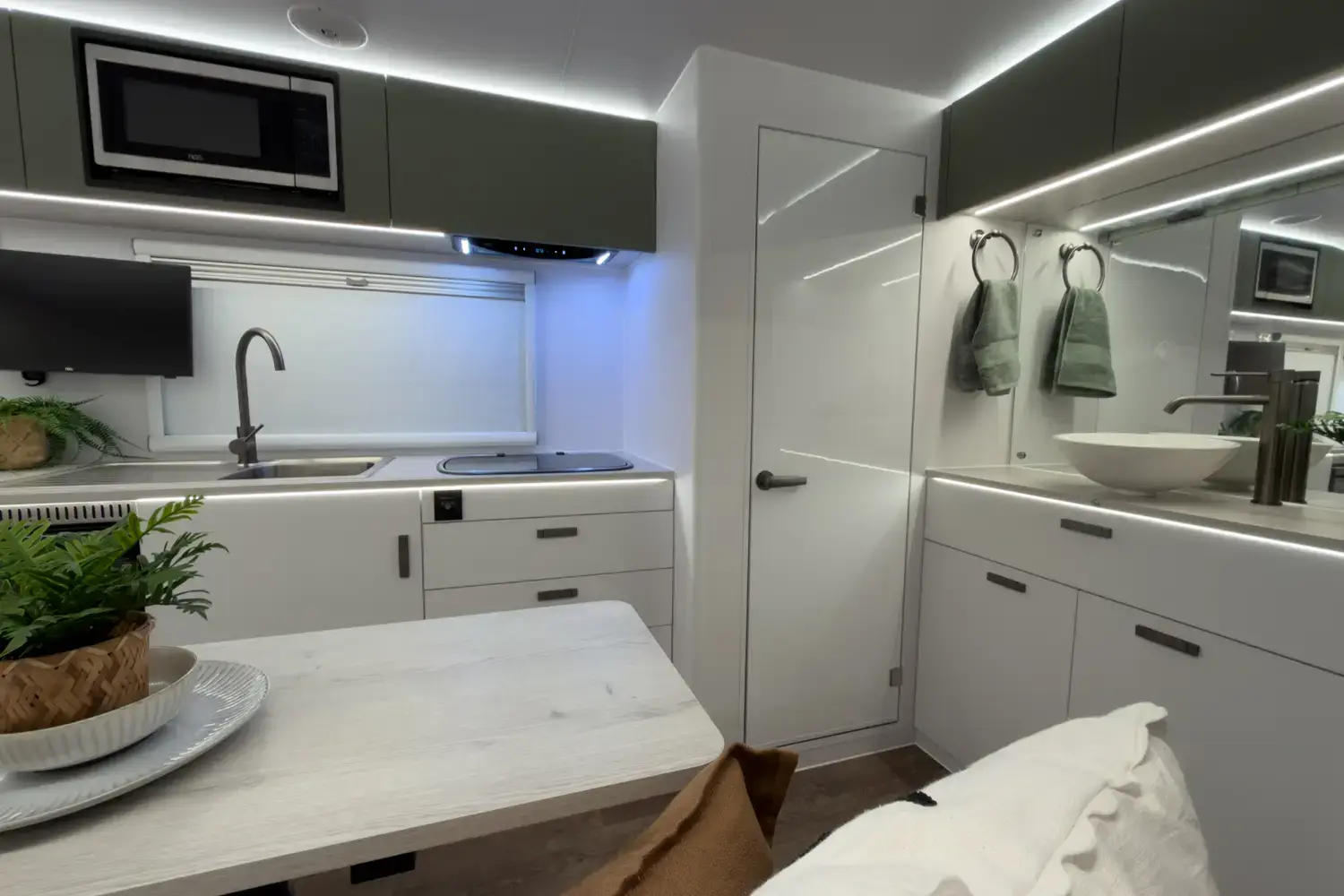

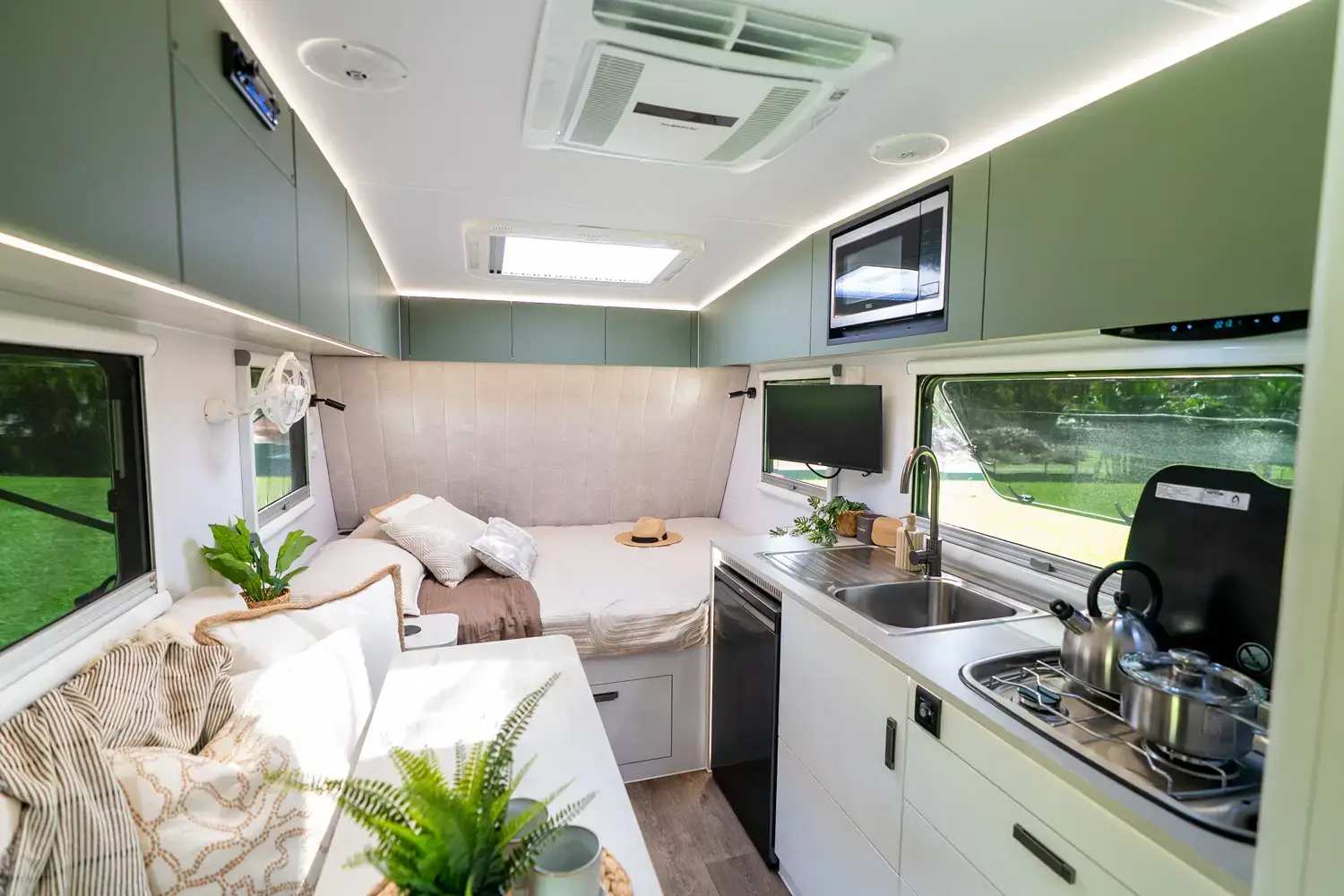

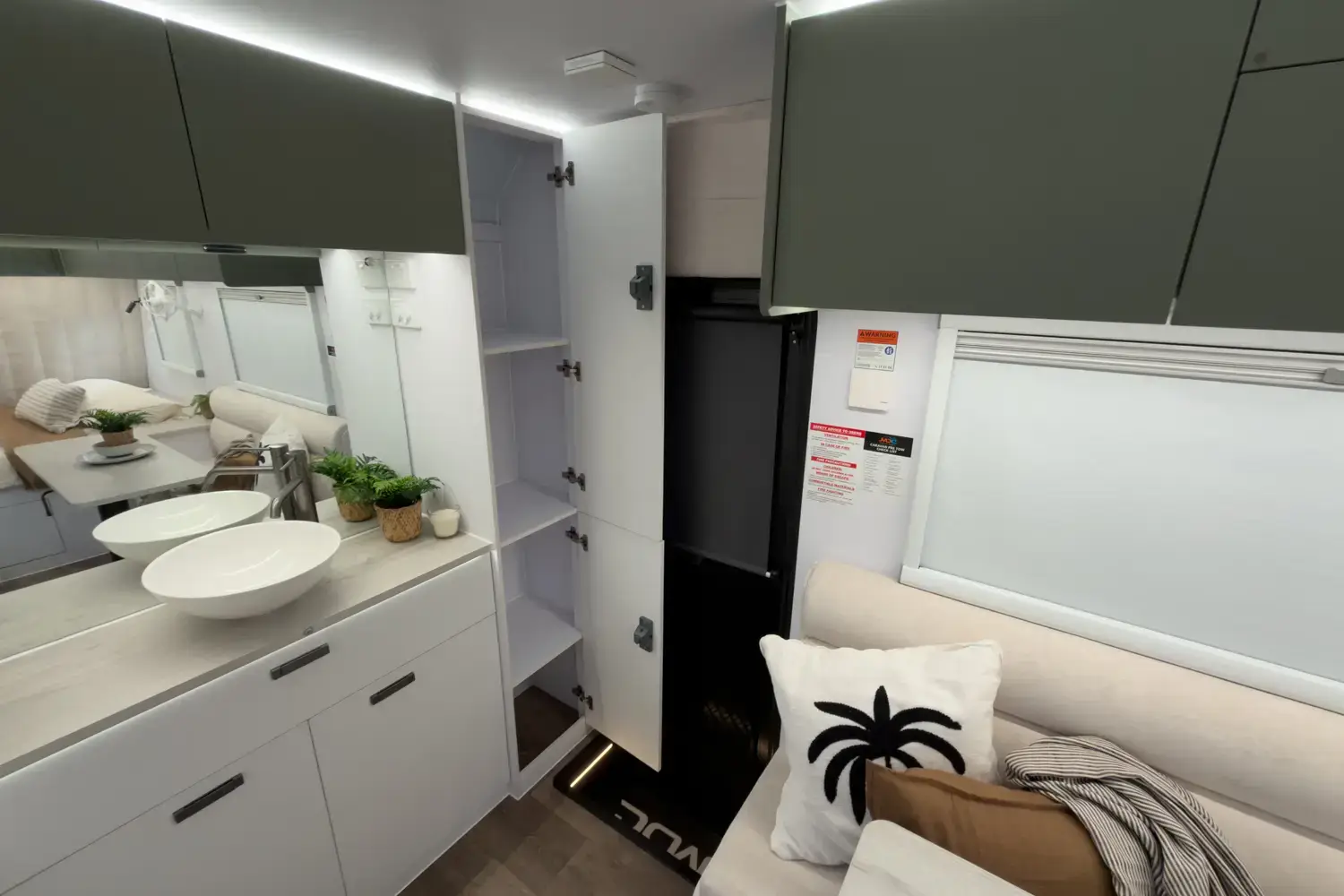

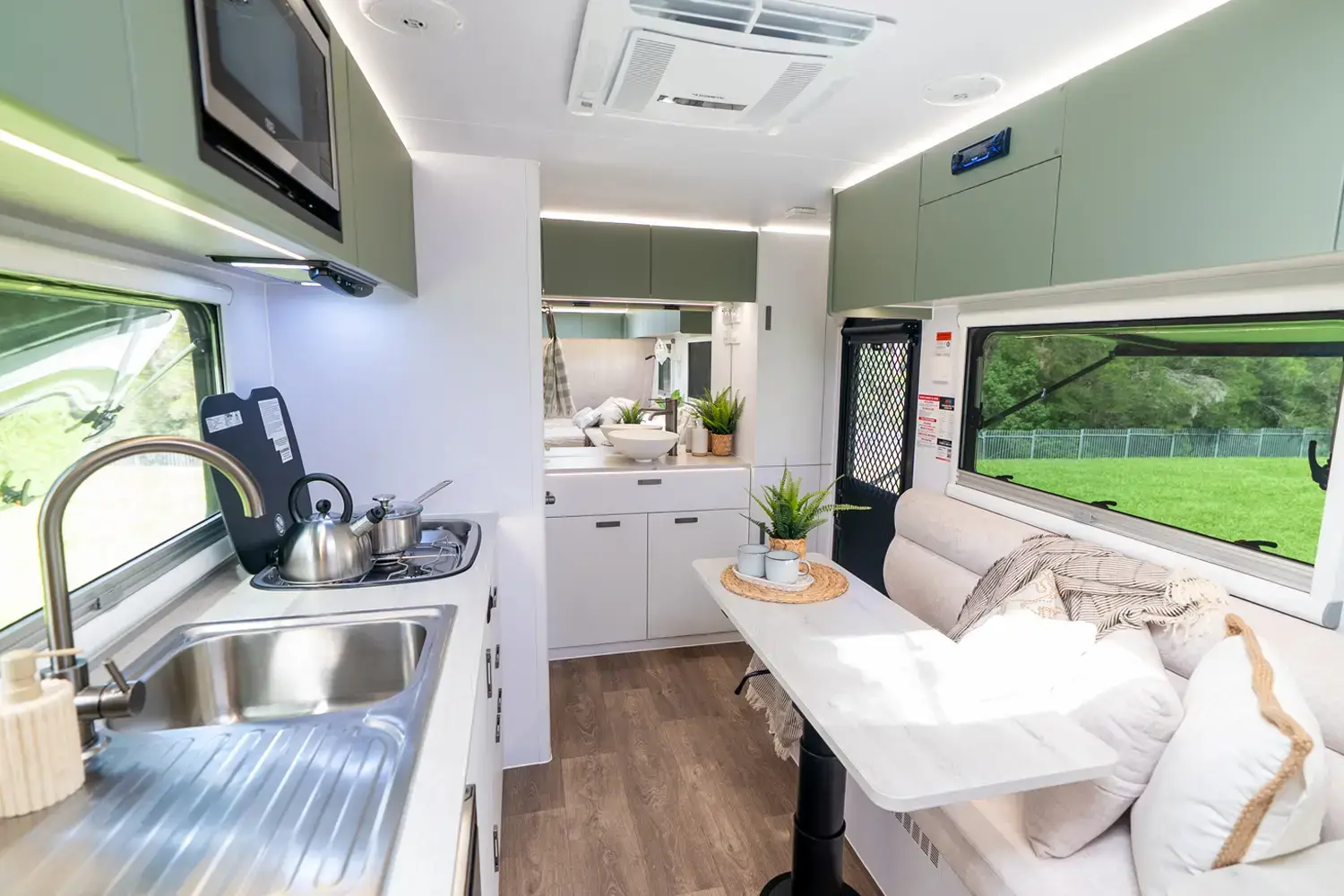

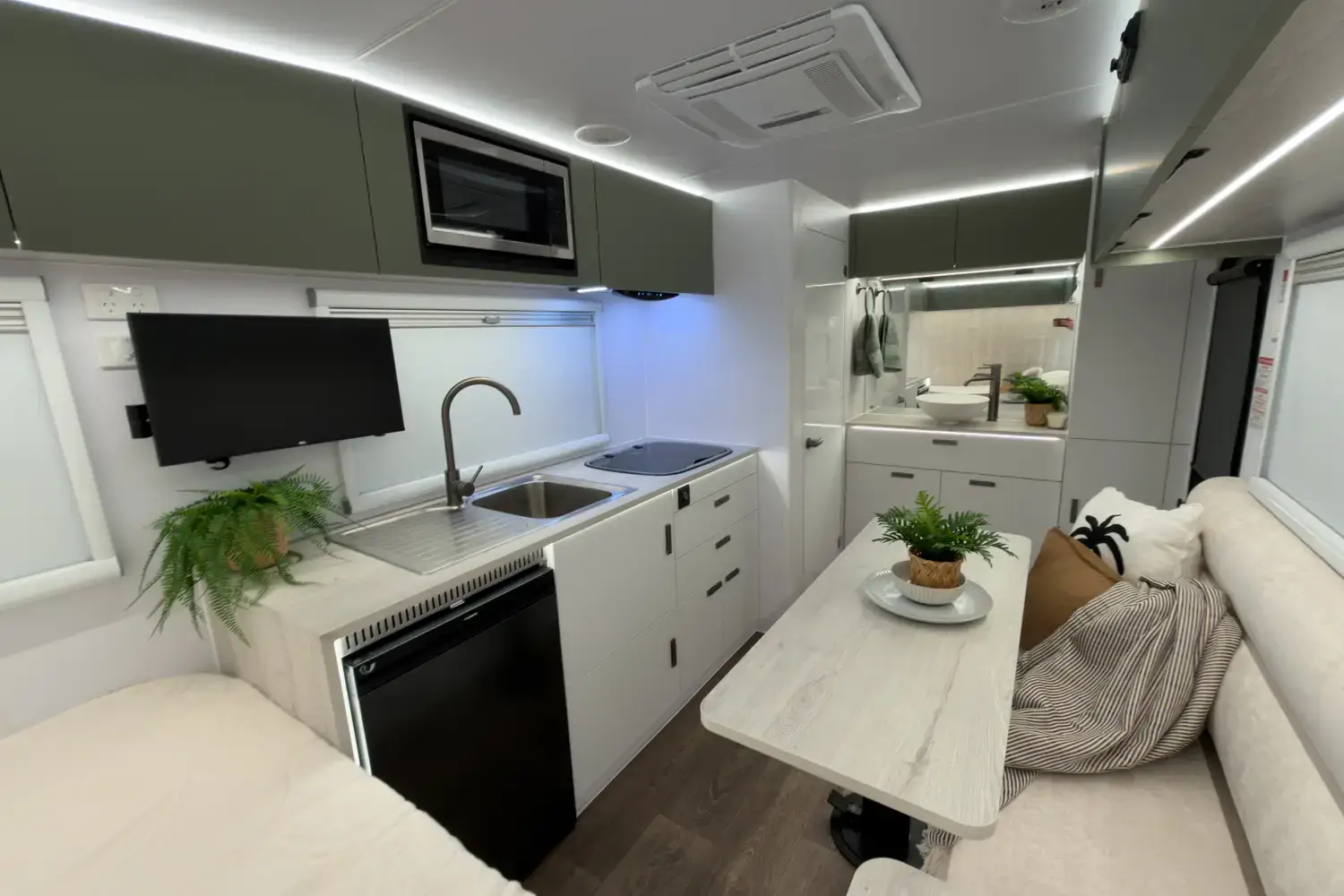

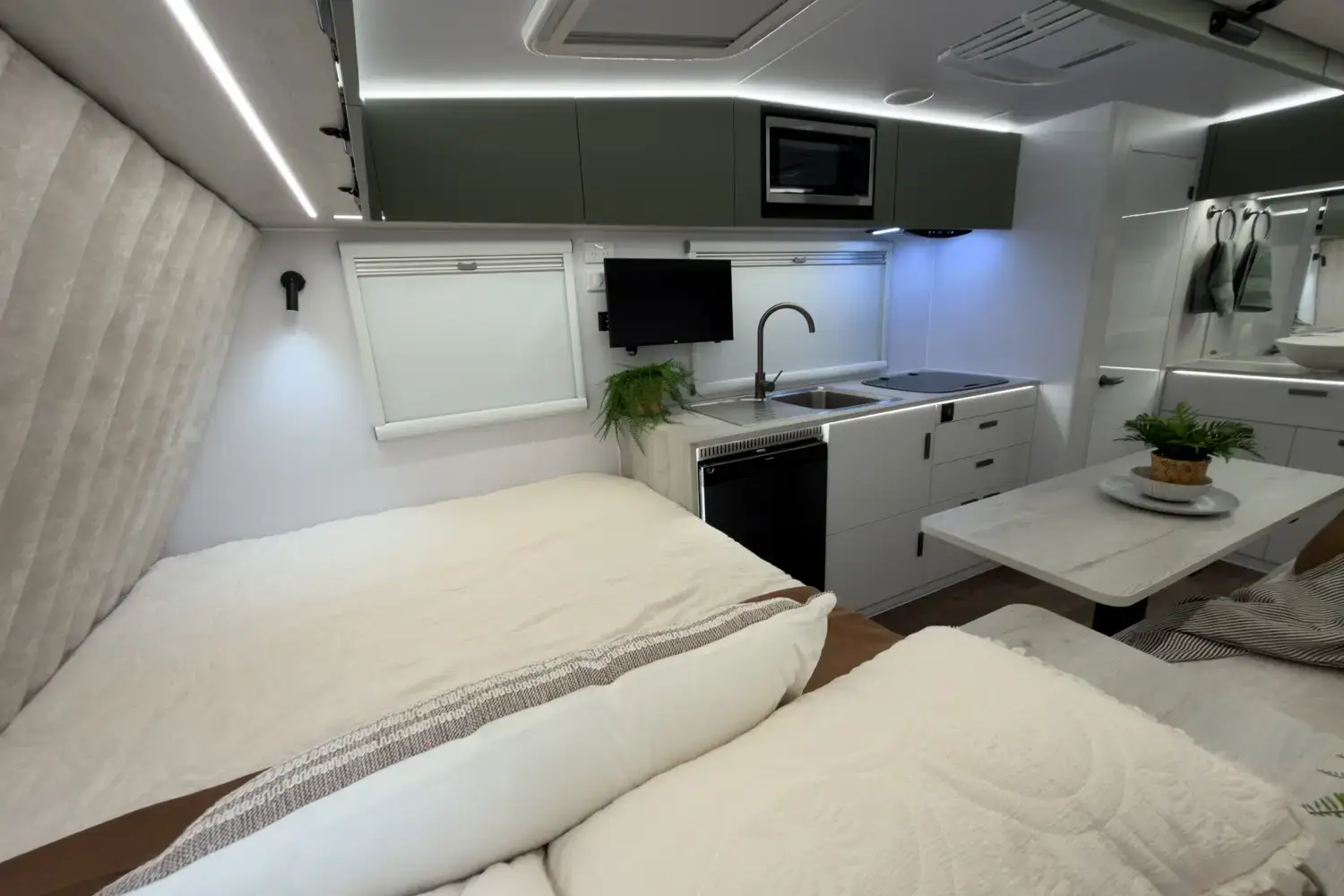

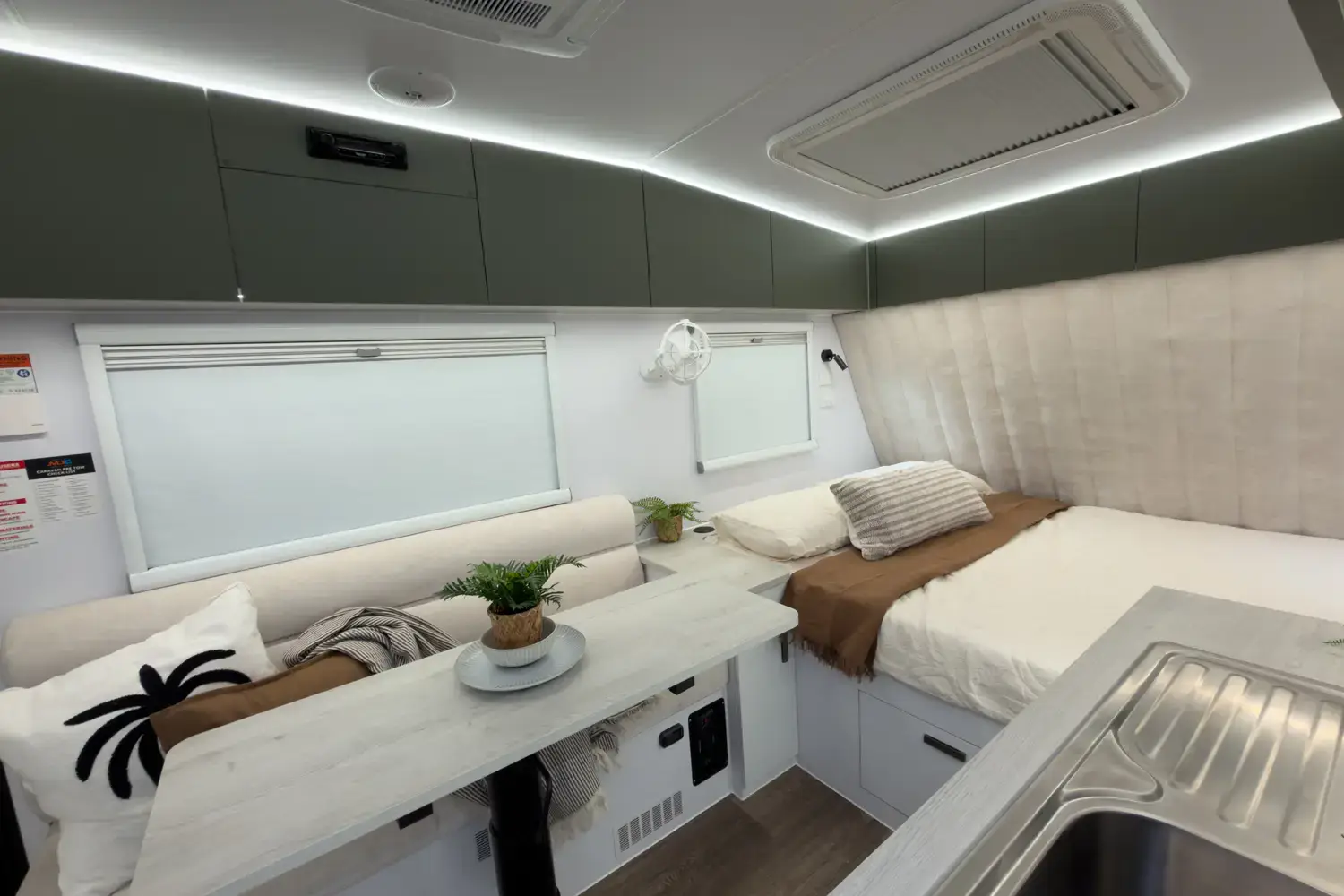

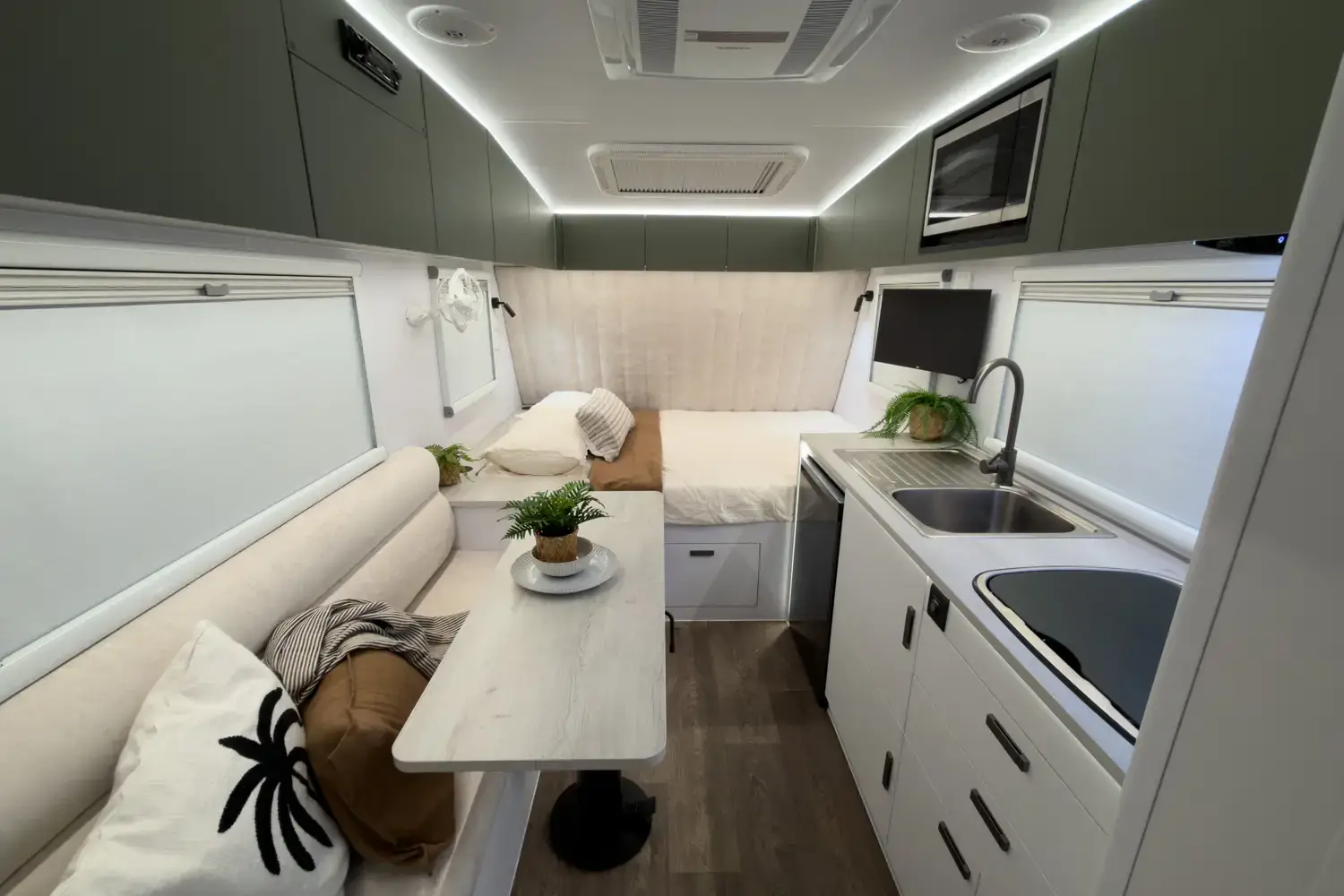

Matte white & sage green cabinetry paired with oak benchtops, heritage oatmeal upholstery, and gunmetal grey fixtures - Ensuite

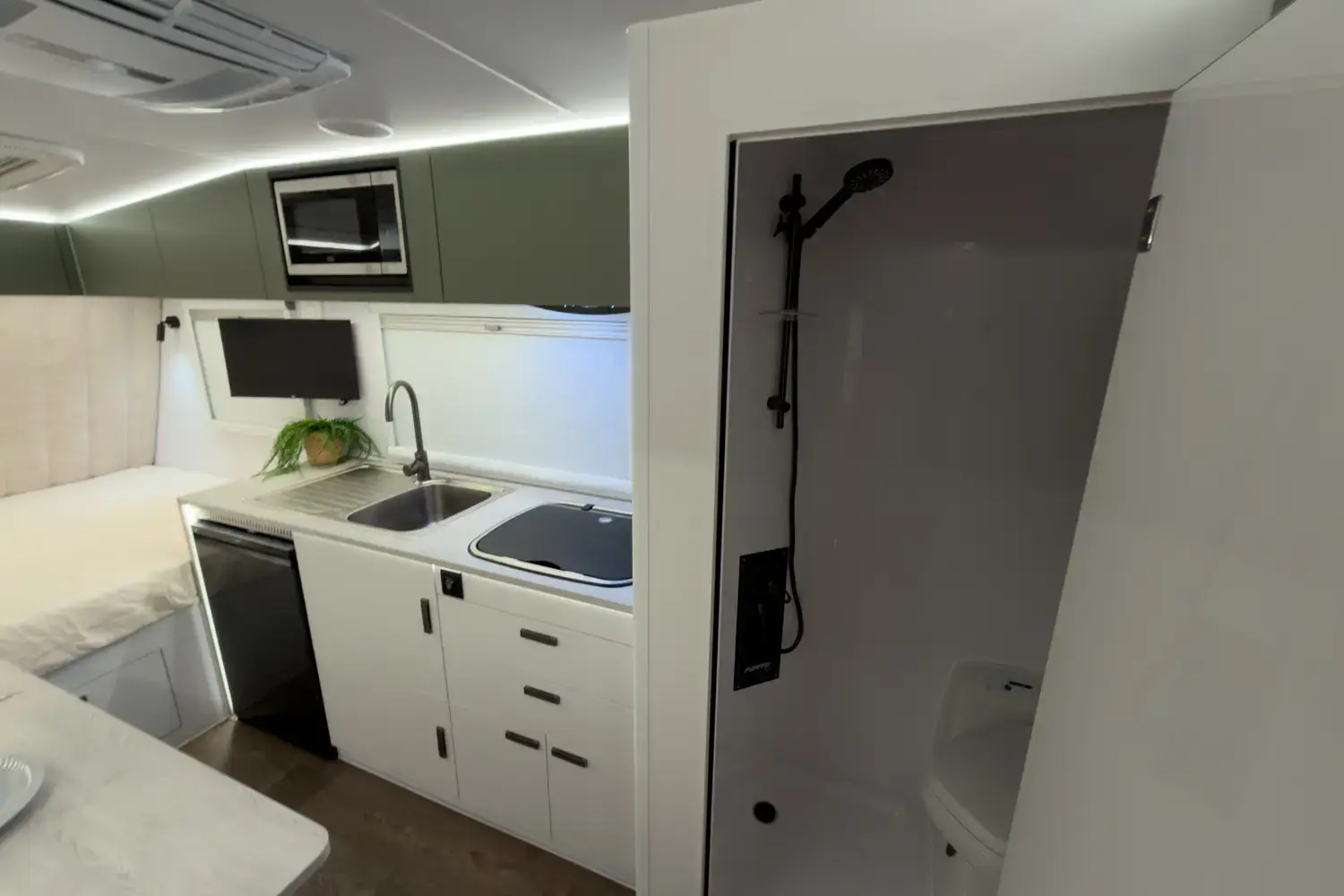

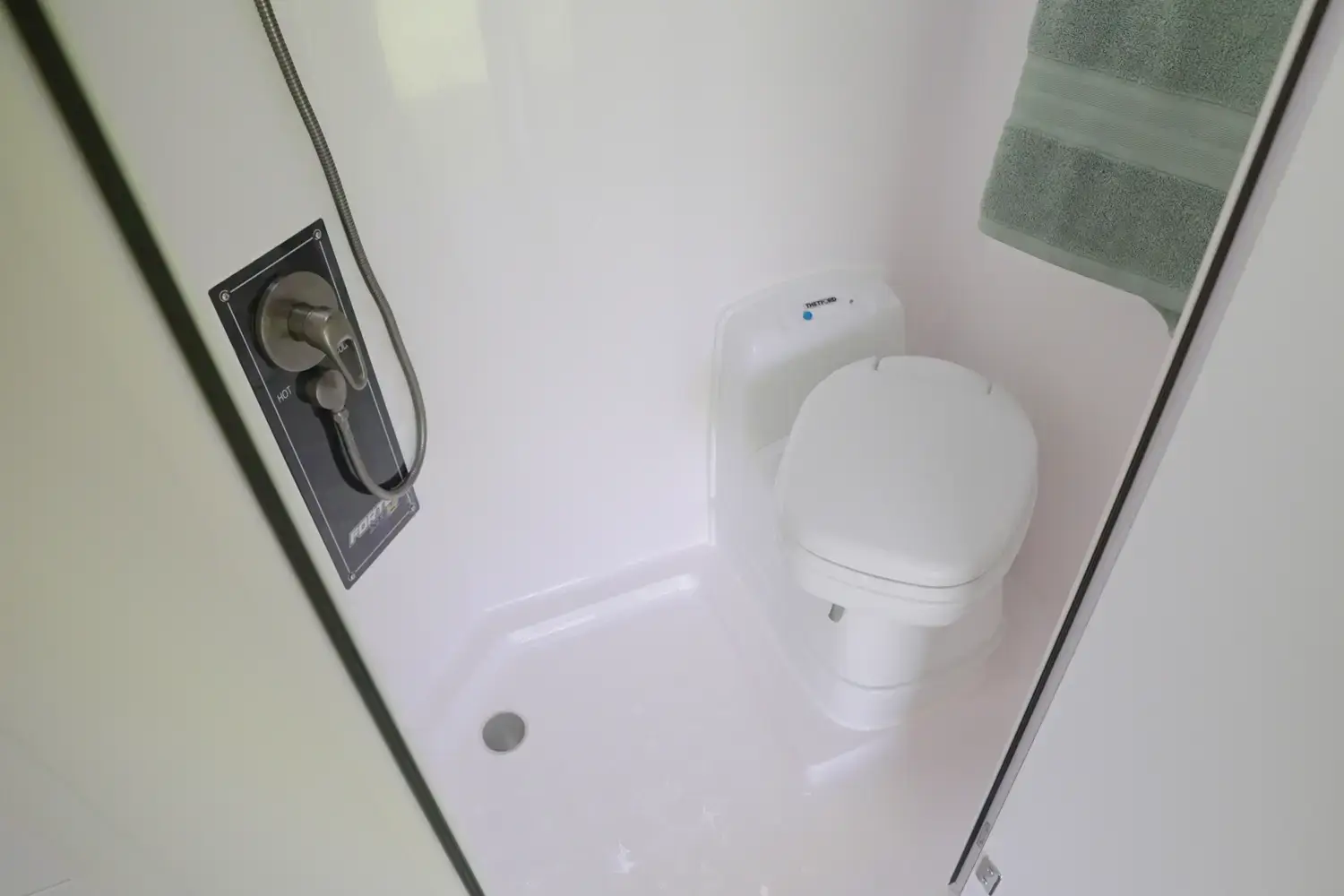

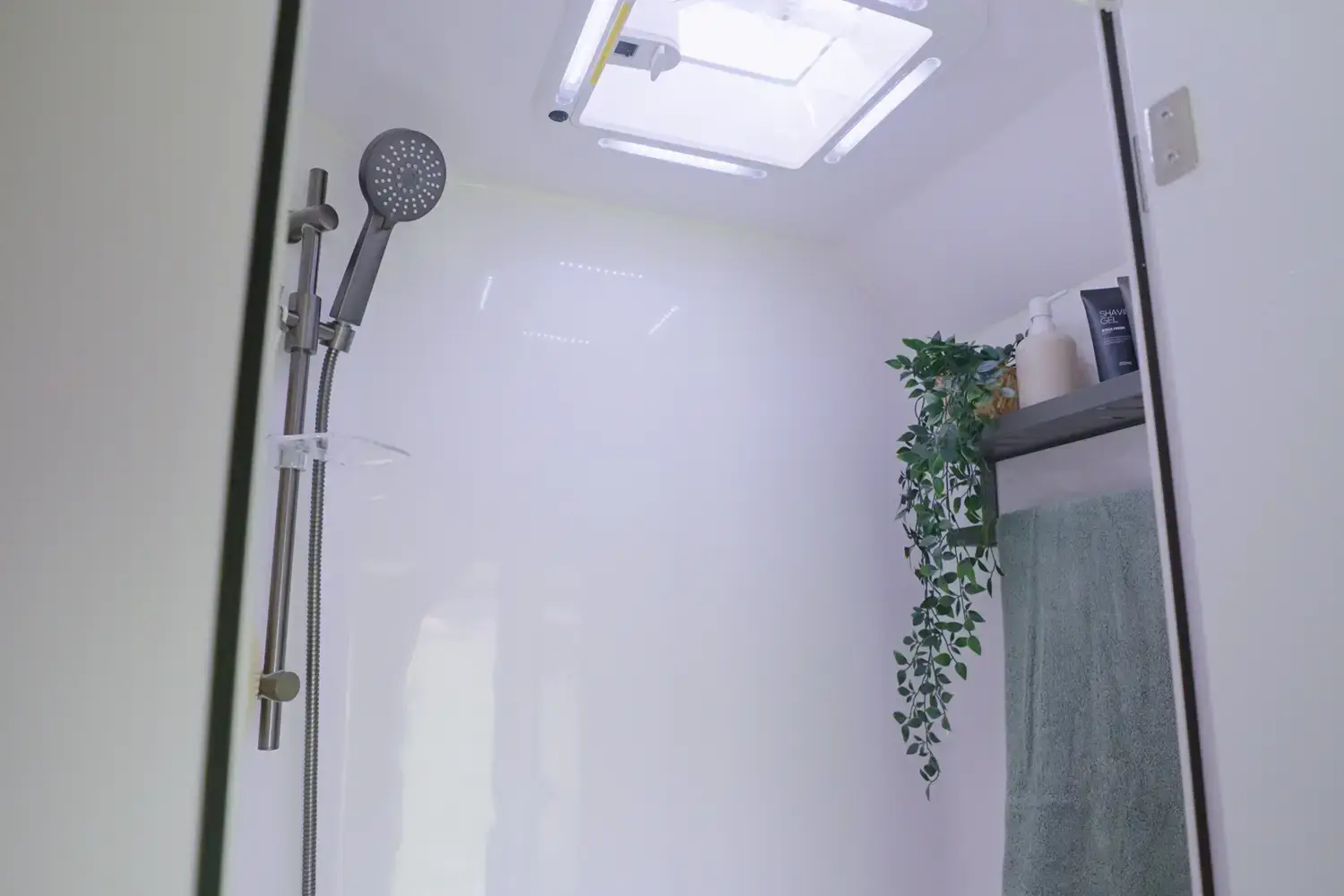

Internal combination ensuite with Thetford cassette toilet - Seating Configuration

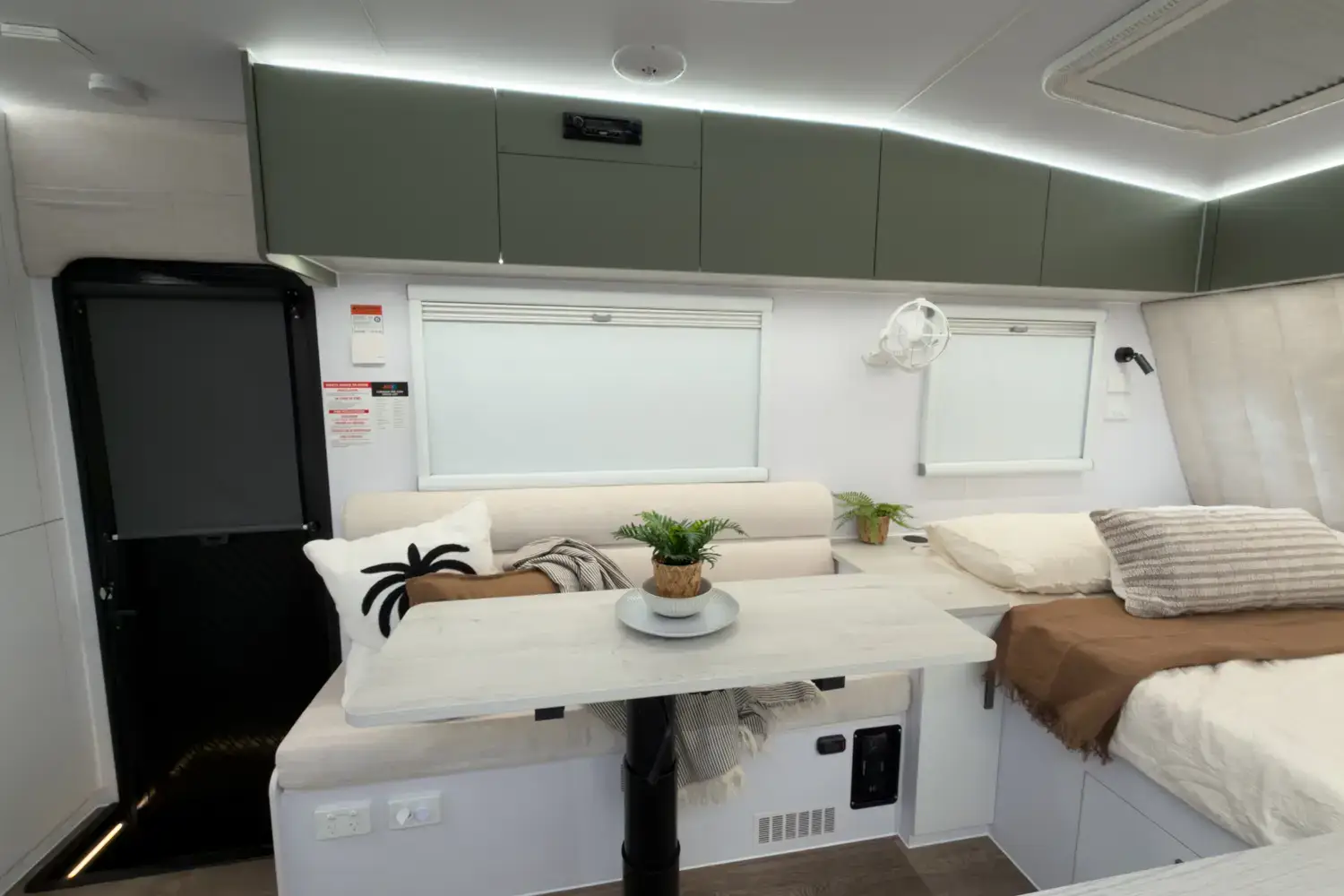

Straight lounge - Windows

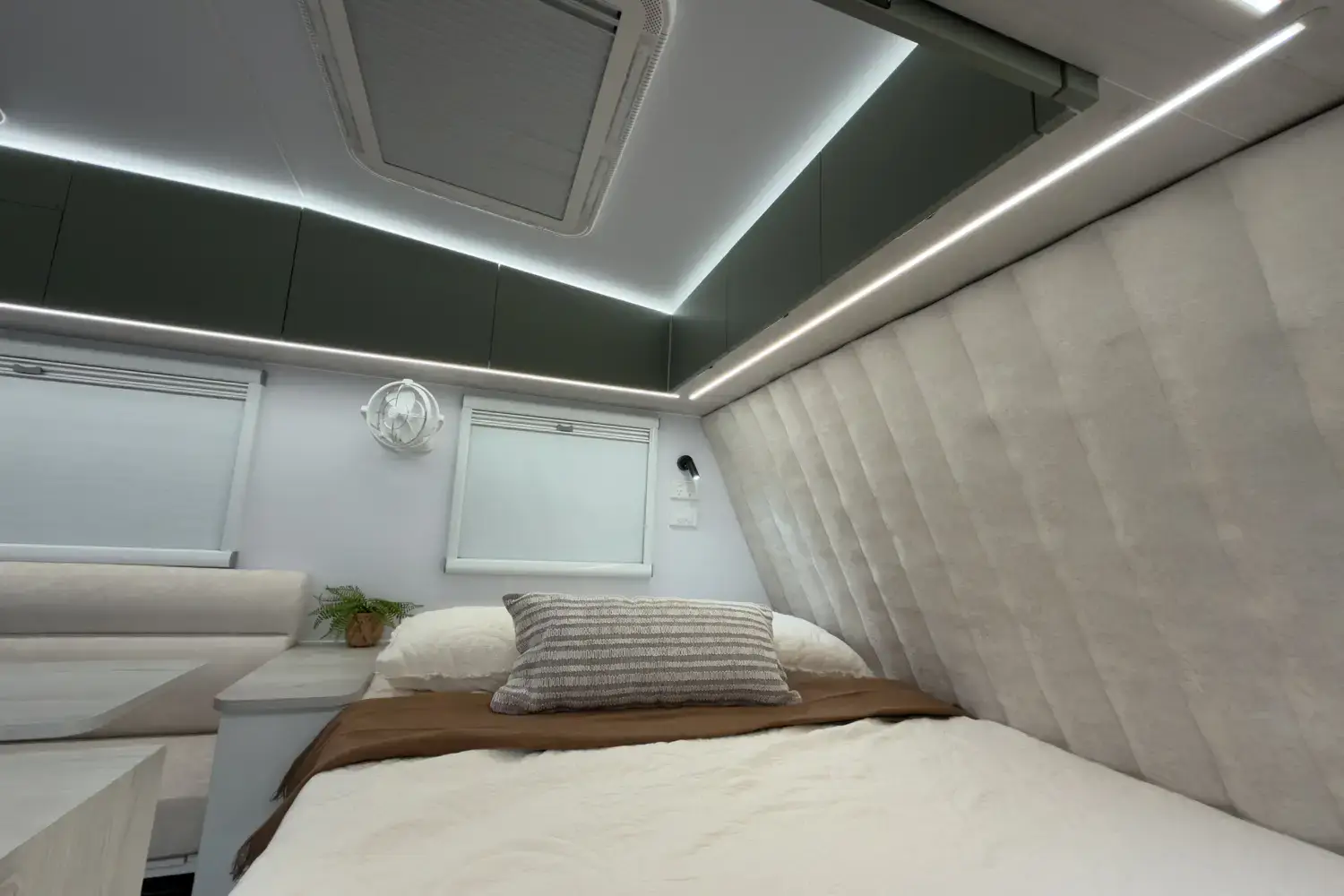

Double acrylic glazed windows and double cassette blind with flyscreen and block-out - Roof Hatch
Skylight with 12V lighting and double cassette blind
- Air Conditioner
Dometic Freshjet 4 Essential 2200W air conditioner - Hot Water System
Truma Ultra Rapid Gas Electric 14L Hot Water System - Fridge

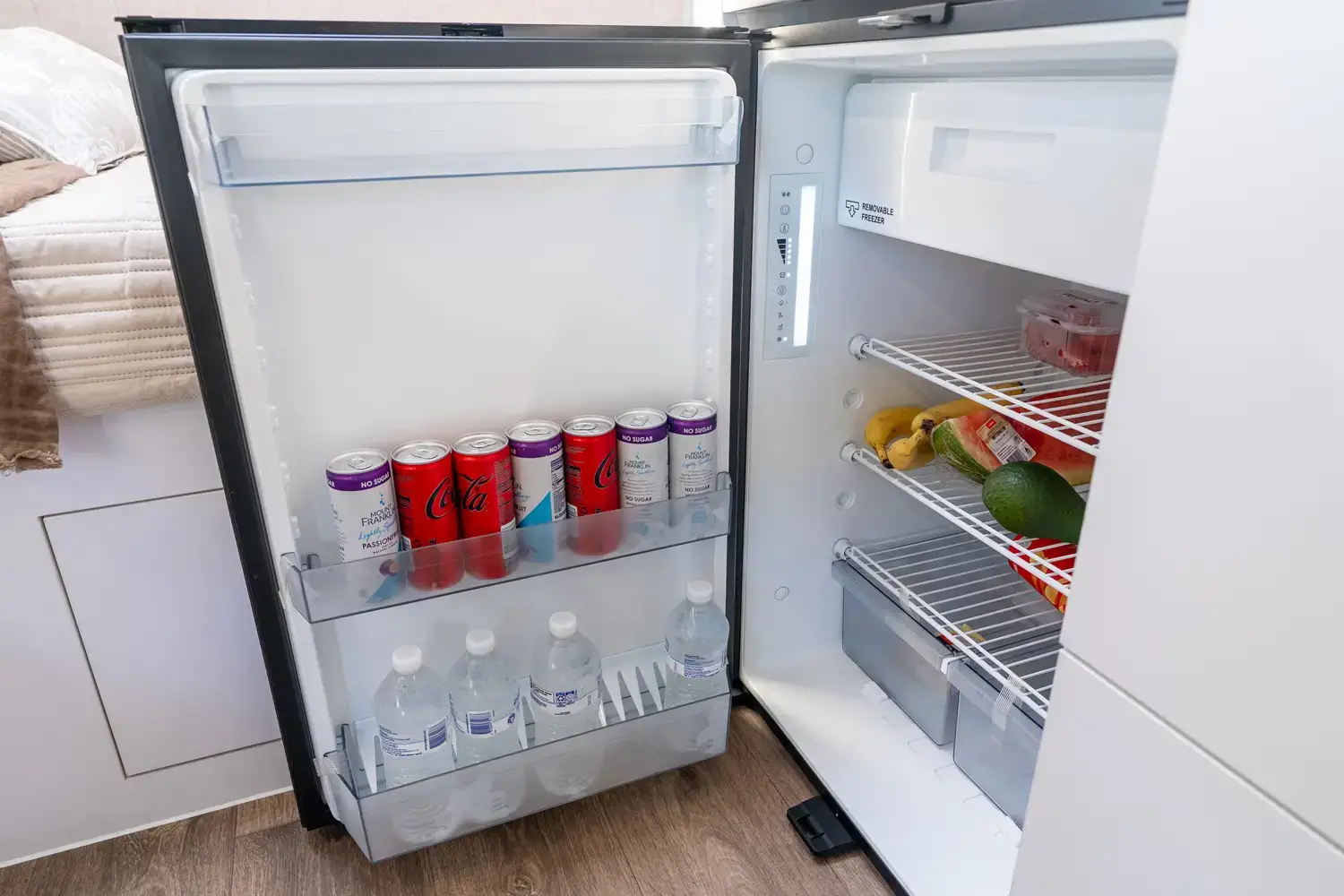

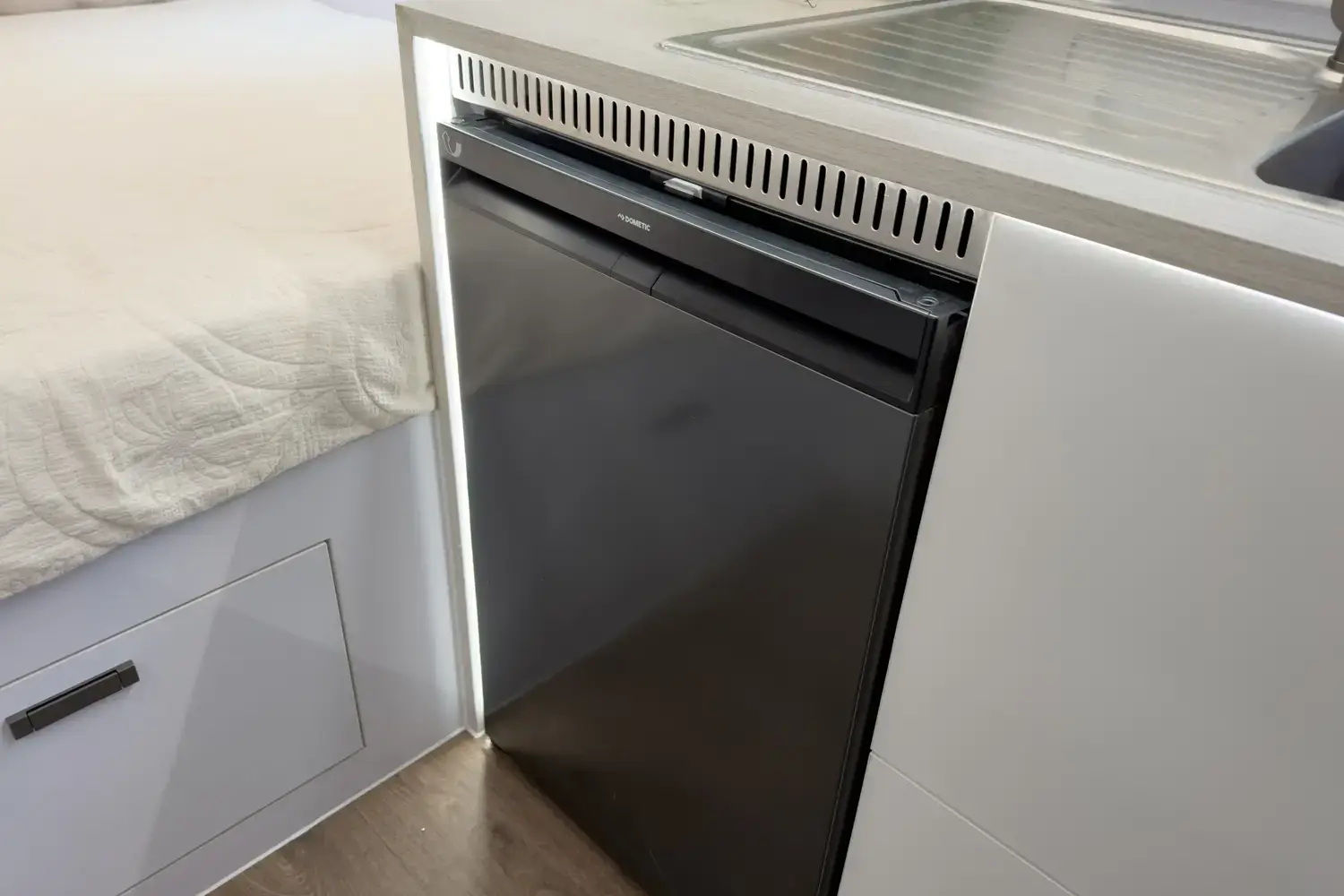

Dometic NRX130 130L Compressor Fridge - Cooktop

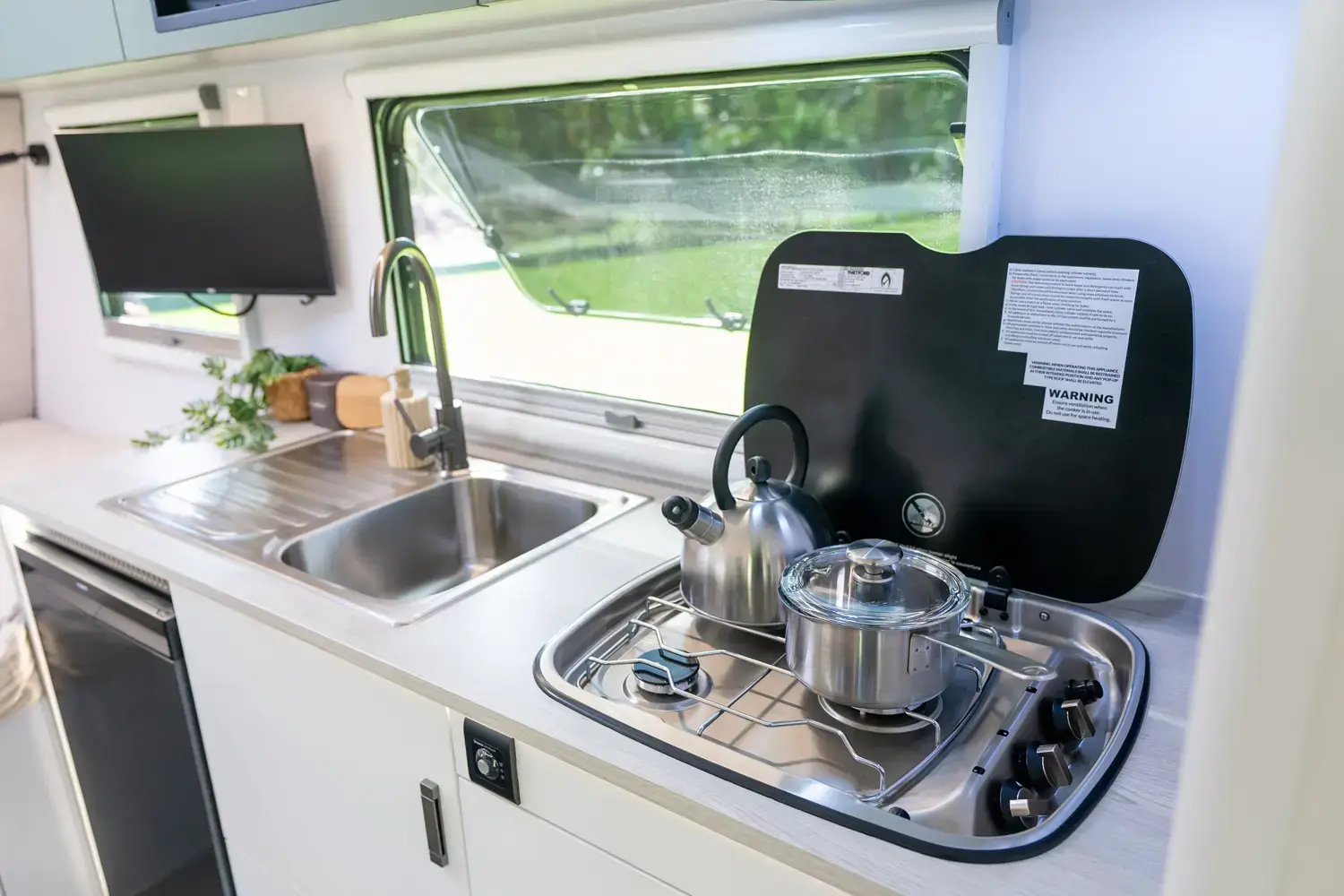

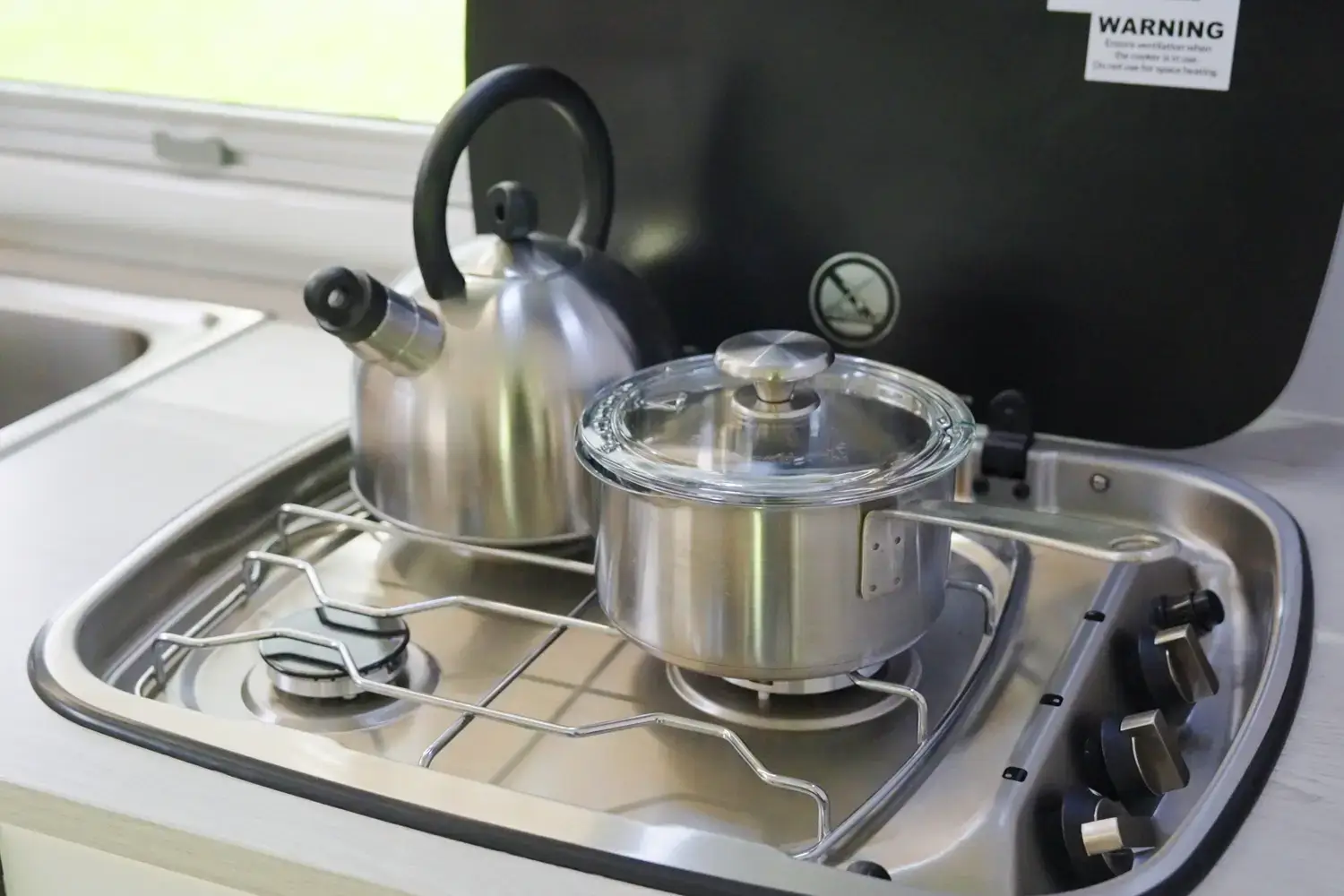

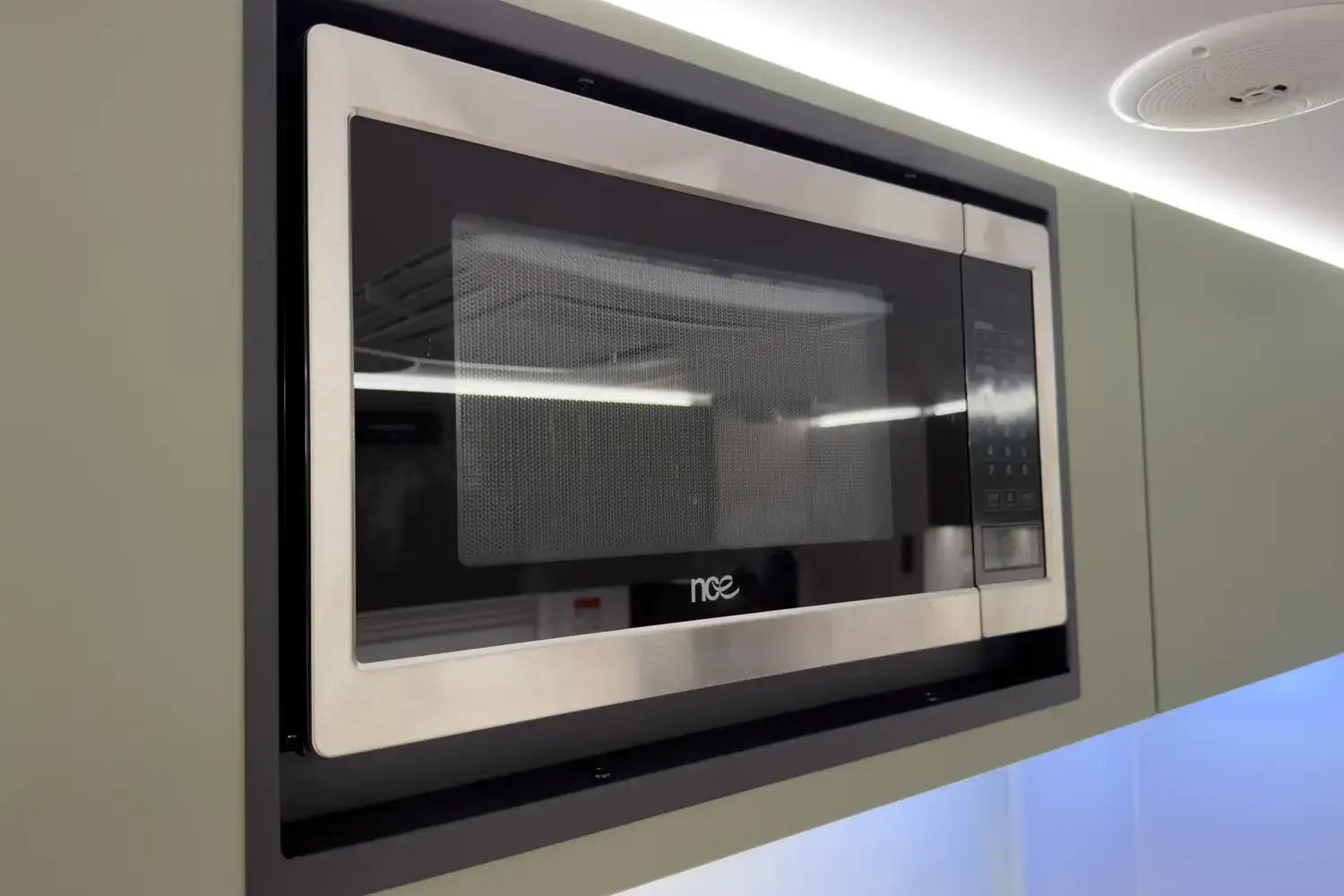

Thetford 3 gas burner cooktop - Microwave
NCE 23L flatbed microwave oven
- Battery
300Ah of LiFePRO+® lithium battery capacity - Solar Panels
525W of rooftop solar capacity - Portable Solar
Up to 600W of regulated portable solar via designated power inlet port (portable solar not supplied) - AC Charger

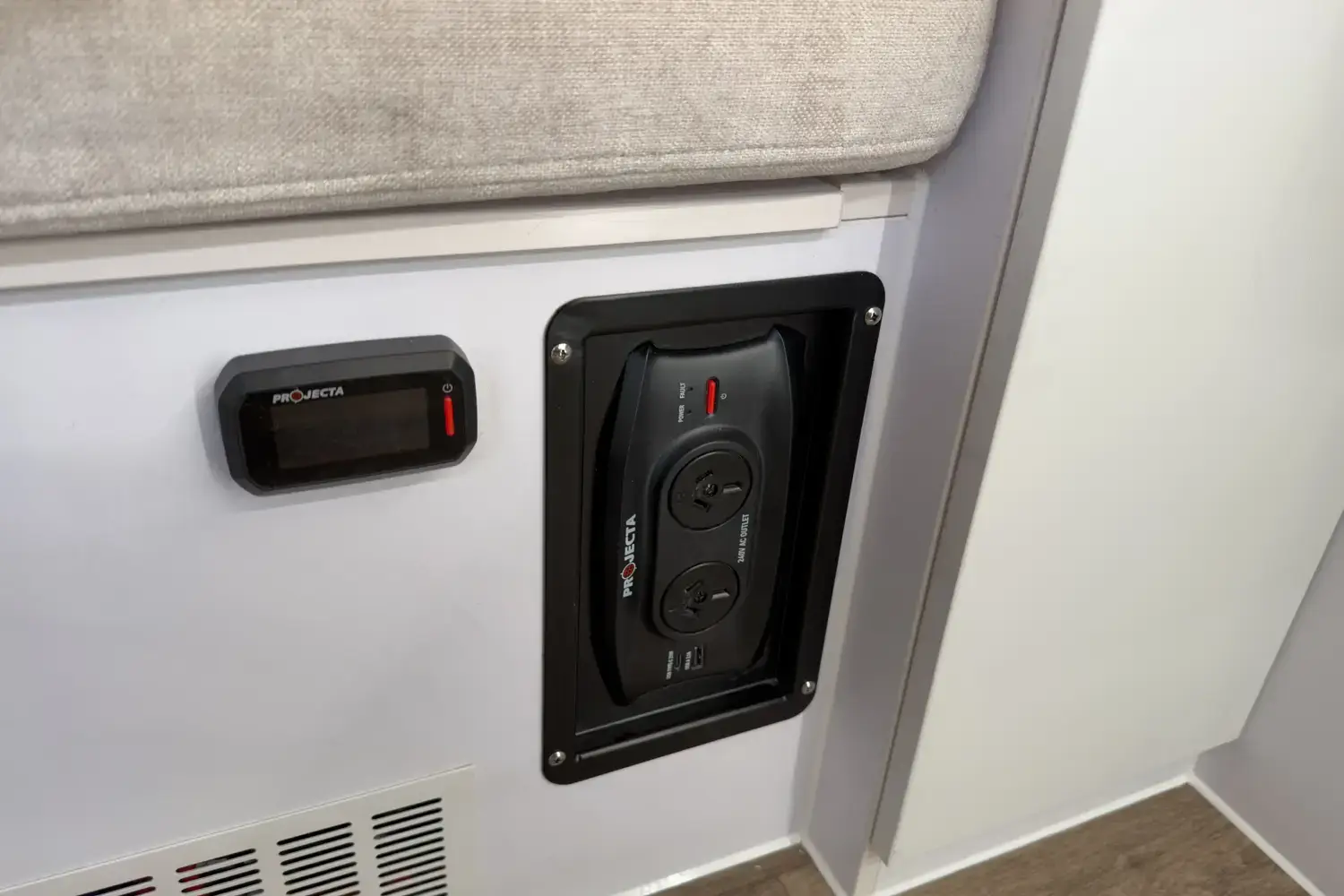

Projecta PM635 Intelli-Grid Gen3 60A AC Charger (All in One Kit) - Battery Charger
Projecta 45A DC-DC battery charger (integrated into Intelli-Grid unit) - Solar Controller

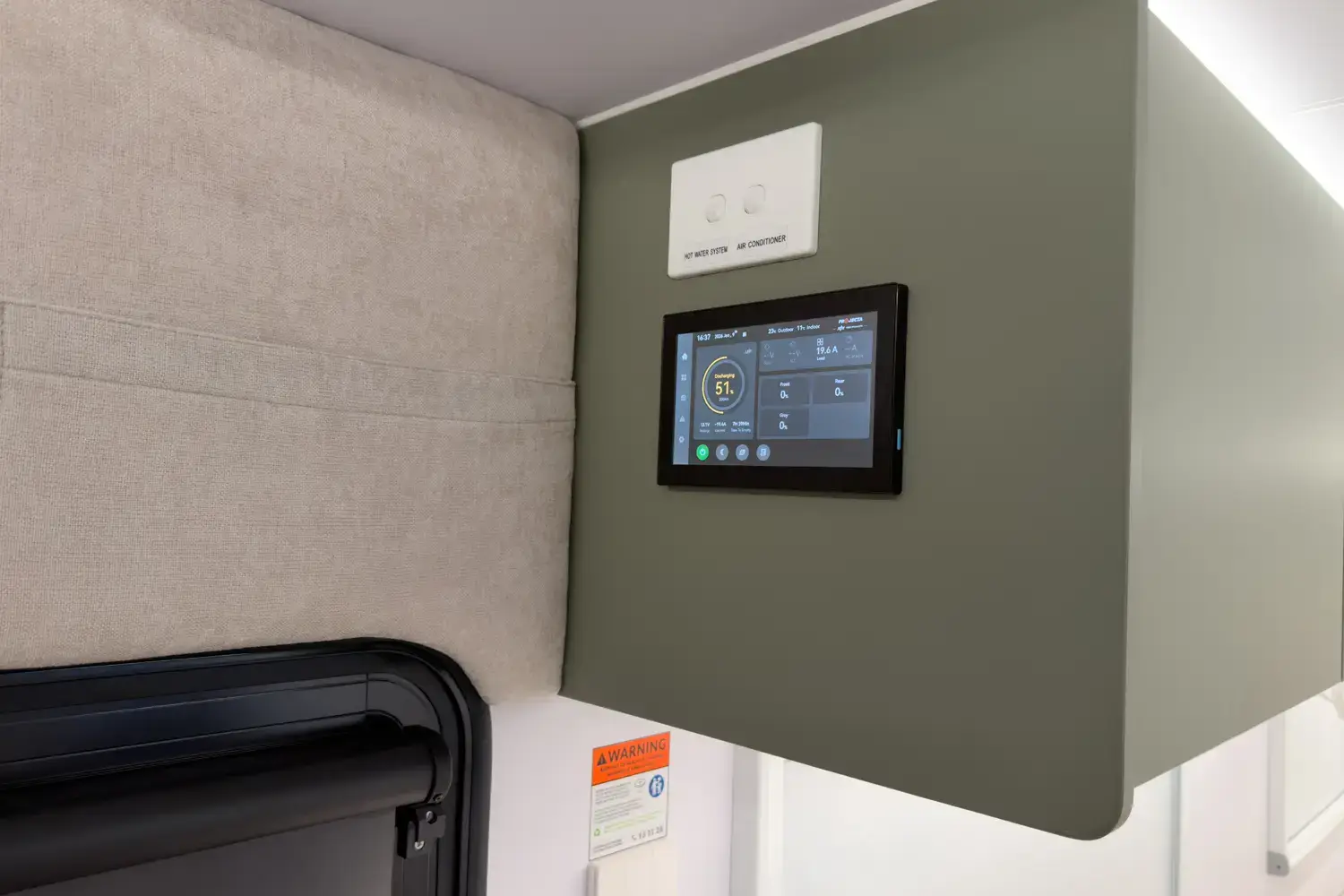

Projecta 45A MPPT solar controller (integrated into Intelli-Grid unit) - Display Screen

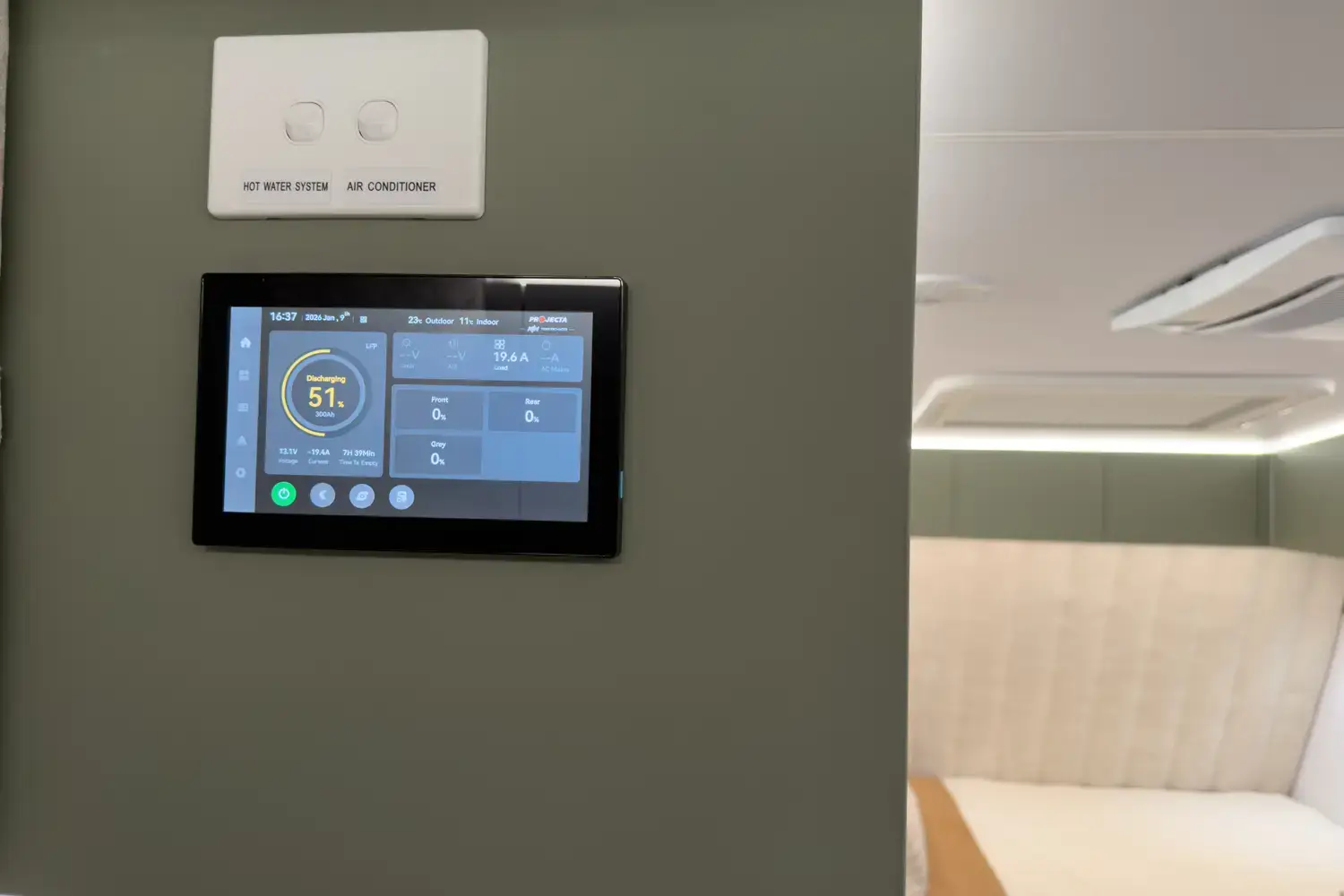

Projecta 7″ display screen with smart device connectivity - Inverter
Projecta PW1600 1600W pure sine wave inverter - Internal Lighting
Internal 12V LED mood lighting - External Lighting
External 12V LED lighting with yellow bug light function - Trailer Plug
12-pin flat trailer plug - Stereo
Stereo head unit with internal & external speakers - TV

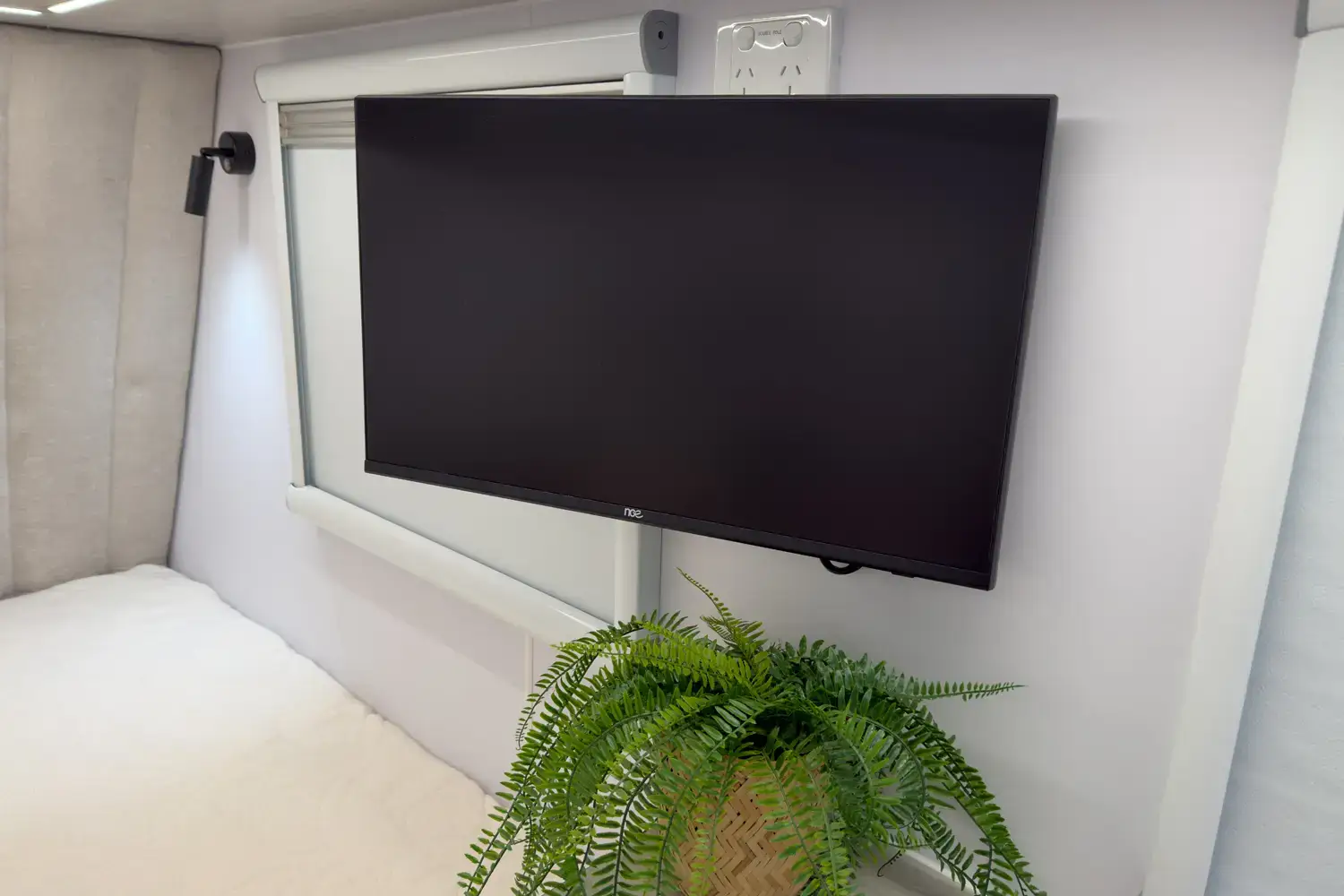

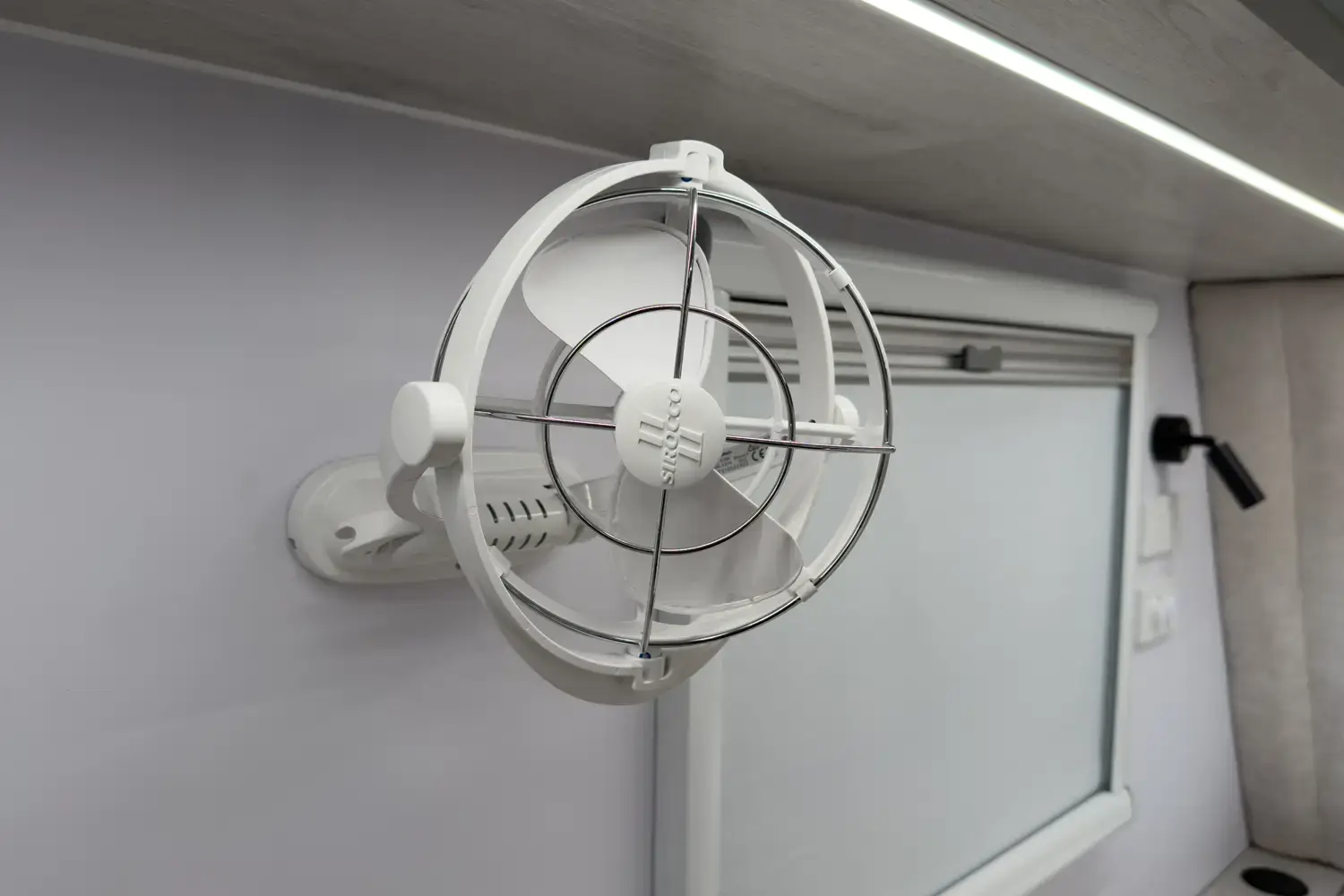

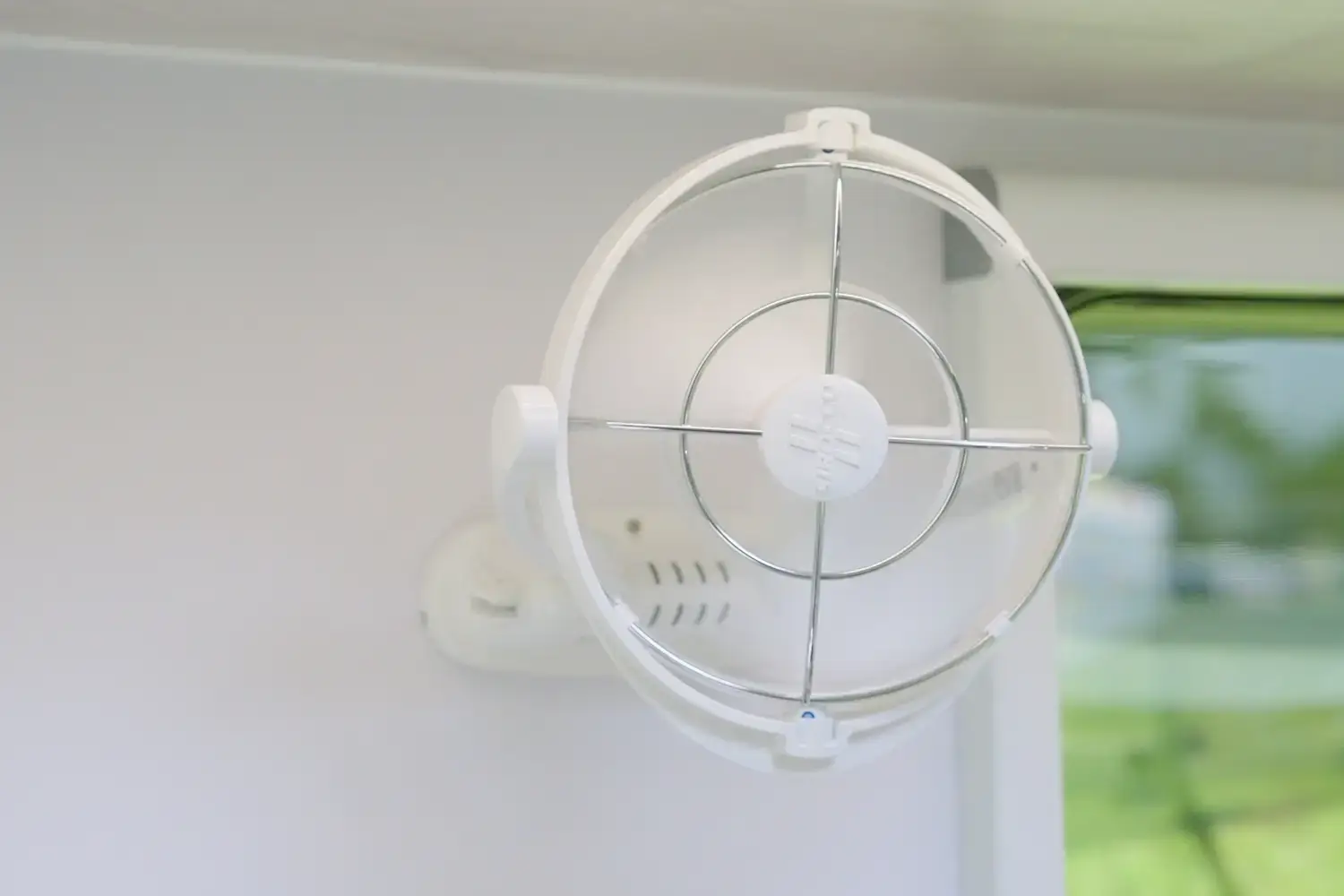

24″ Google Ready Smart TV - Fans
Caframo Sirocco II 12V Fans
- Sockets
12V accessory sockets - USB Points
USB charging ports - Power Points
240V GPOs - TV Outlet

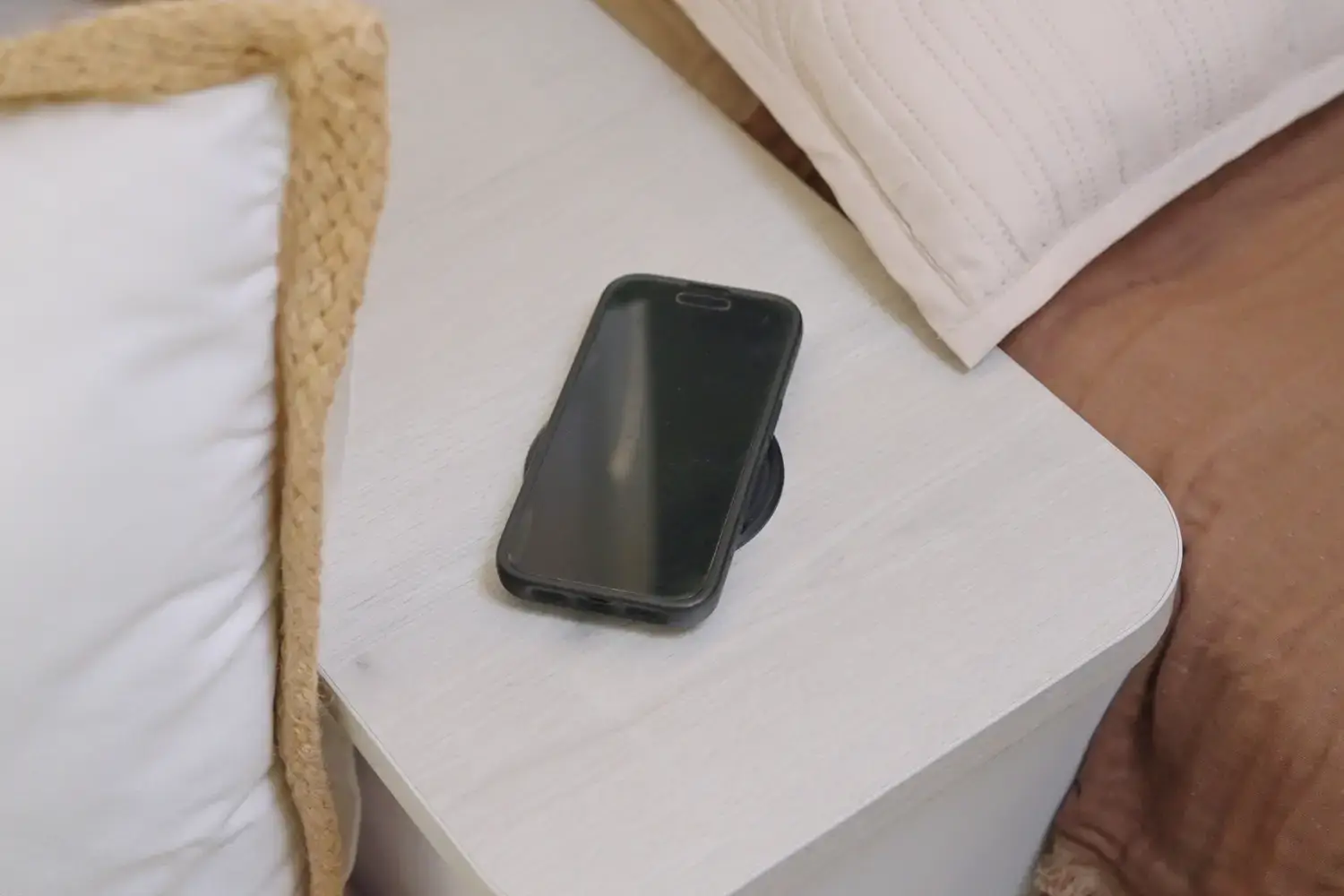

F-type TV outlet - Wireless Charger
Wireless charging pads
- Socket
12V accessory socket - USB Points
USB charging ports - Plug
Anderson plug - TV Inlet
F-type TV inlet & through wall cable port
