- Caravan

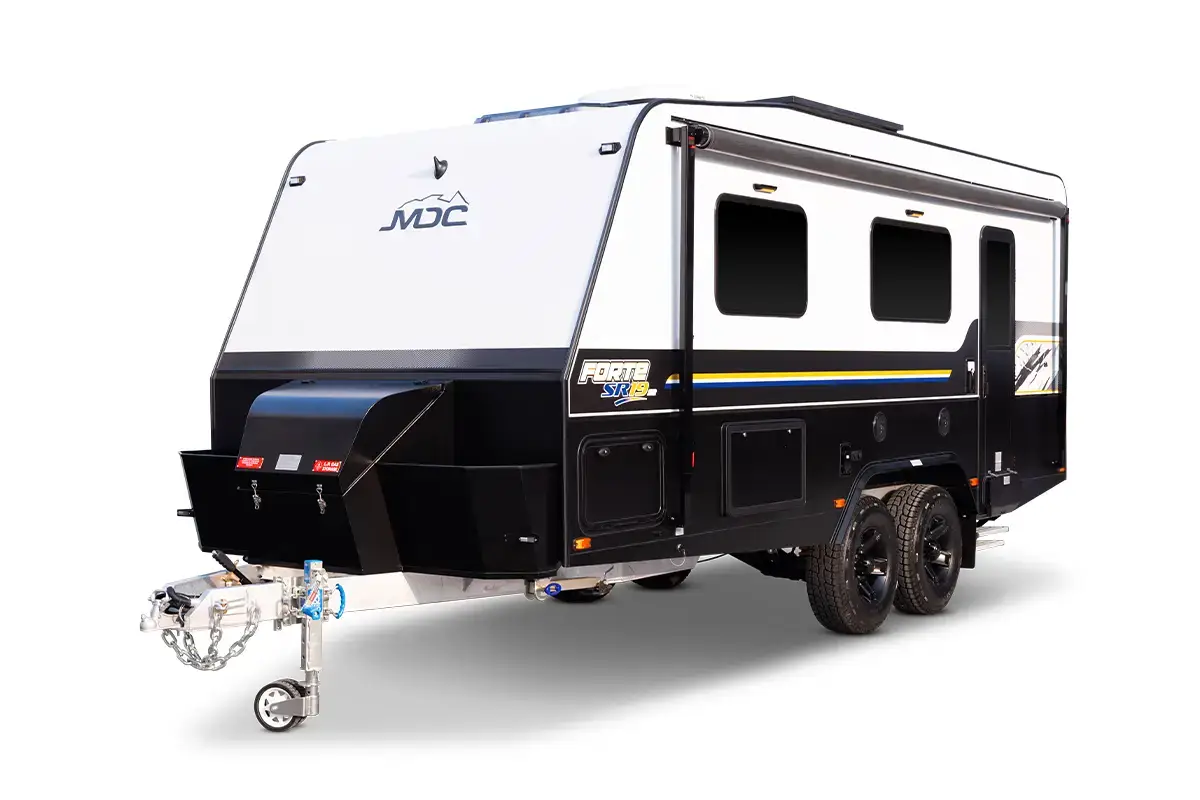

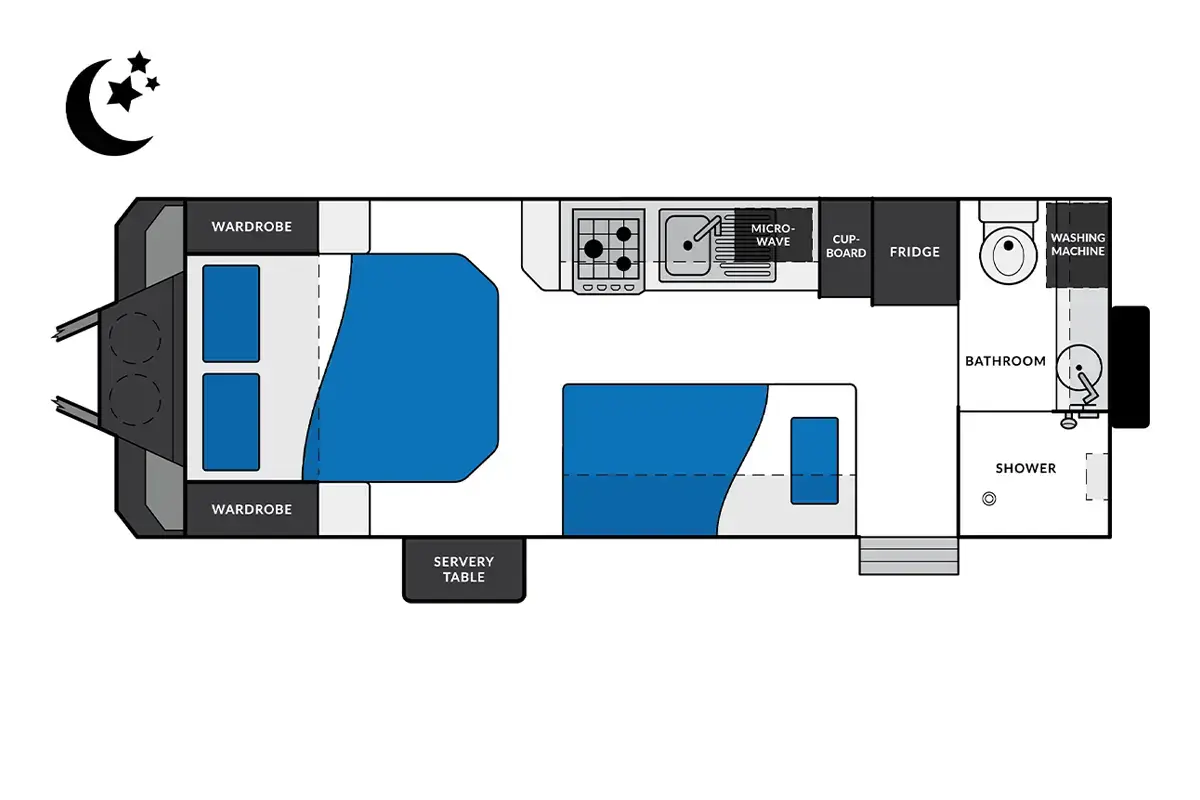

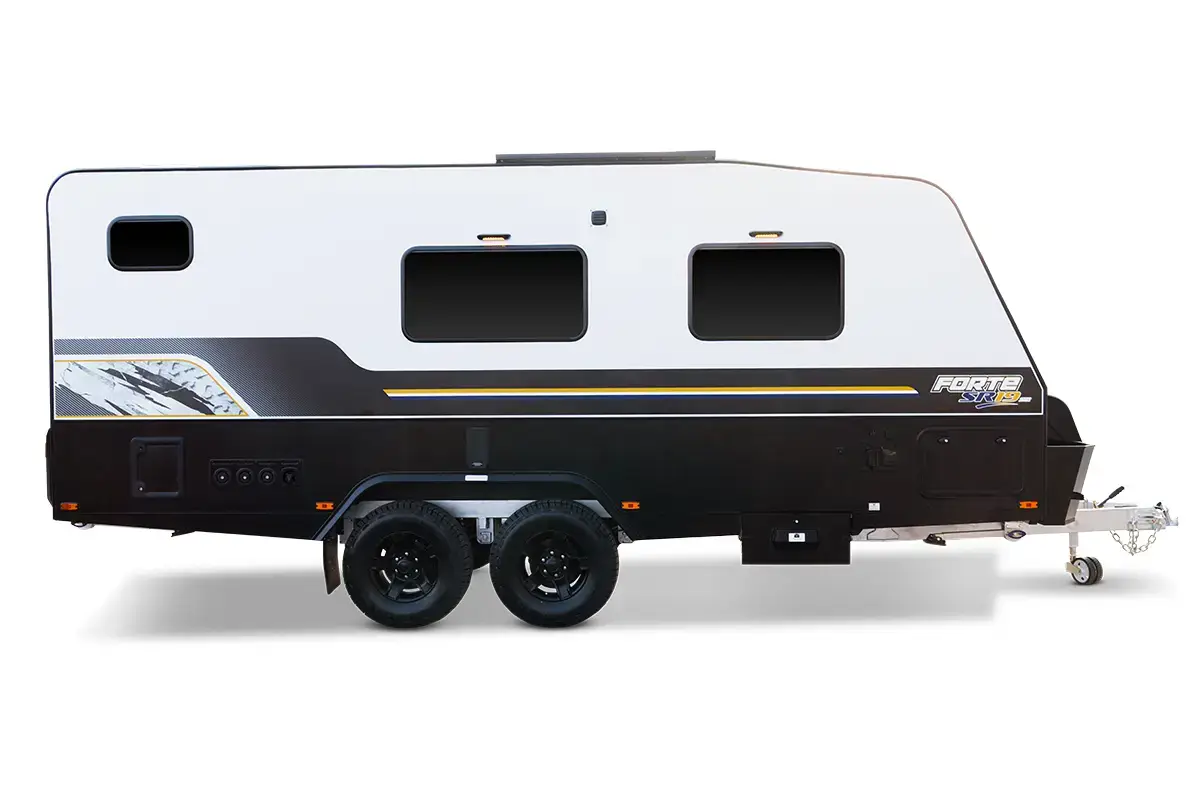

19′ On-road Caravan - Sleeps
2+1 Berth - Main Bed

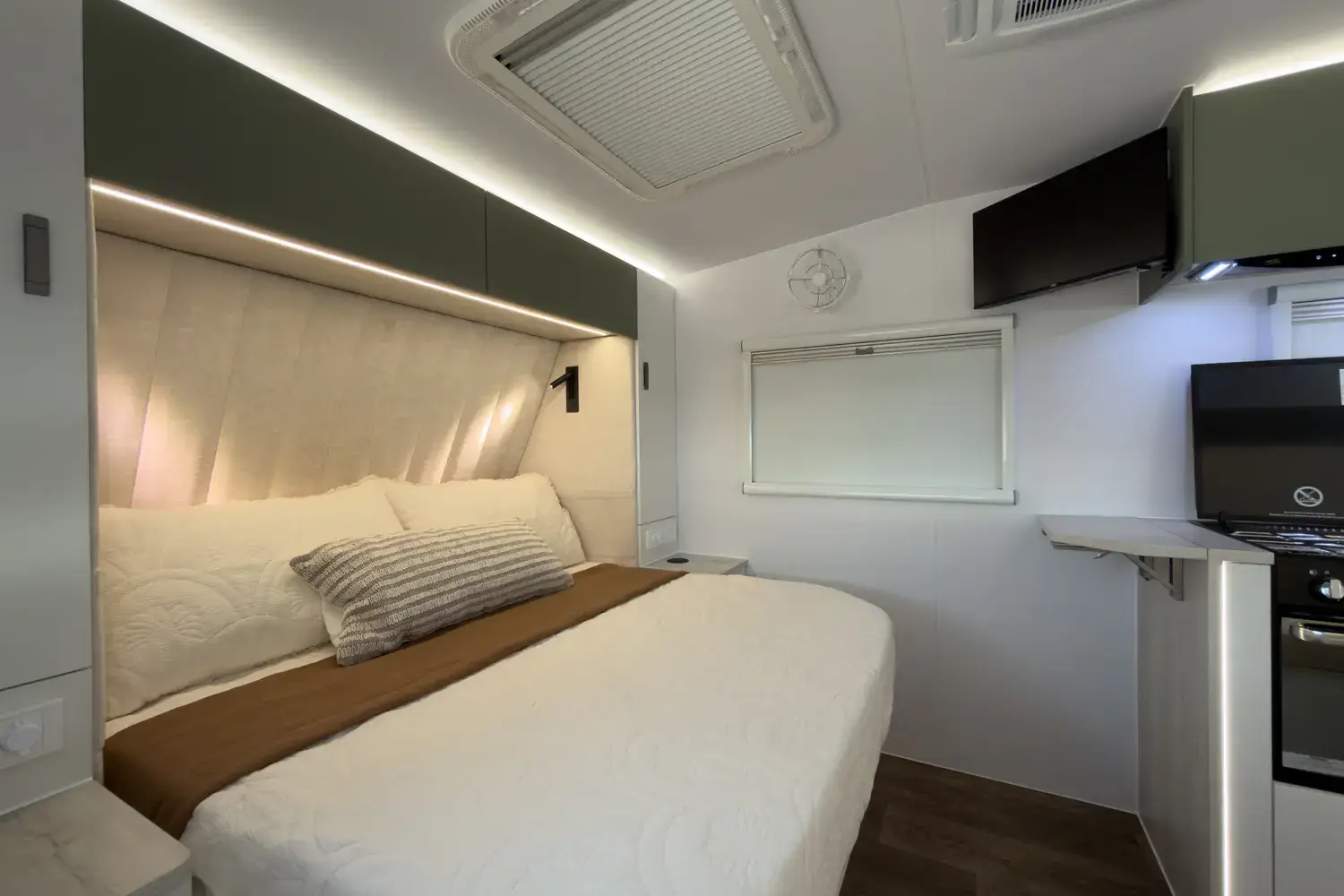

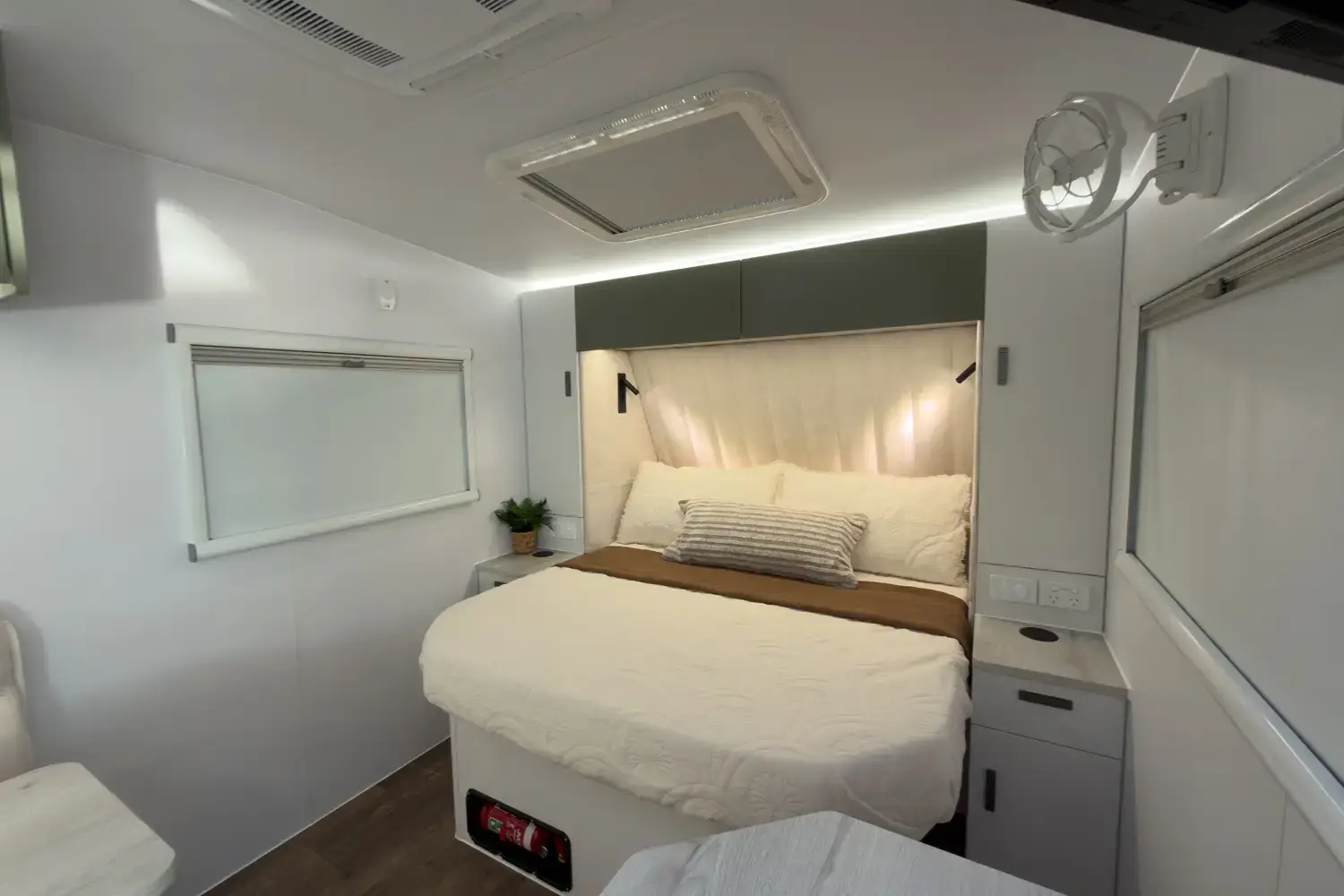

1 x Queen size island bed - Mattress Size
2000mm L x 1450mm W x 150mm H - Chassis Finish
Hot dip galvanised chassis + aluminium composite panel throughout
- Tare Weight
Approx. 2640kg - Tow Ball Weight
Approx. 190kg - ATM Rating
3500kg - Payload
Approx. 860kg
- Open
7682mm L x 4384mm W x 3087mm H - Closed (Travel Size)
7682mm L x 2384mm W x 3087mm H

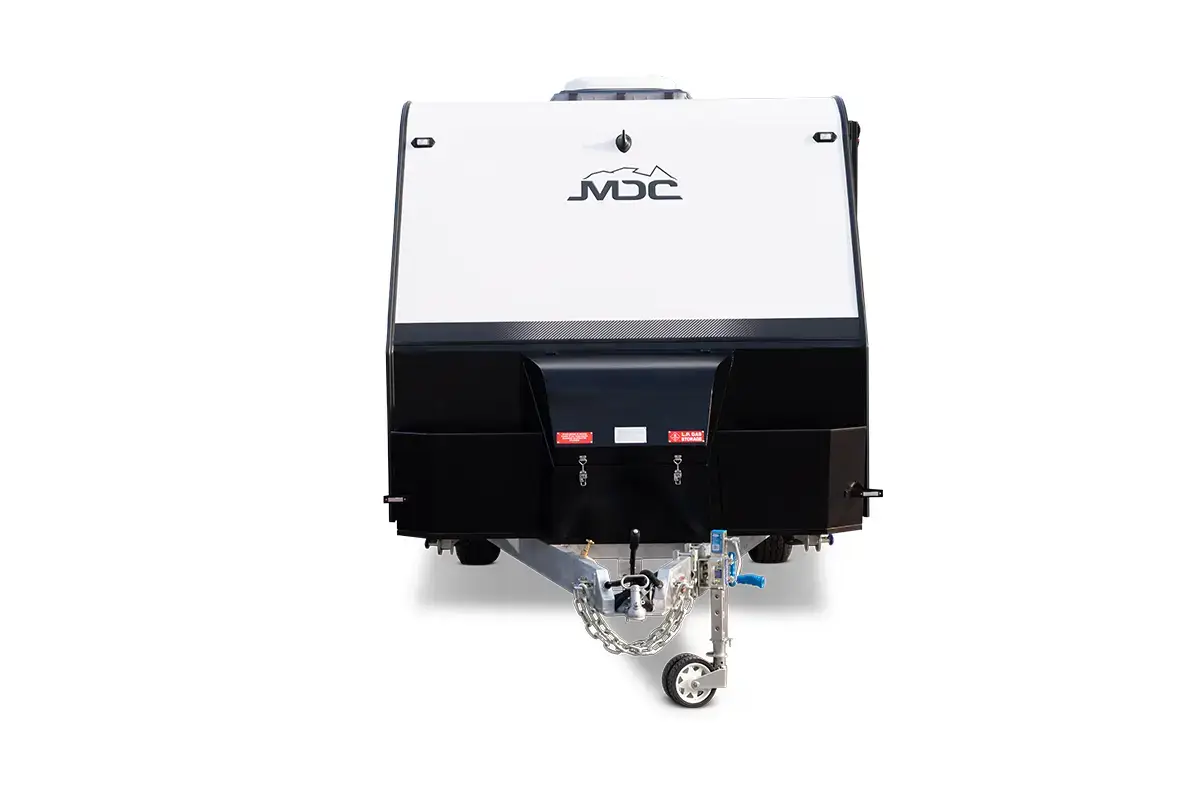

- Coupling
Trojan 50mm Ball Coupling - Jockey Wheel
ARK XO750 Jockey Wheel - Wheels
16″ Alloy wheels with 265/75 Goodride A/T tyres - Suspension
Independent coil spring trailing arm suspension with dual shock absorbers (Tandem Axle) - Brakes
12″ Electric drum brakes - Drop Legs
4 x heavy duty lockable and adjustable drop down stabiliser legs - Jack
KOJACK 4000kg hydraulic jack
- Awning
Global Heritage Manual roll out awning - Gas Bottles
2 x 9kg gas cylinder holders in enclosed compartment - Fresh & Grey Water
2 x 80L fresh water & 1 x 80L grey water - Water Pump
12V electric marine diaphragm pump water delivery - Table Type
Wall-mounted drop-down servery table - Camera & Monitor
Wireless rear view camera + 7″ monitor - ESC
Tuson TSC-1000 – electronic stability control with asymmetric braking

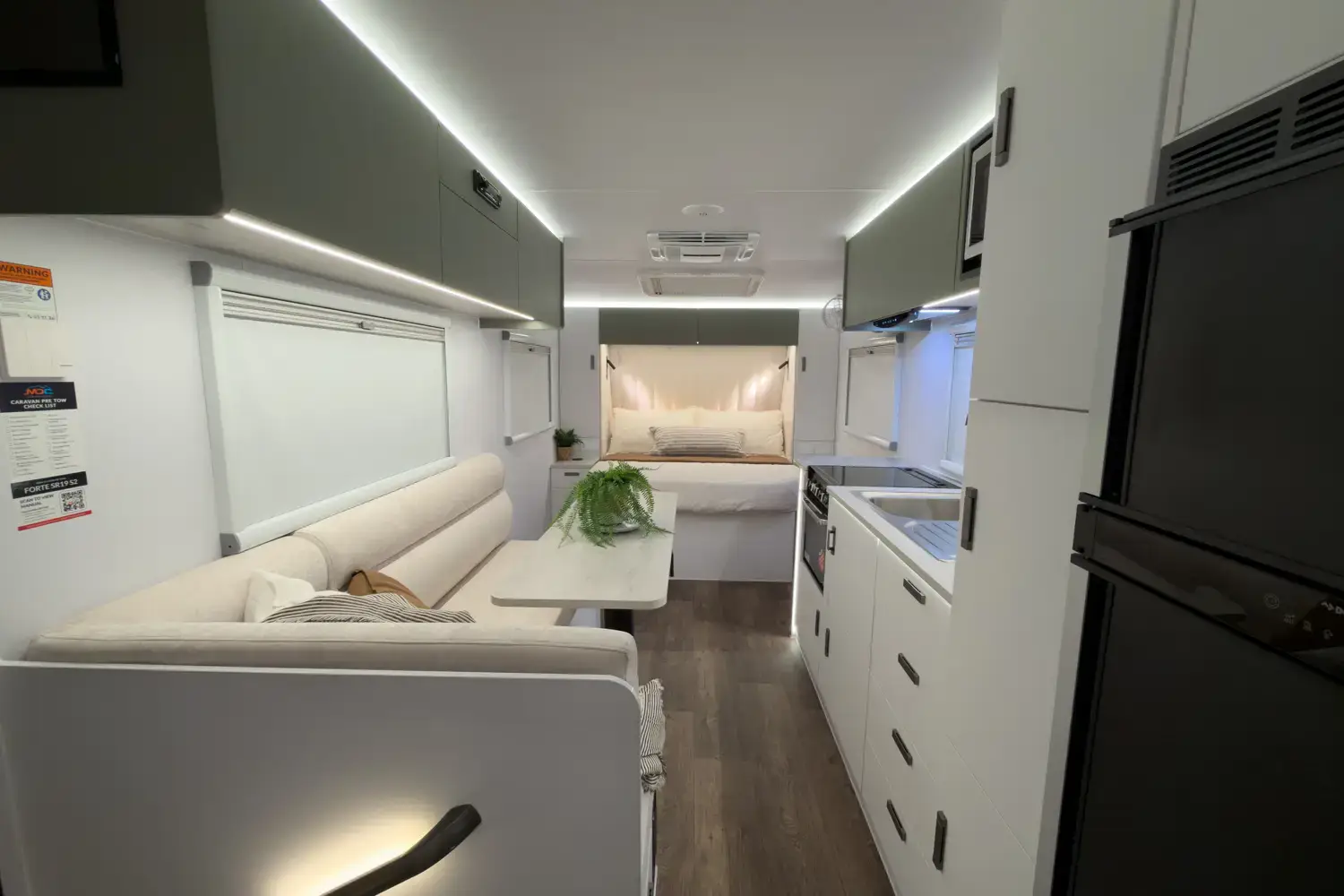

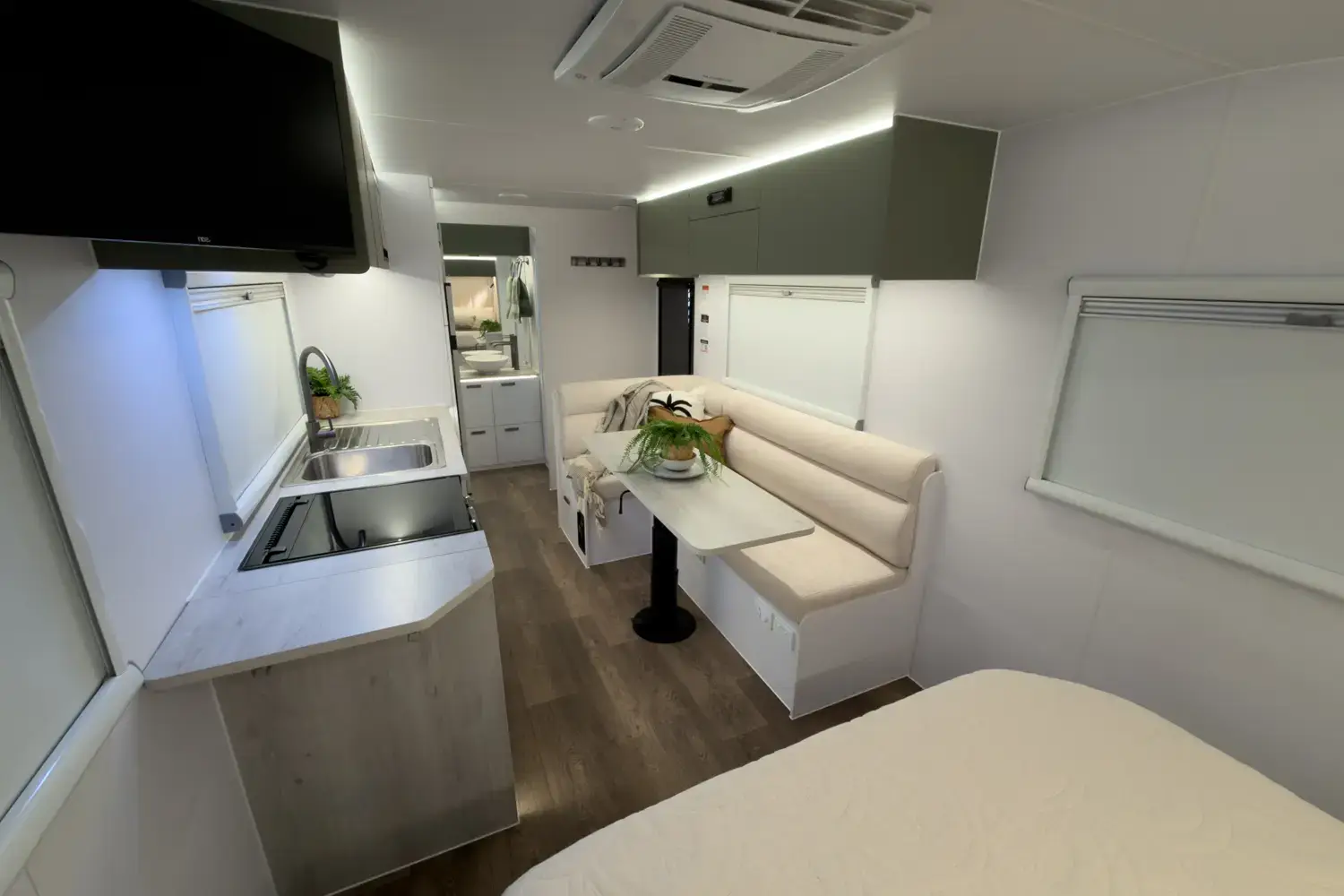

- Cabinetry

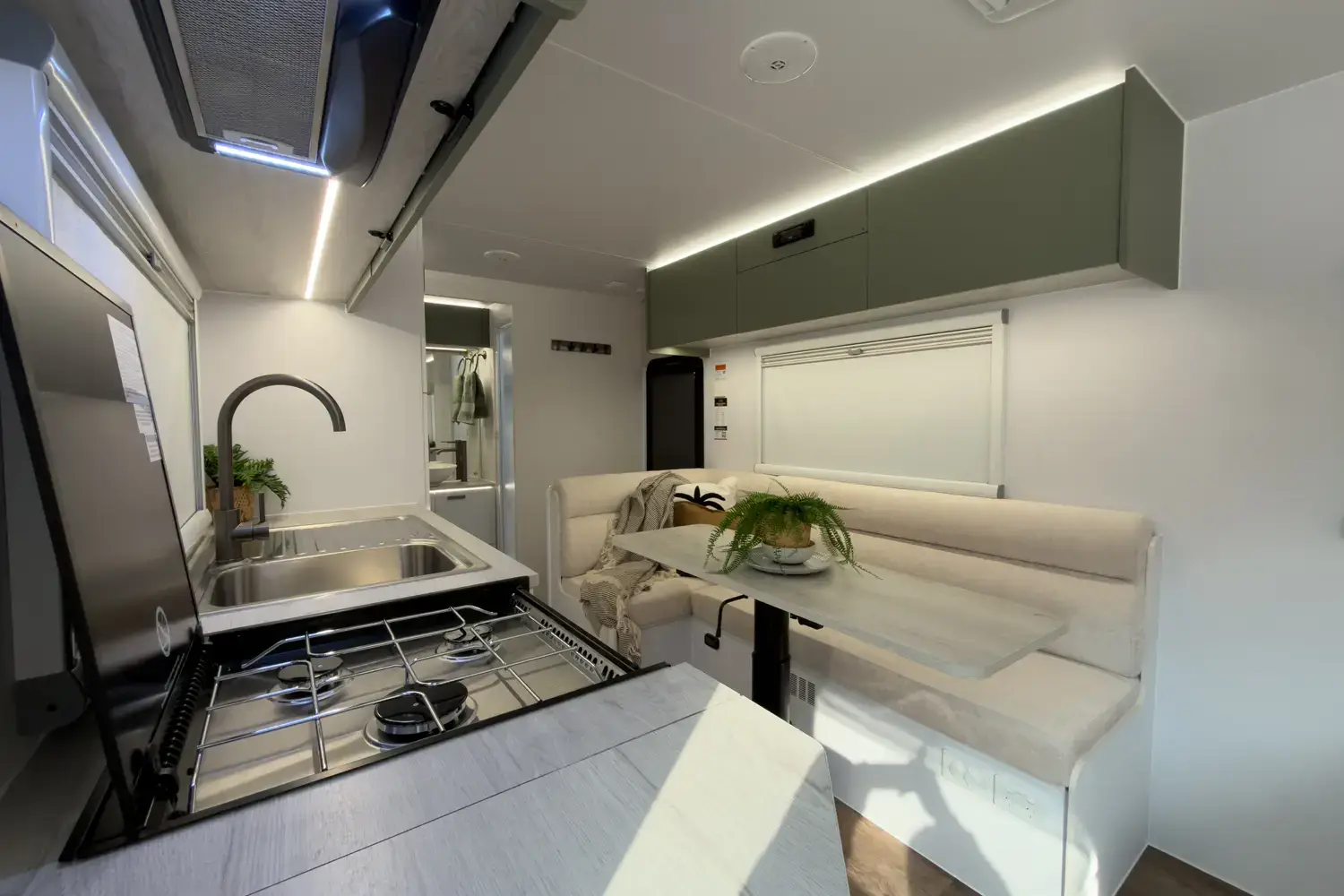

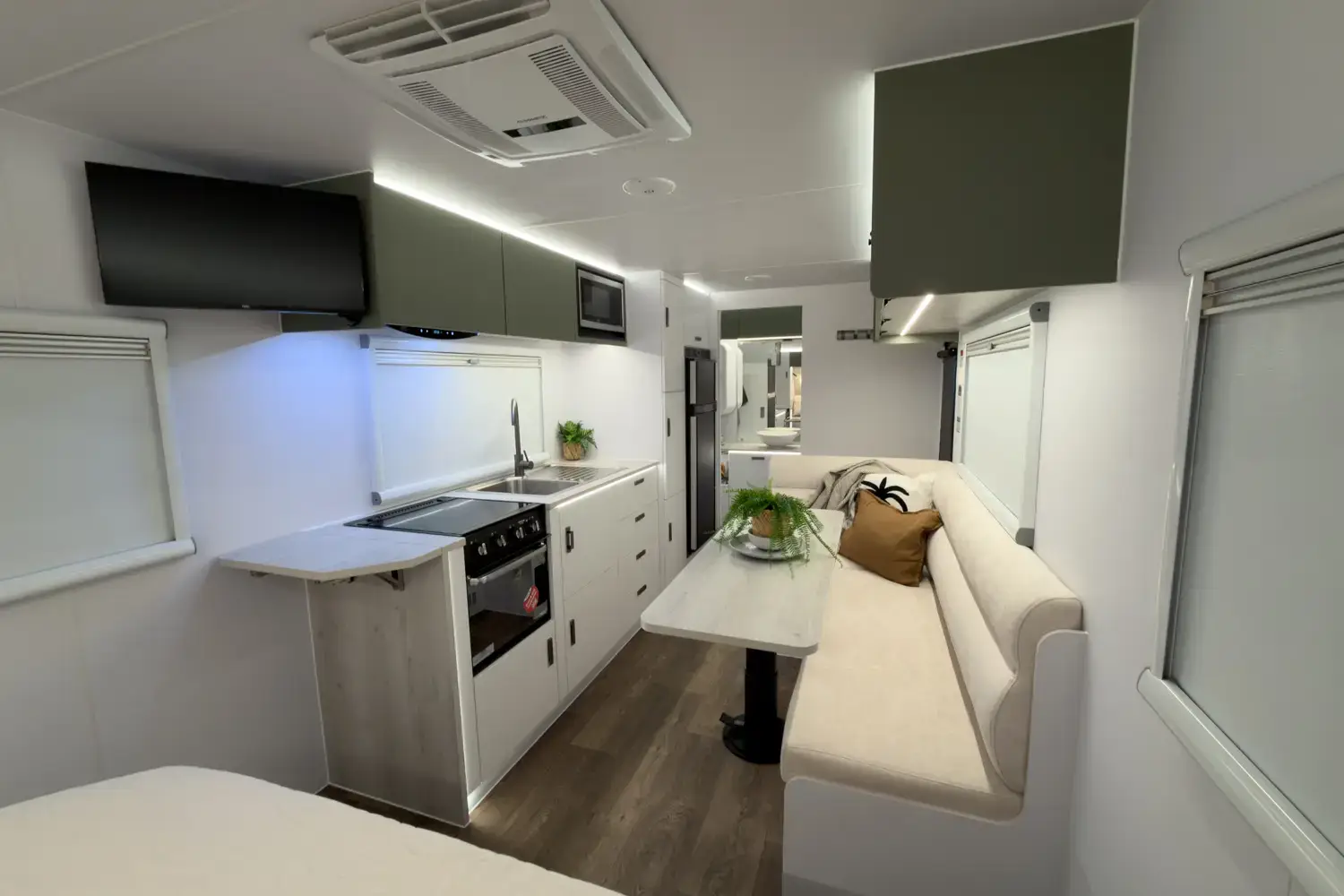

Matte white & sage green cabinetry paired with oak benchtops, heritage oatmeal upholstery, and gunmetal grey fixtures - Ensuite

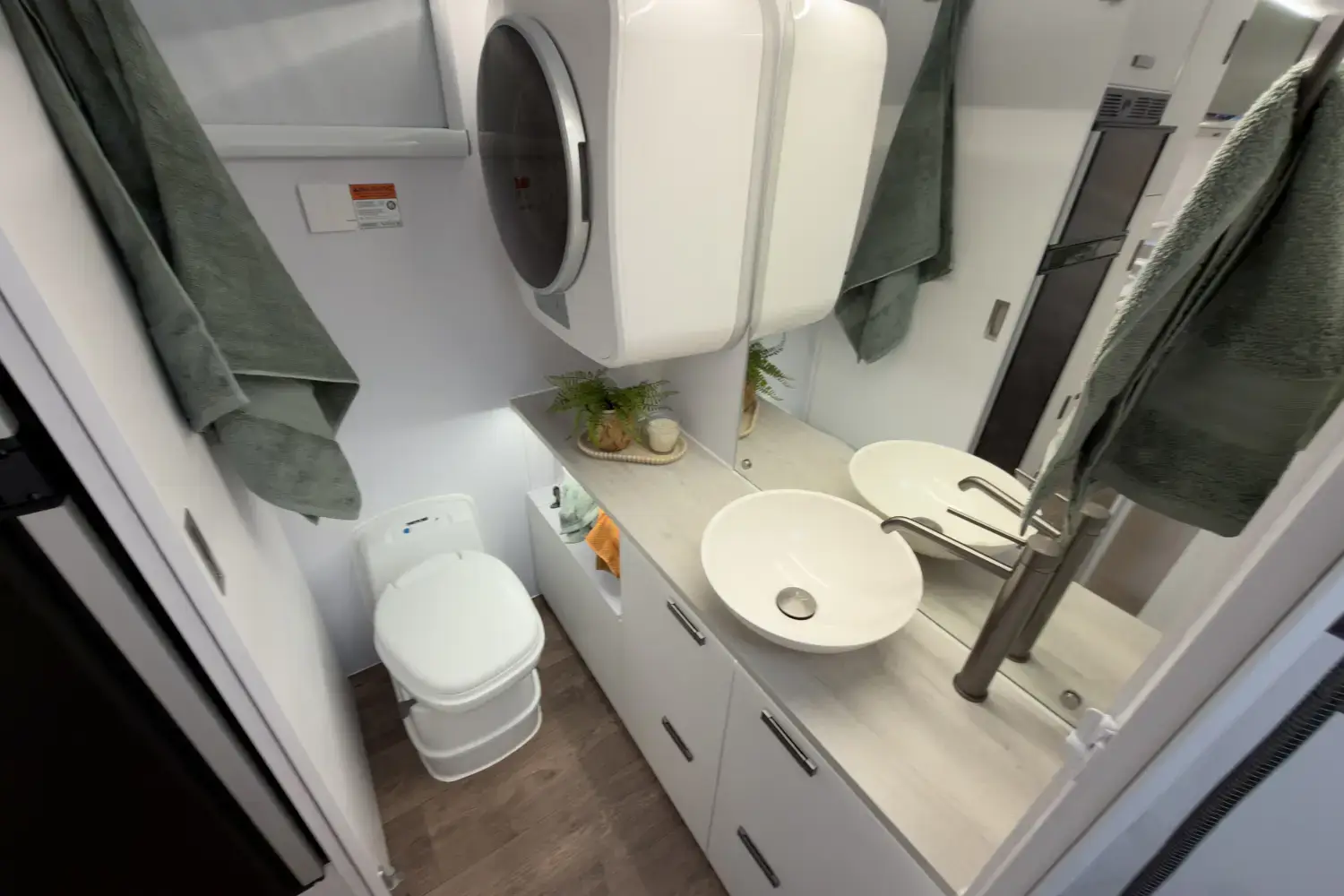

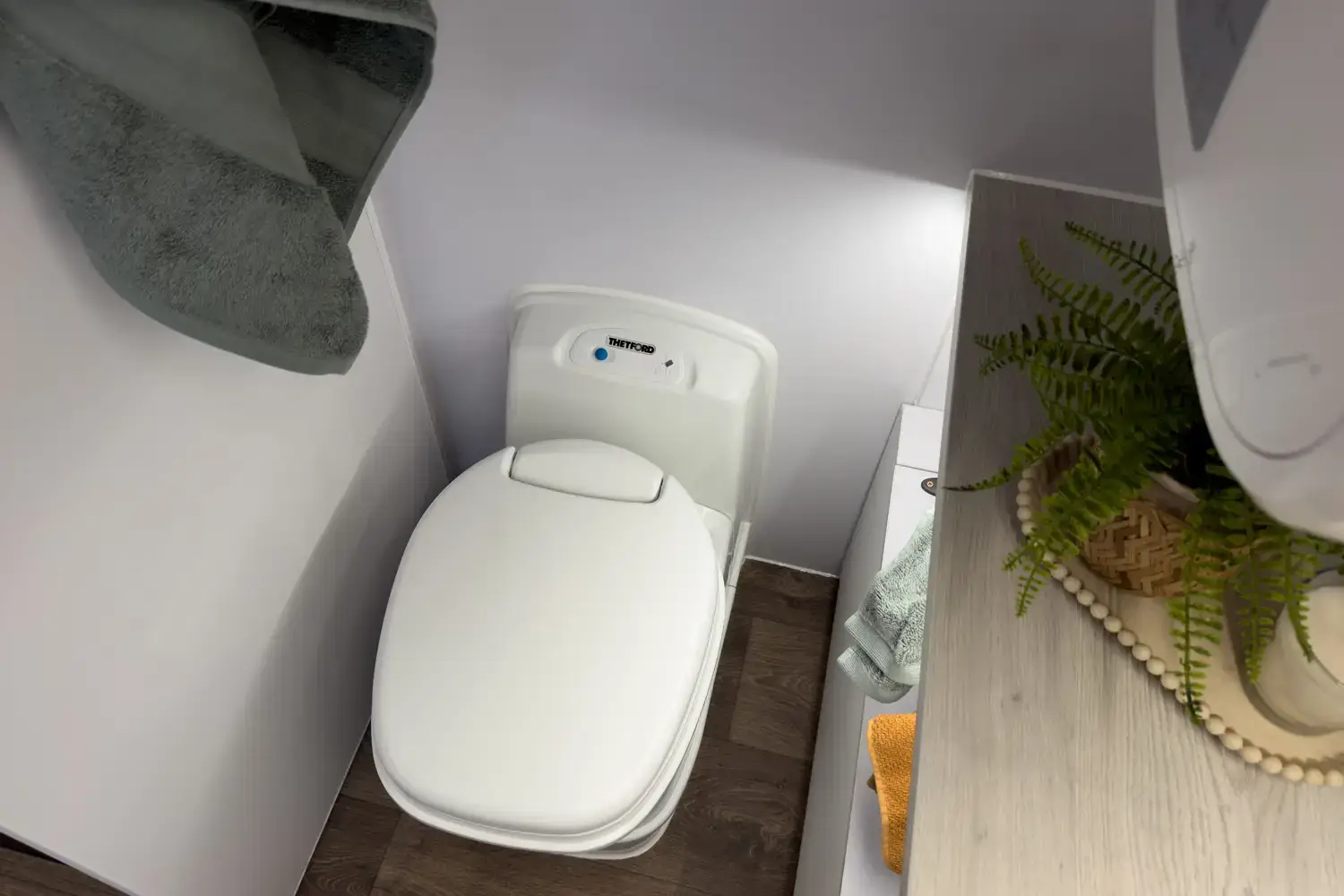

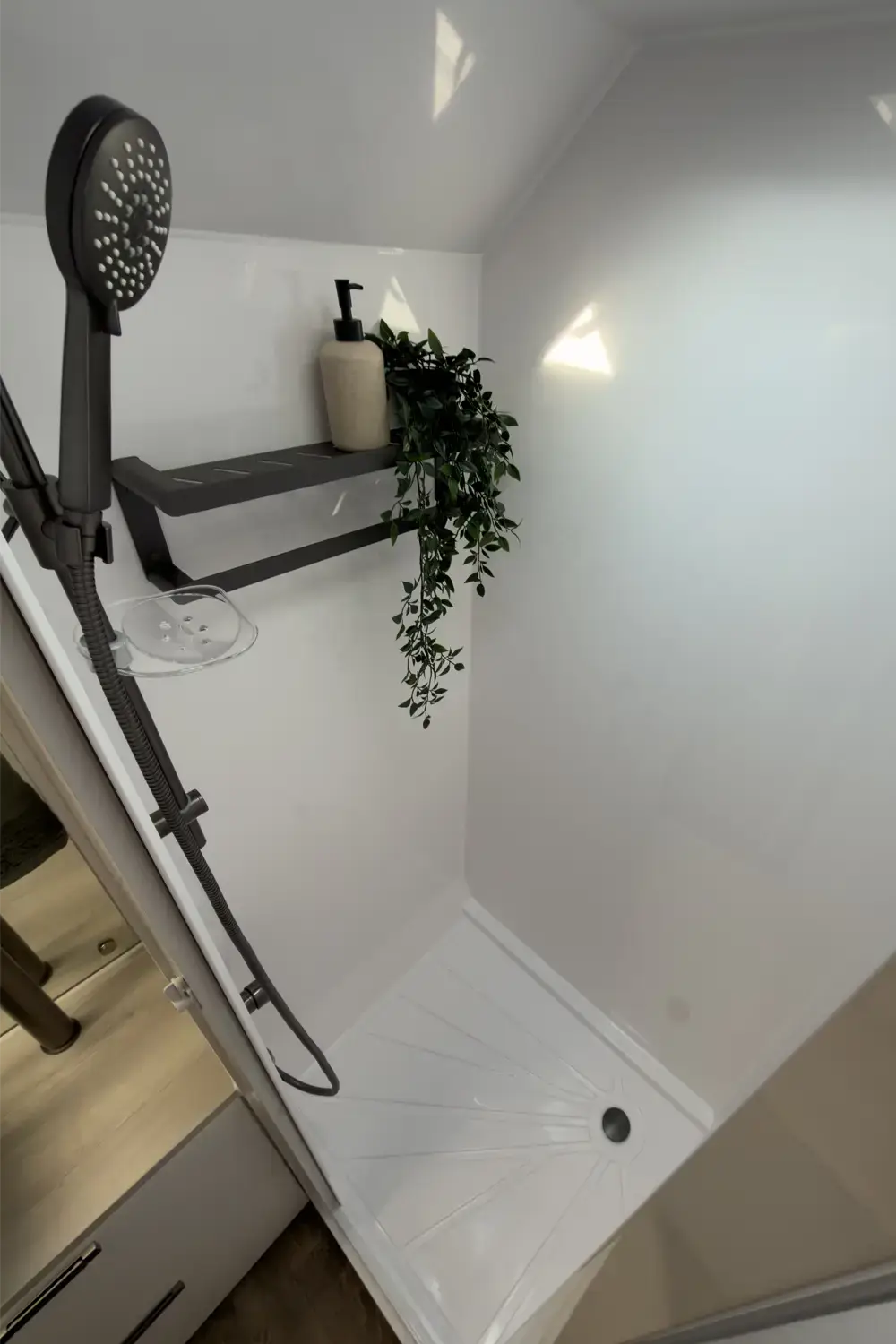

Internal ensuite with Thetford cassette toilet & separate shower - Seating Configuration

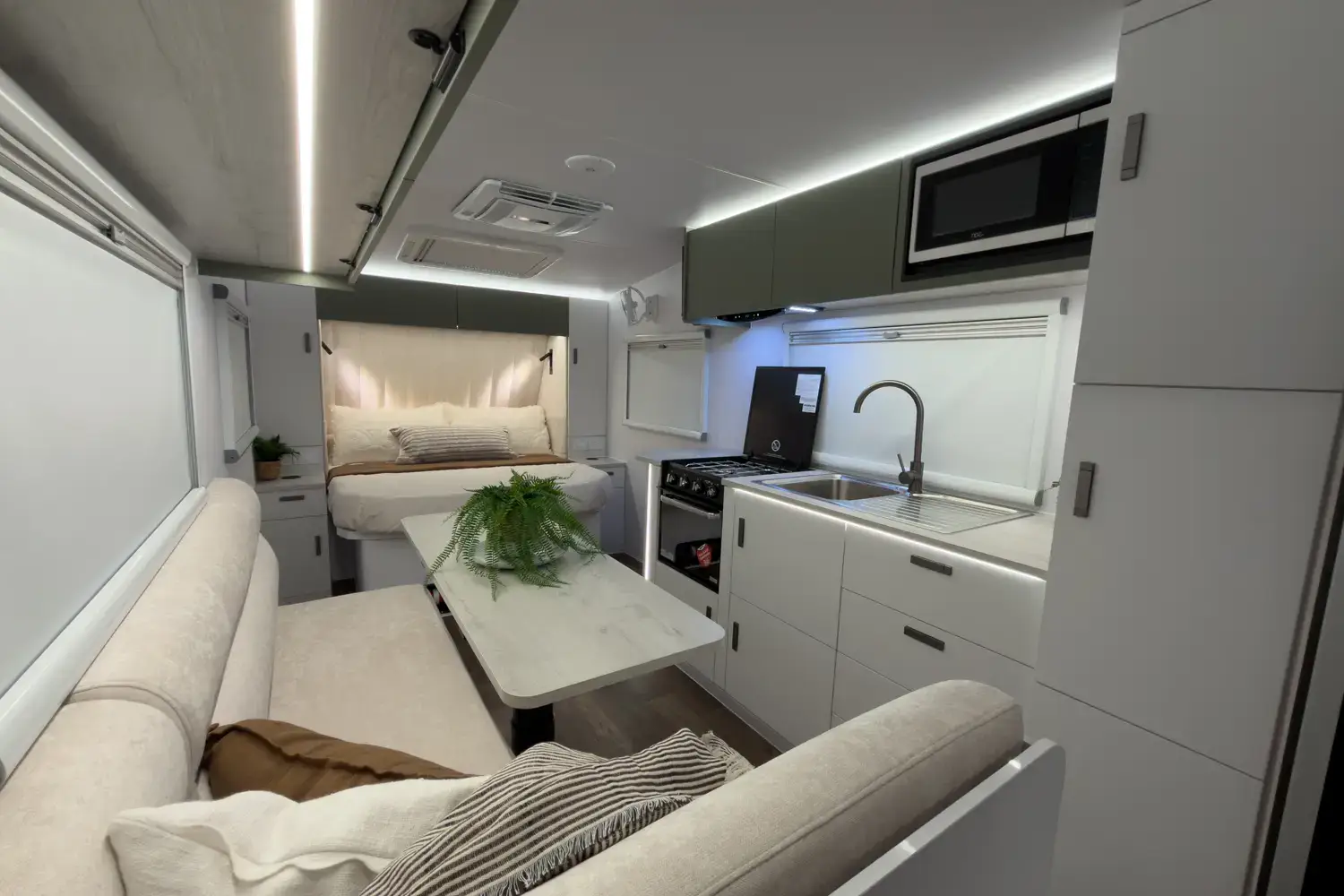

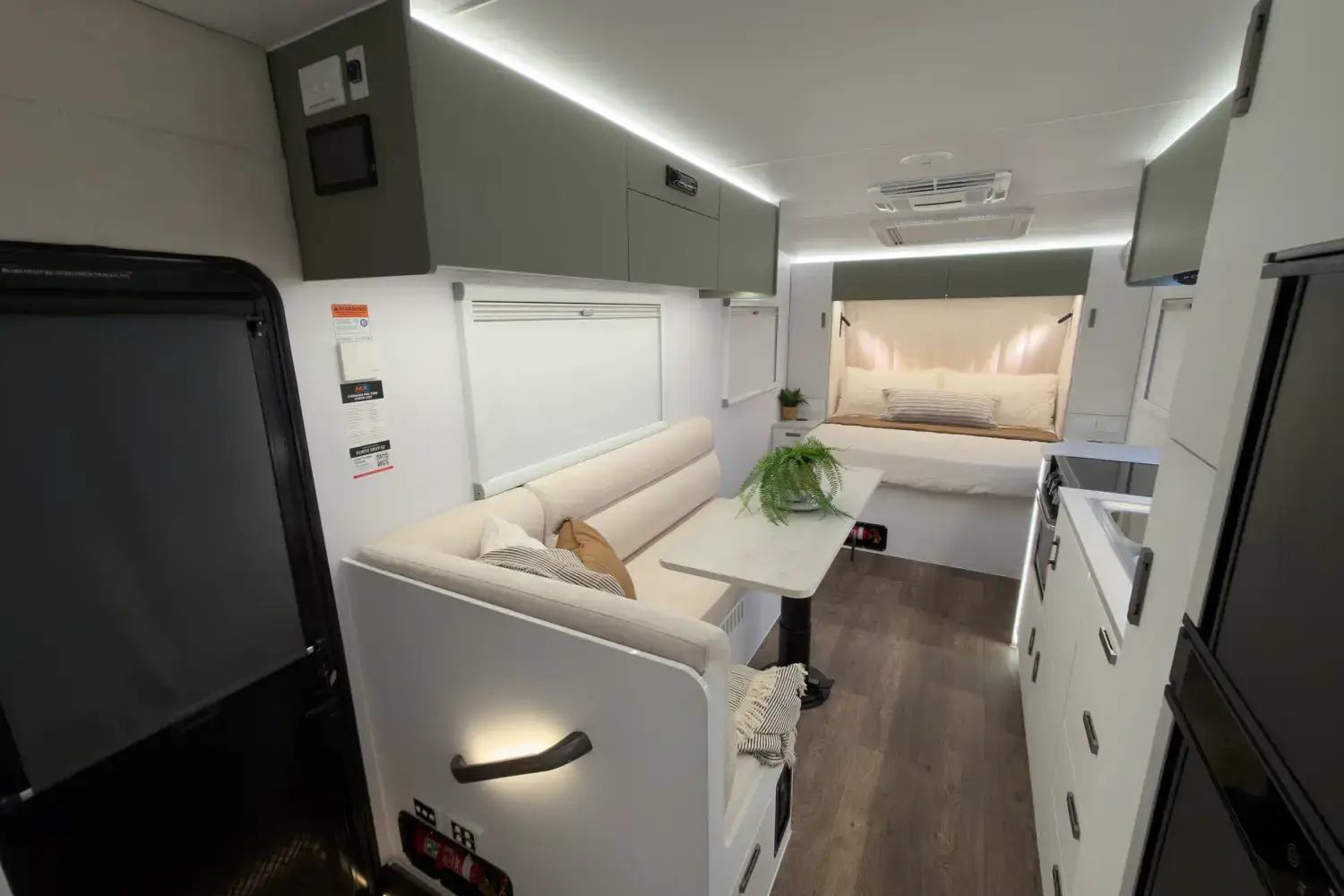

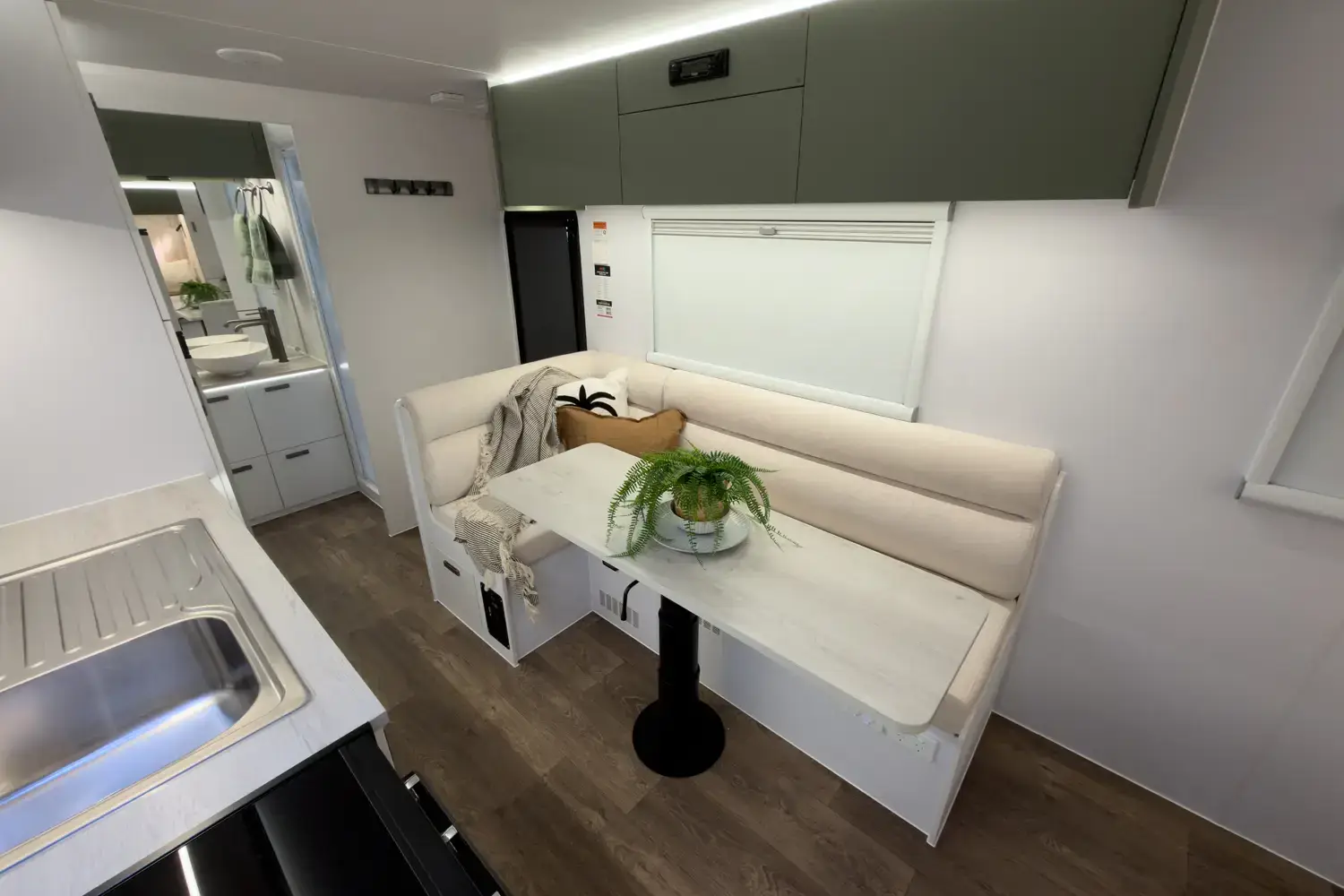

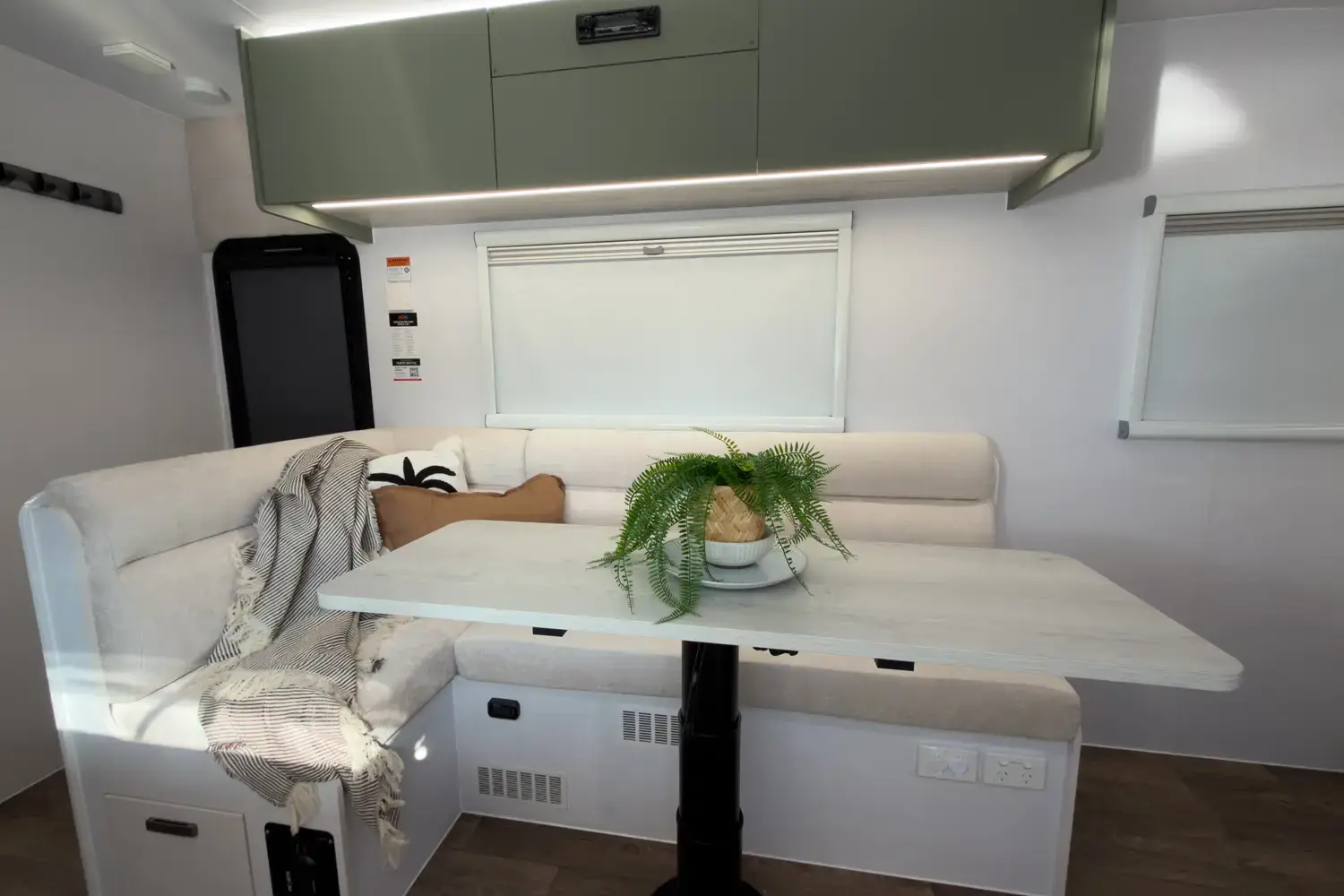

L-Shaped lounge - Windows
Double acrylic glazed windows and double cassette blind with flyscreen and block-out - Roof Hatch
Skylight with 12V lighting and double cassette blind
- Air Conditioner
Dometic Freshjet 7 Series Pro 2900W air conditioner - Hot Water System
Truma Ultra Rapid Gas Electric 14L Hot Water System - Fridge

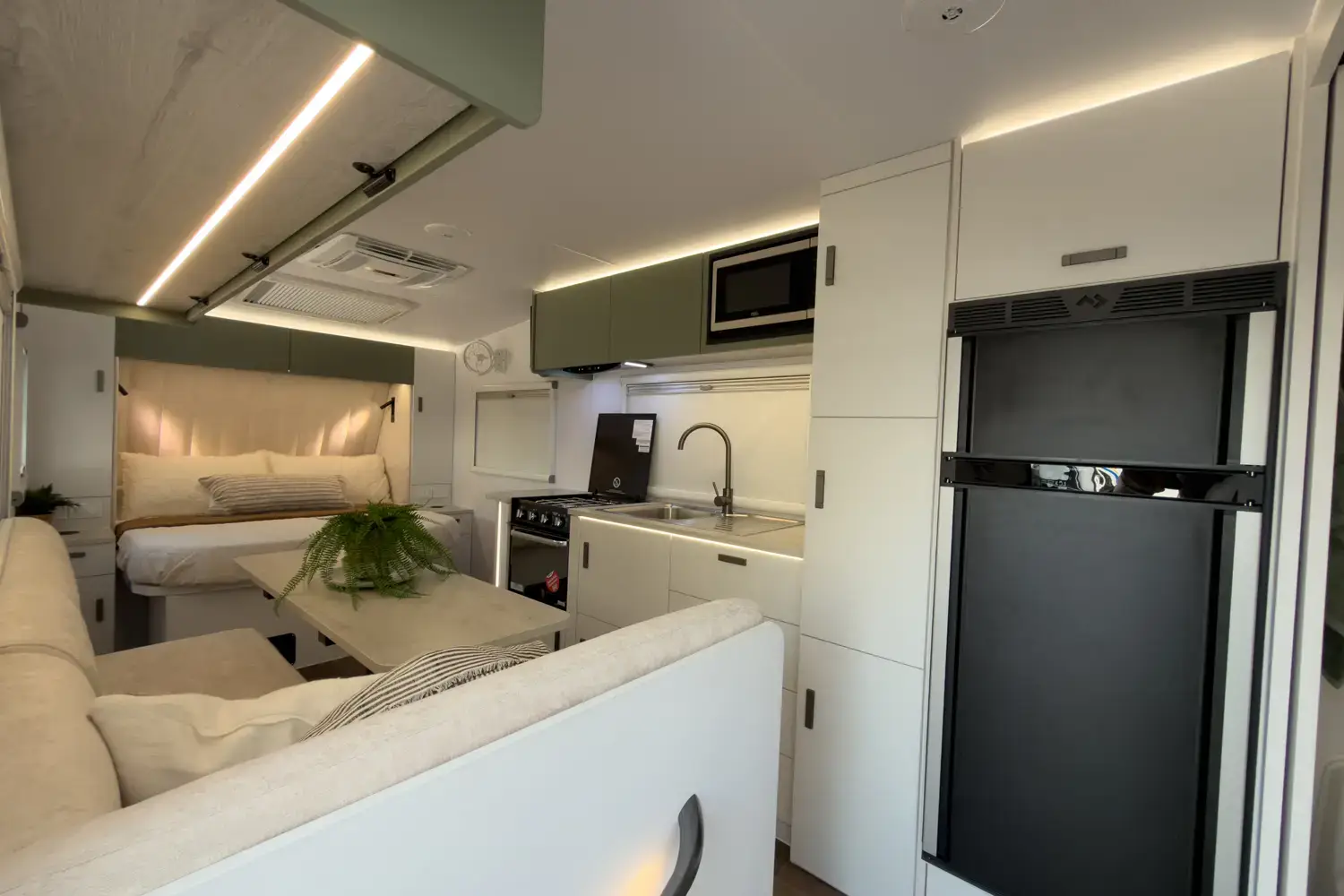

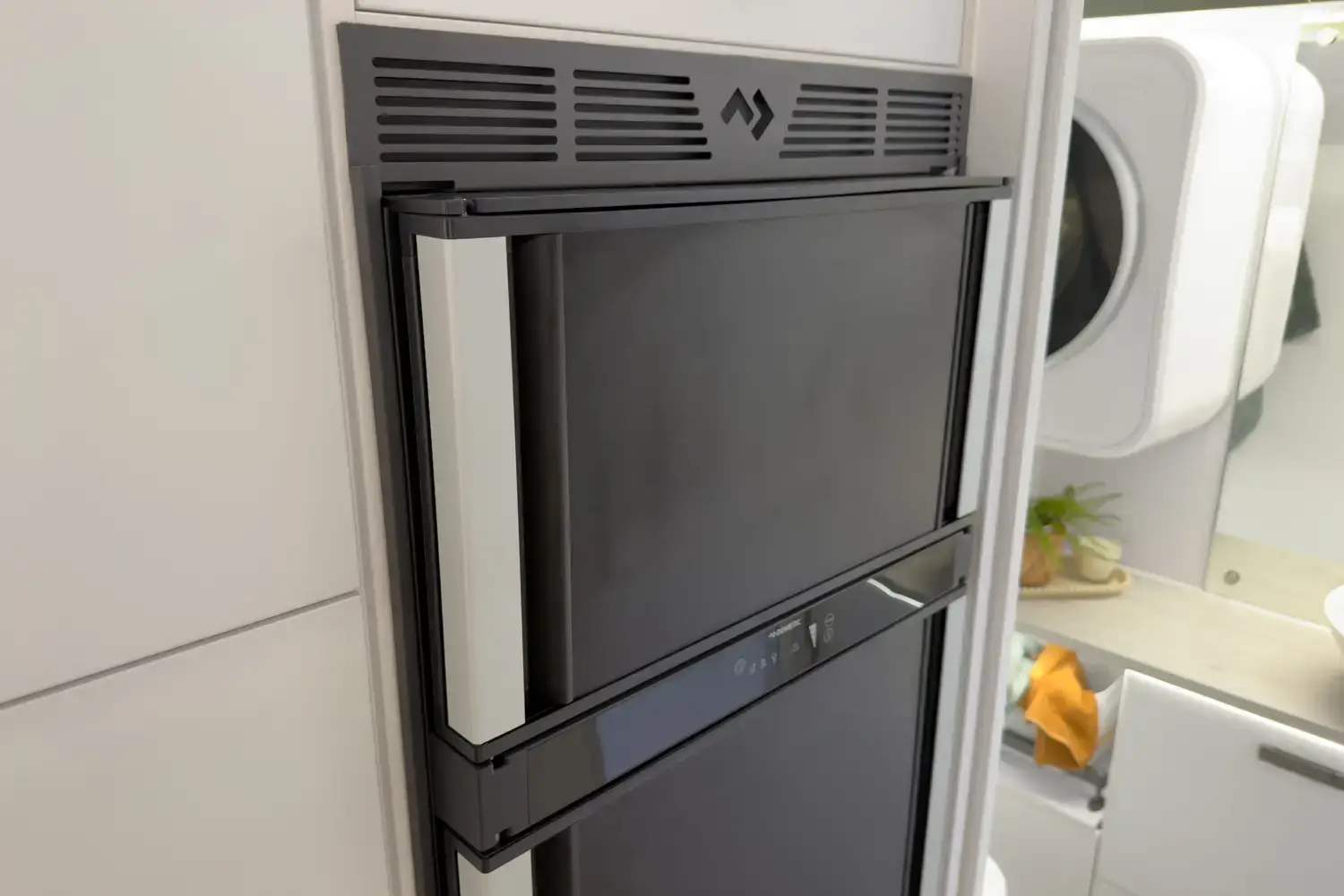

Dometic RCD10.5 200L Compressor Fridge - Cooktop

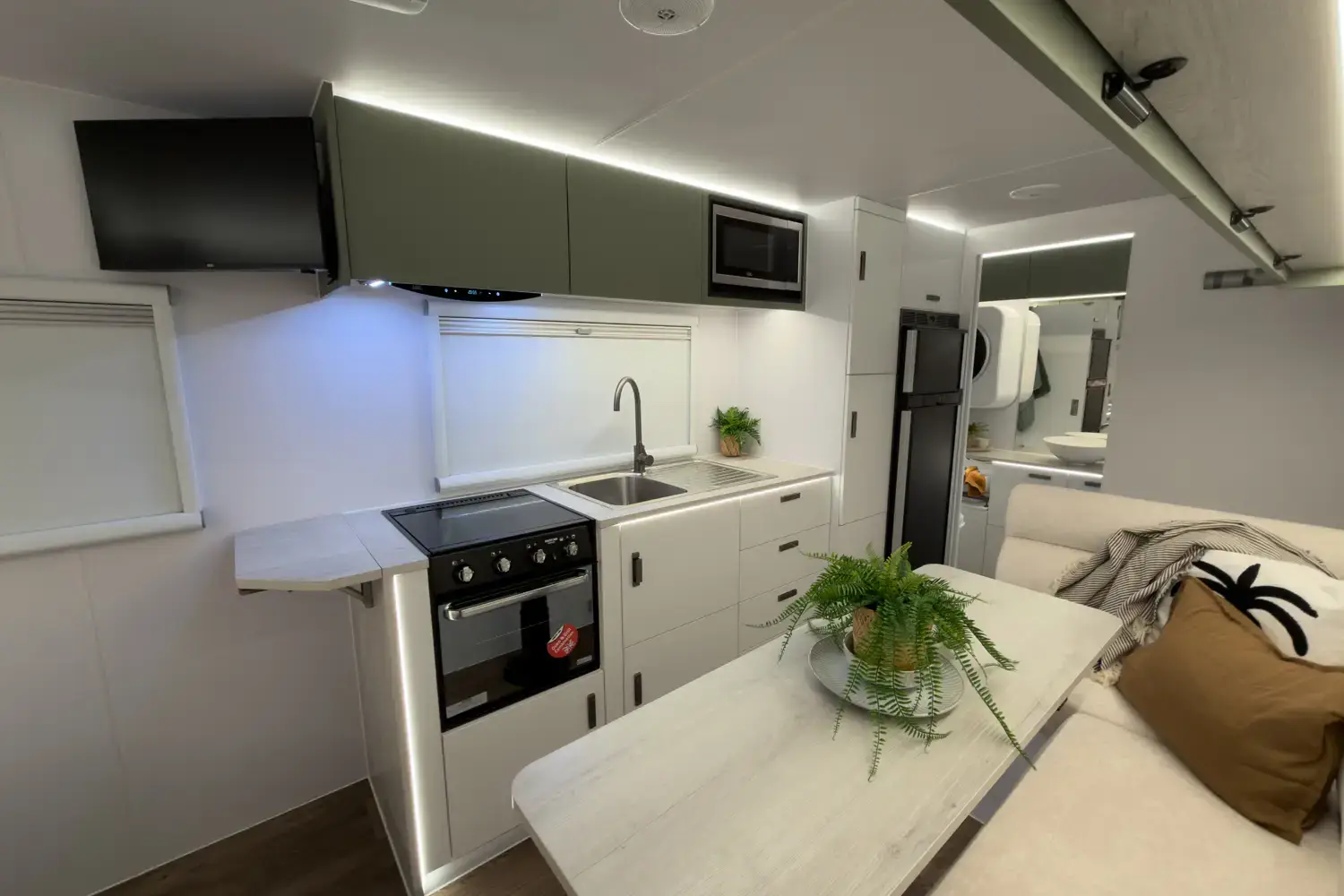

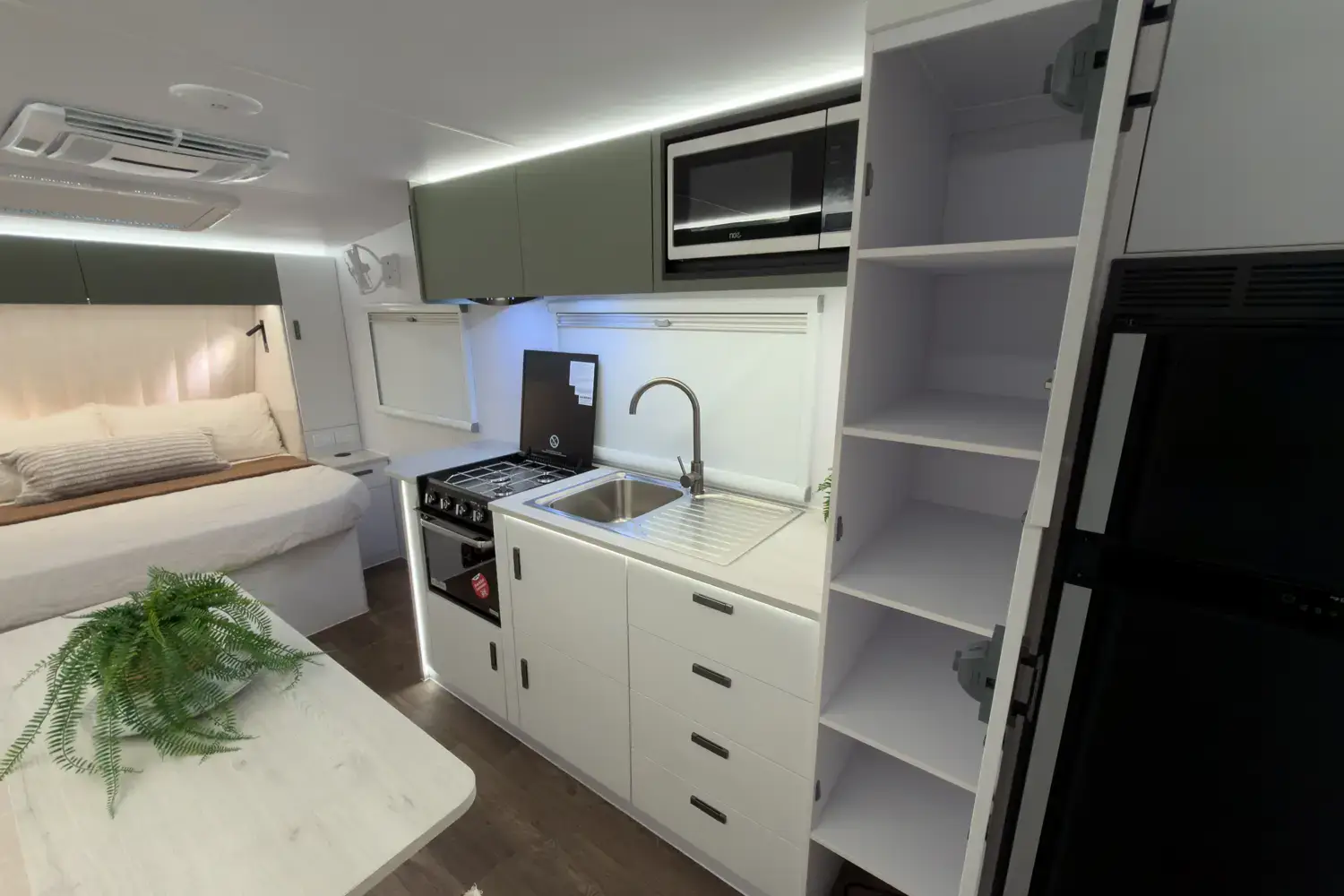

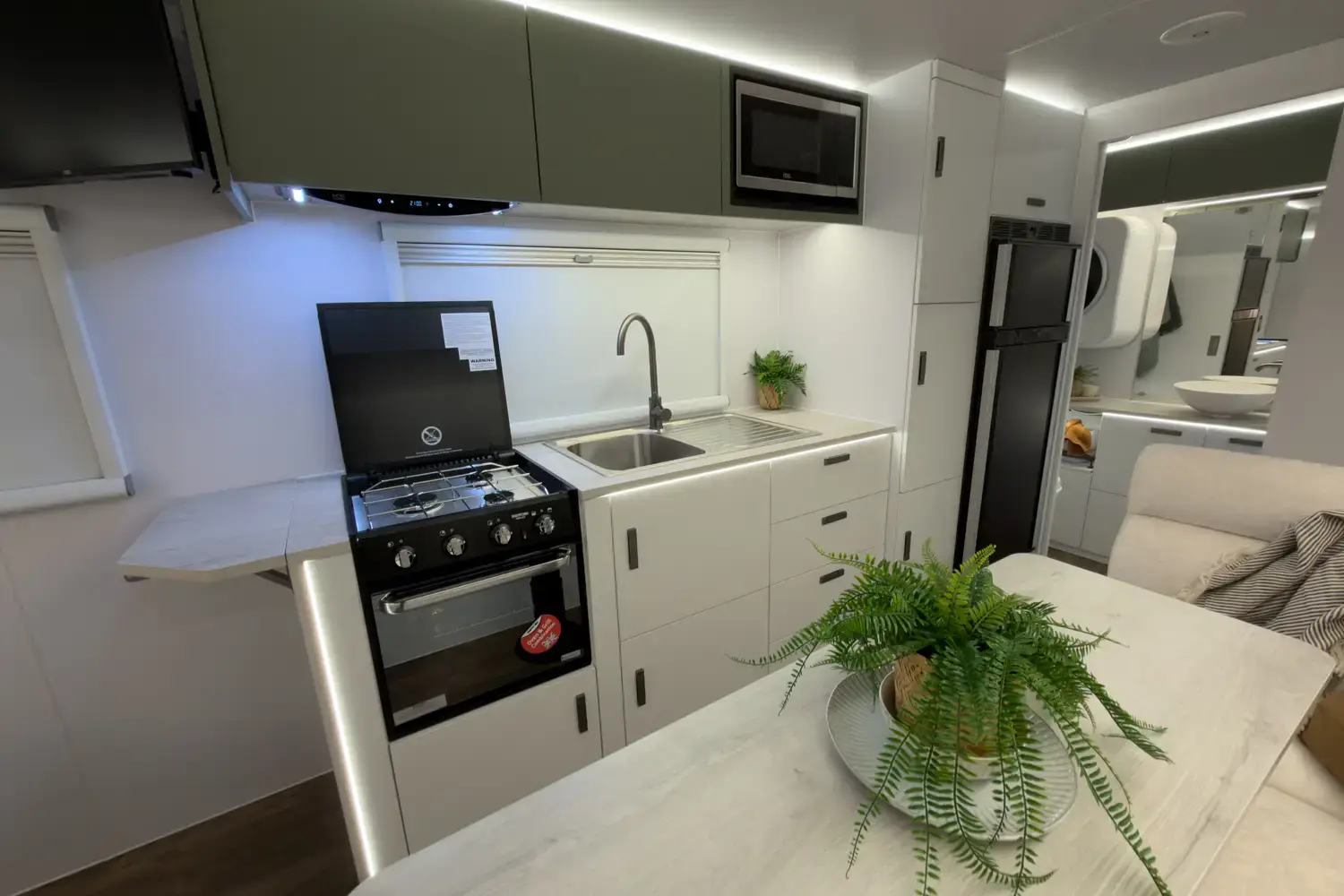

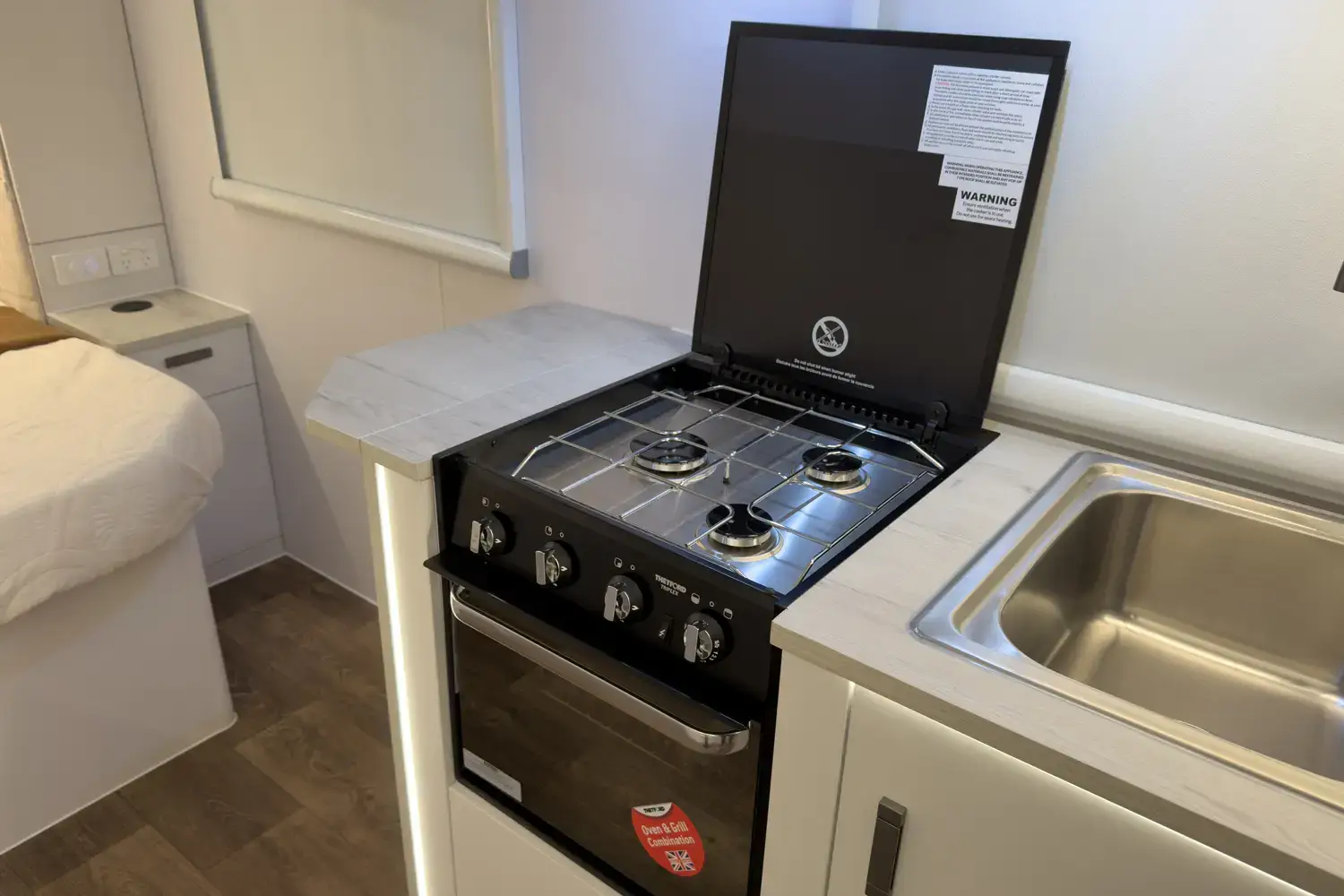

Thetford Triplex MK3 Compact Combination Cooker (Gas Only) - Washer

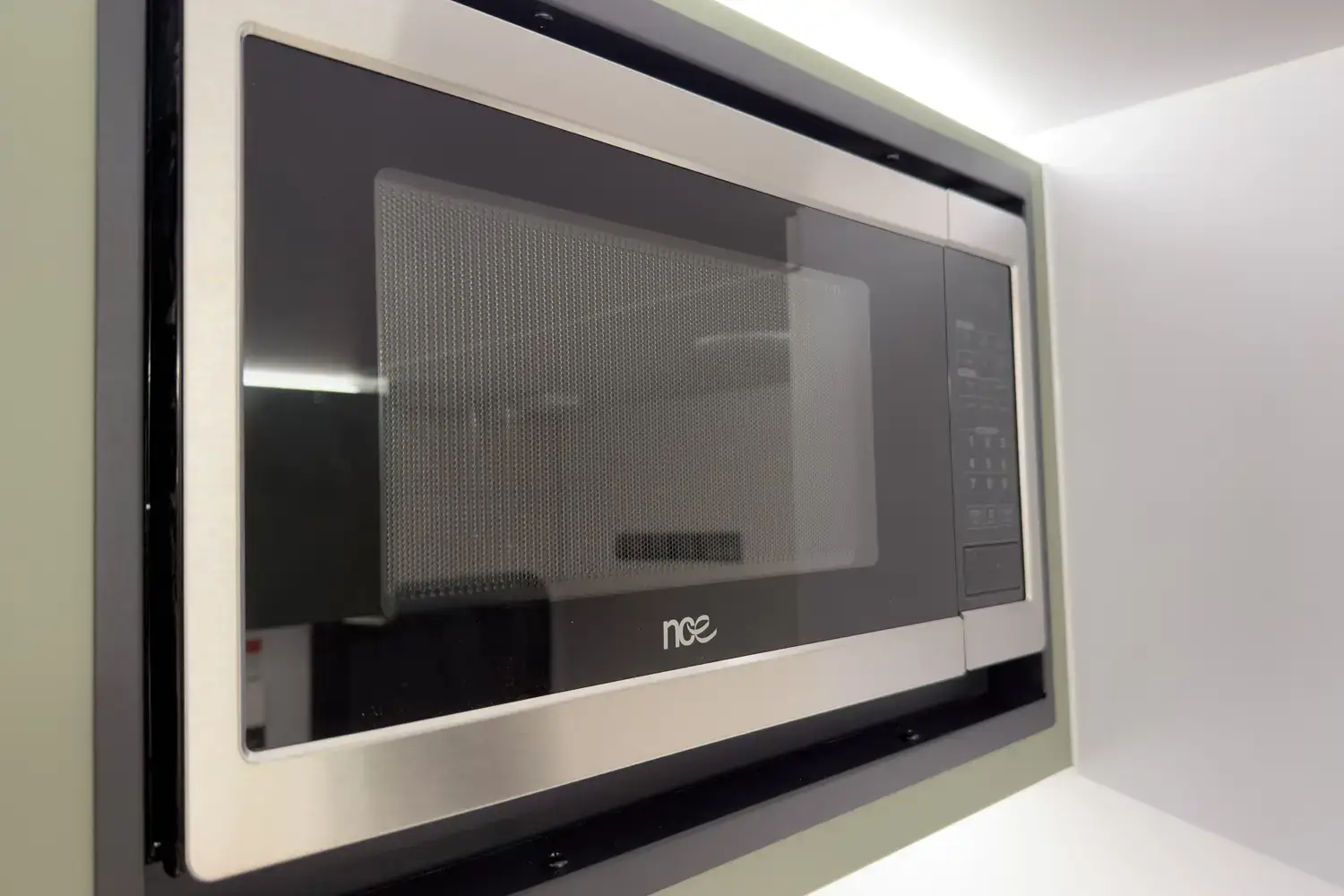

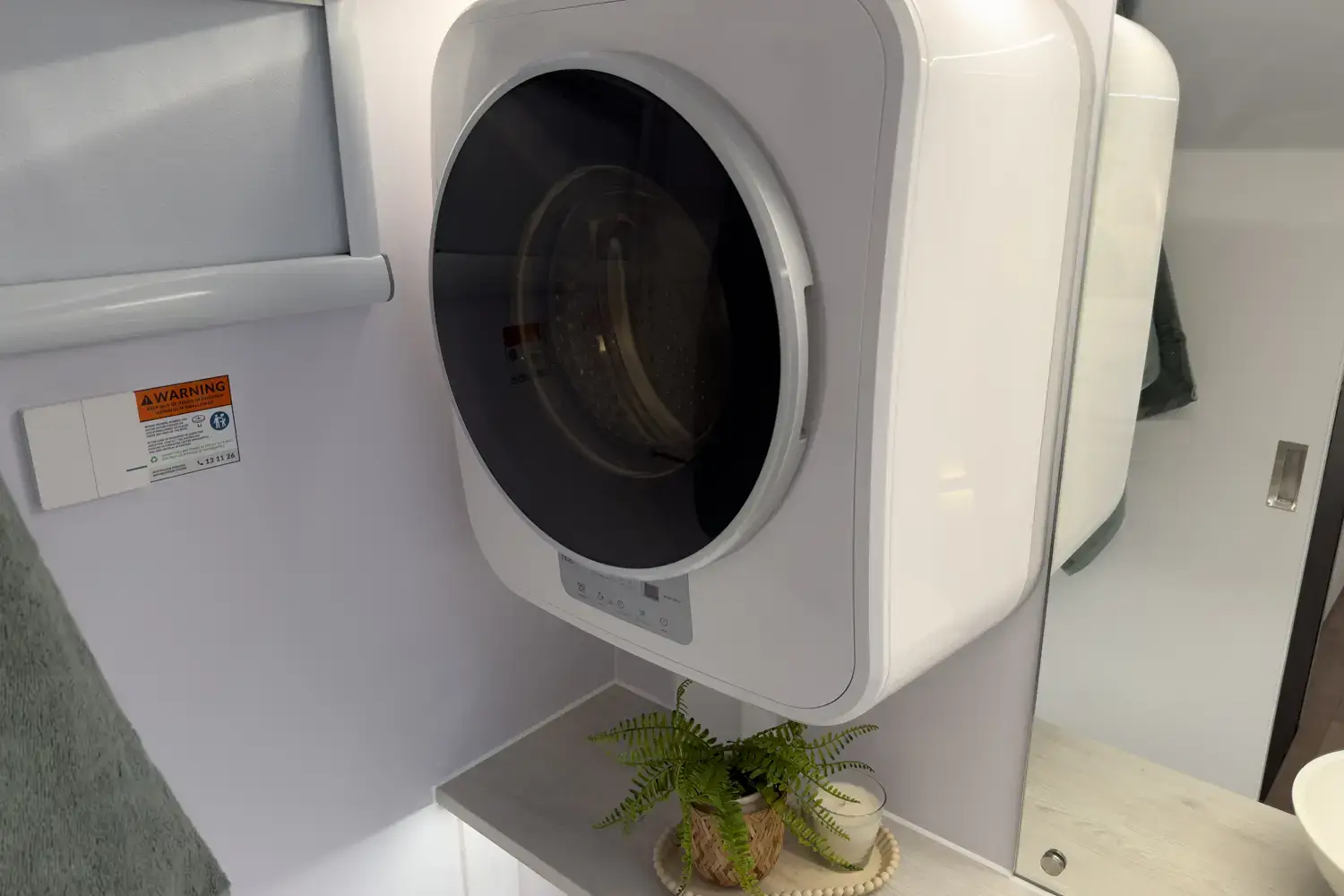

NCE wall-mounted washer - Microwave
NCE 23L flatbed microwave oven
- Battery
300Ah of LiFePRO+® lithium battery capacity - Solar Panels
525W of rooftop solar capacity - Portable Solar
Up to 600W of regulated portable solar via designated power inlet port (portable solar not supplied) - AC Charger
Projecta PM635 Intelli-Grid Gen3 60A AC Charger (All in One Kit) - Battery Charger
Projecta 45A DC-DC battery charger (integrated into Intelli-Grid unit) - Solar Controller
Projecta 45A MPPT solar controller (integrated into Intelli-Grid unit) - Display Screen

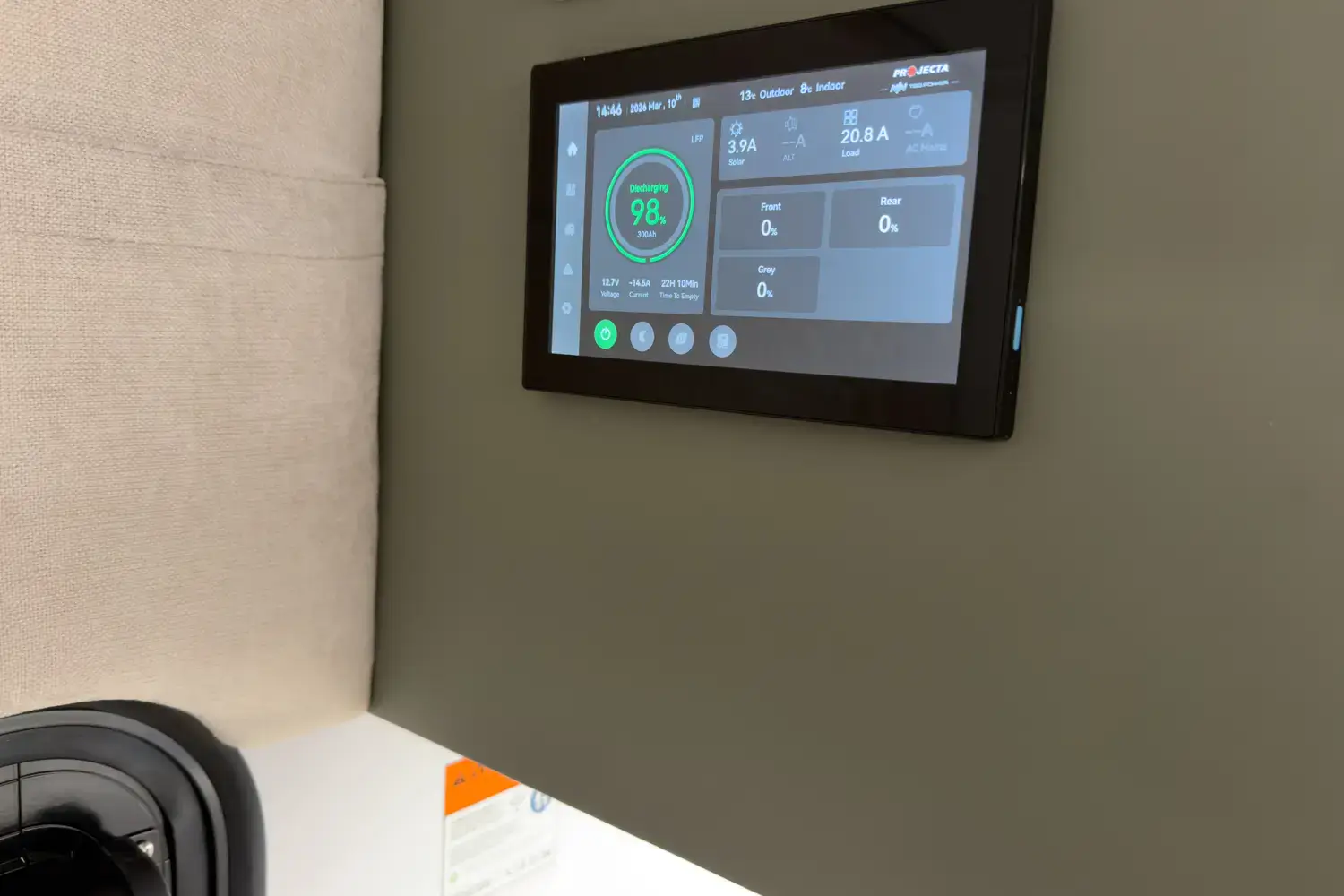

Projecta 7″ display screen with smart device connectivity - Inverter

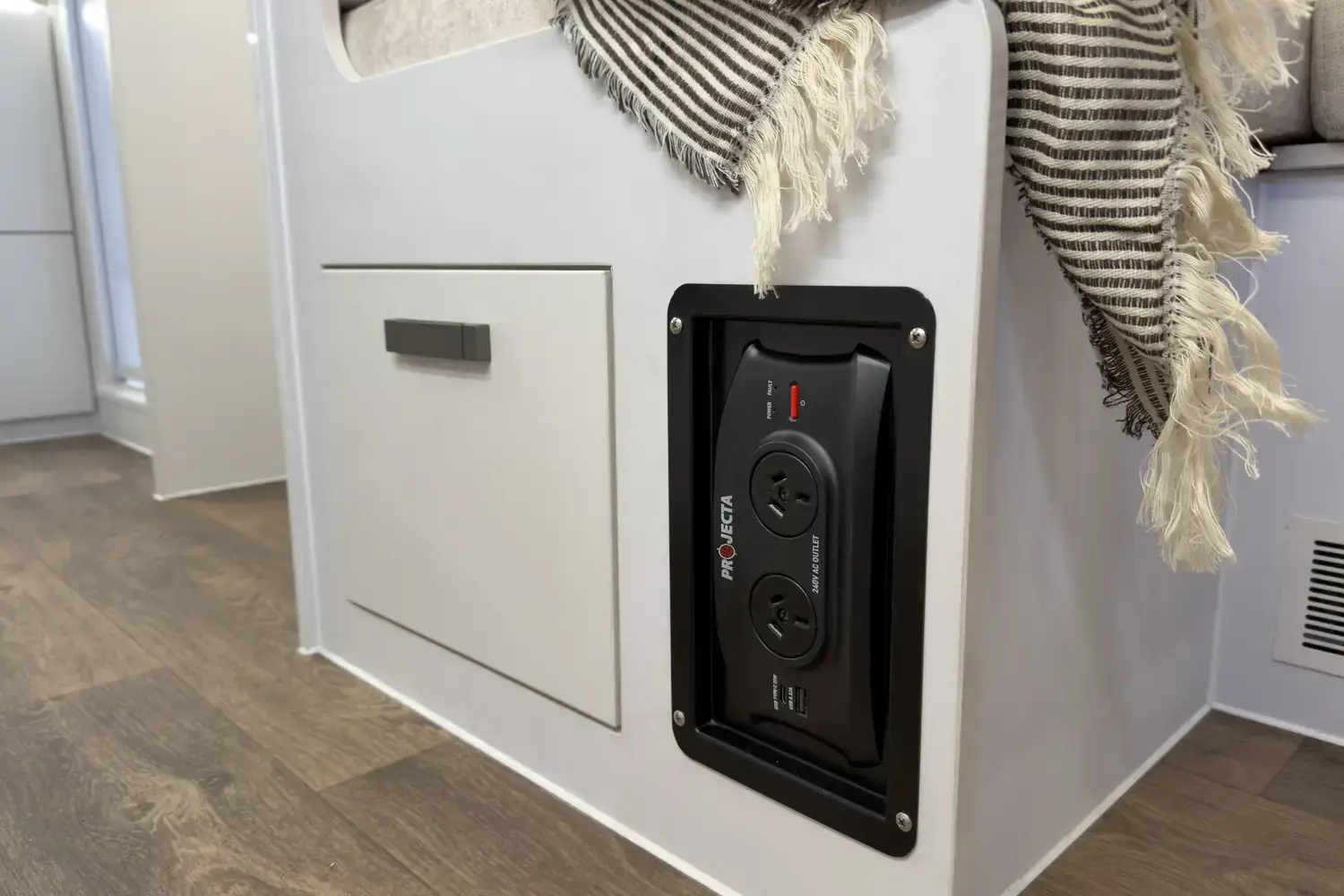

Projecta PW1600 1600W pure sine wave inverter - Internal Lighting
Internal 12V LED mood lighting - External Lighting
External 12V LED lighting with yellow bug light function - Trailer Plug
12-pin flat trailer plug - Stereo
Stereo head unit with internal & external speakers - TV

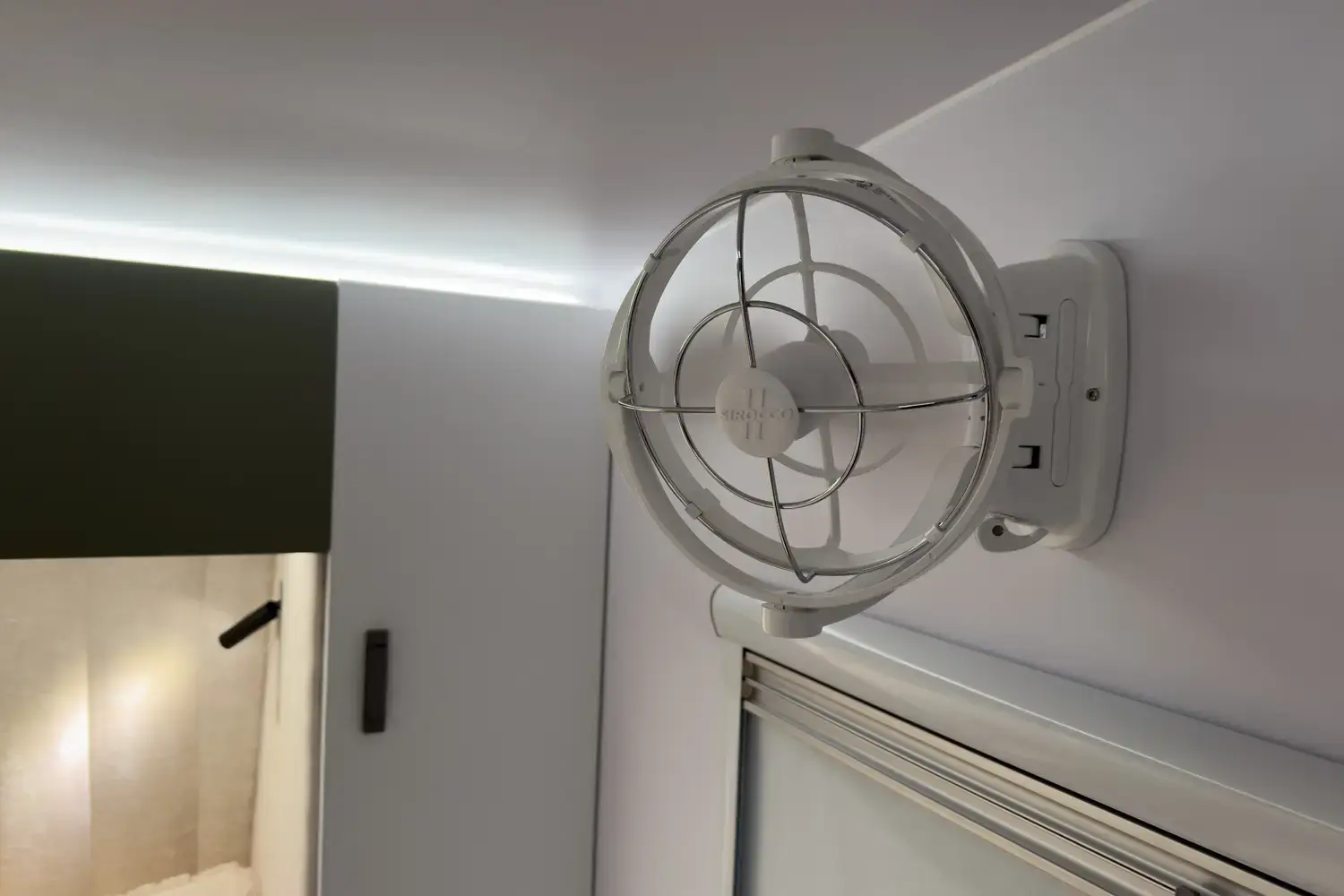

24″ Google Ready Smart TV - Fans
Caframo Sirocco II 12V Fans
- Sockets
12V accessory sockets - USB Points
USB charging ports - Power Points
240V GPOs - TV Outlet

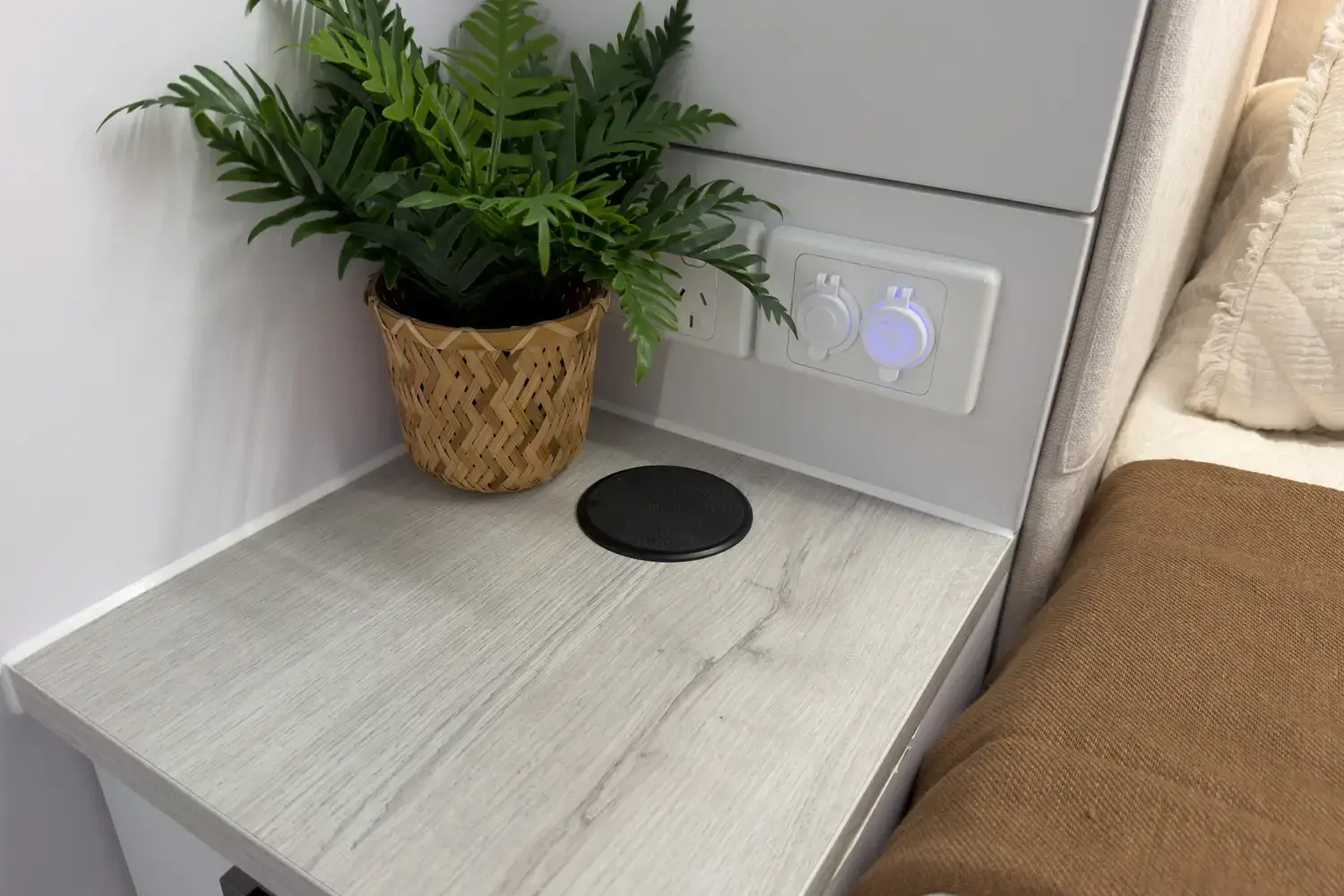

F-type TV outlet - Wireless Charger
Wireless charging pads
- Socket
12V accessory socket - USB Points
USB charging ports - Plug
Anderson plug - TV Inlet
F-type TV inlet & through wall cable port
