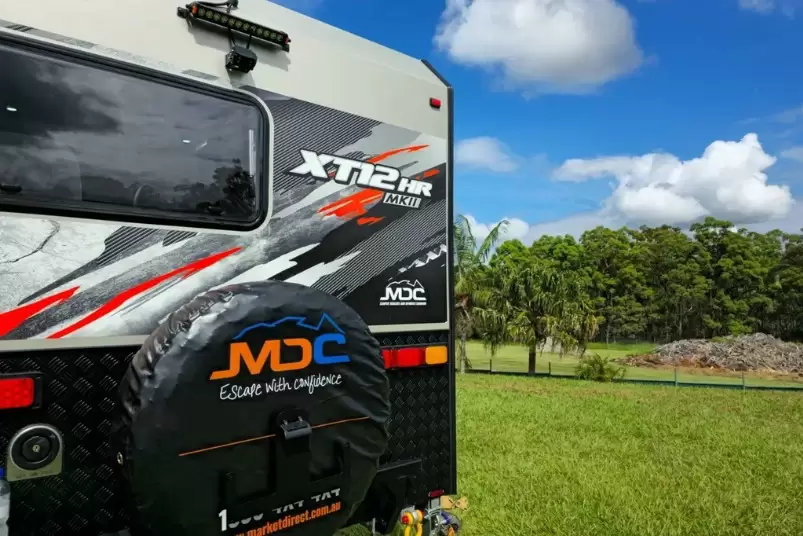

2026 NEW MDC XT 12HR MKII

XT12HR MKII – Compact Size. Full Caravan Capability.

Touring off-road doesn’t need to mean roughing it. The XT12HR MKII delivers everything you’d expect from a full-size caravan… just without the bulk dragging behind you like a bad financial decision.

Inside, you’ll find a complete internal kitchen and a combination ensuite with shower and toilet, giving you true independence wherever you pull up. Add in air conditioning, diesel heating, and a comfortable east-west bed, and suddenly “off-grid” feels suspiciously like a hotel… just with better views and fewer strangers.

This little weapon is built for simplicity. With a full electric awning, slide-out external kitchen, and quick setup design, you’ll be parked up and relaxing while everyone else is still arguing over tent poles.

Power and water? Sorted.

With lithium power, solar charging, and generous water storage, you can stay off-grid longer without constantly checking your battery like it’s about to betray you.

And when it comes to getting there, the XT12HR MKII doesn’t flinch.

Built on X-Track independent suspension with Tough Trax shocks, paired with electronic stability control and a rear-view camera, you’ll tow with confidence whether it’s highway cruising or heading somewhere Google Maps politely avoids.

Compact, capable, and ridiculously well-equipped… this is what happens when someone actually thinks about how people travel.

GENERAL

12’ Offroad Caravan
2 Berth

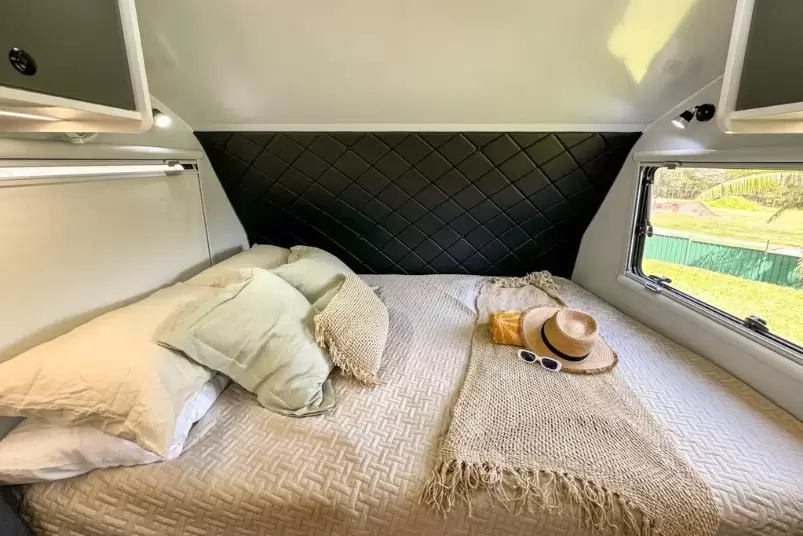

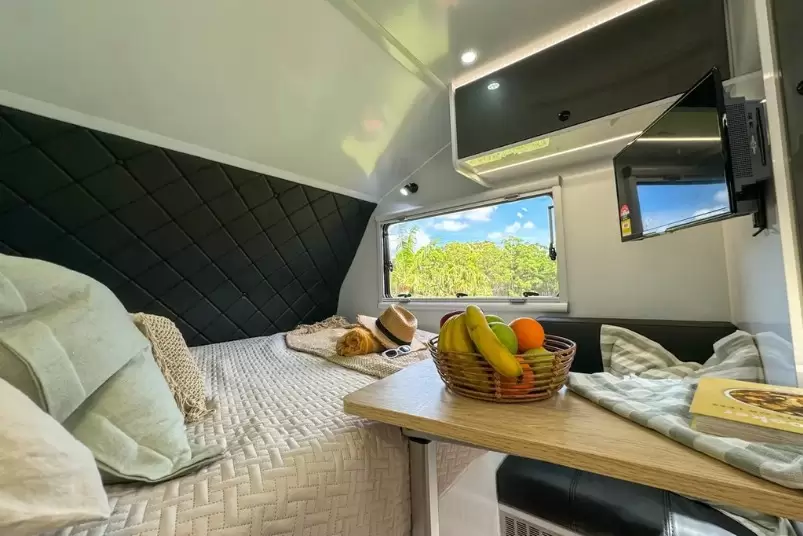

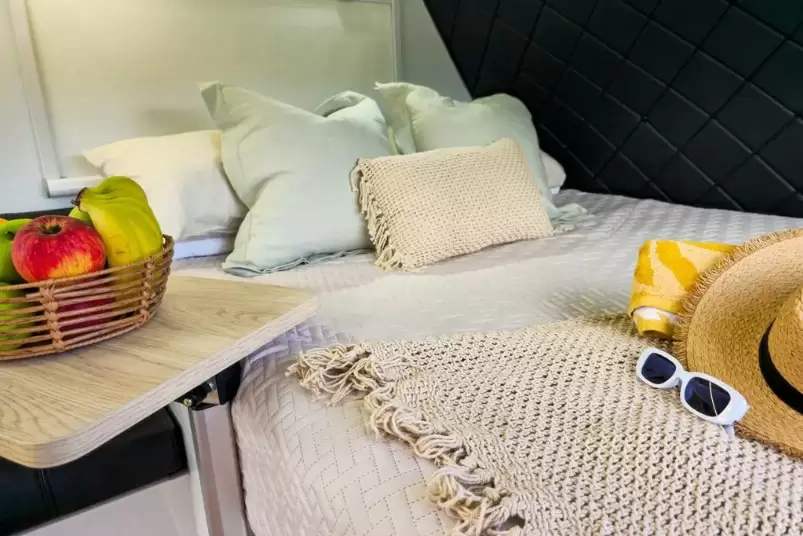

1 x custom pillow-top queen size innerspring mattress
Mattress size – 2000mm L x 1500mm W x 200mm H
Galvanised chassis + aluminium composite panel throughout
Combination of welded aluminium 50mm x 25mm RHS and 40mm x 20mm RHS and 25mm x 25mm and 20mm x 20mm square aluminium alloy

WEIGHTS & RATINGS

Tare weight Approx. 1940kg
Towball weight Approx. 150kg
ATM Rating 2800kg *
Payload Approx. 860Kg

DIMENSIONS – with Aircon

Open – 5580mm L x 5285mm W x 3000mm H
Closed (Travel Size) – 5580mm L x 2265mm W x 3000mm H
Annex Size – 3.8m x 2.2m
Ensuite tent – 1.2m x 0.8m

CHASSIS

120mm x 50mm – Q345 galvanised steel RHS drawbar
Cruisemaster™ DO35 hitch
10” swing up and lockable Jockey Wheel
16 x 7.5 6/139.7 aluminium alloy wheels fitted with 265/75 R16 Goodride radial mud terrain & 1 x spare wheel
X-TRACK independent coil spring suspension with 2 x TOUGH TRAX HD shock absorbers on each side
12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
4 x heavy duty lockable and adjustable drop down stabiliser legs
CASP 1500kg high-lift scissor jack & integrated jacking points

EXTERIOR

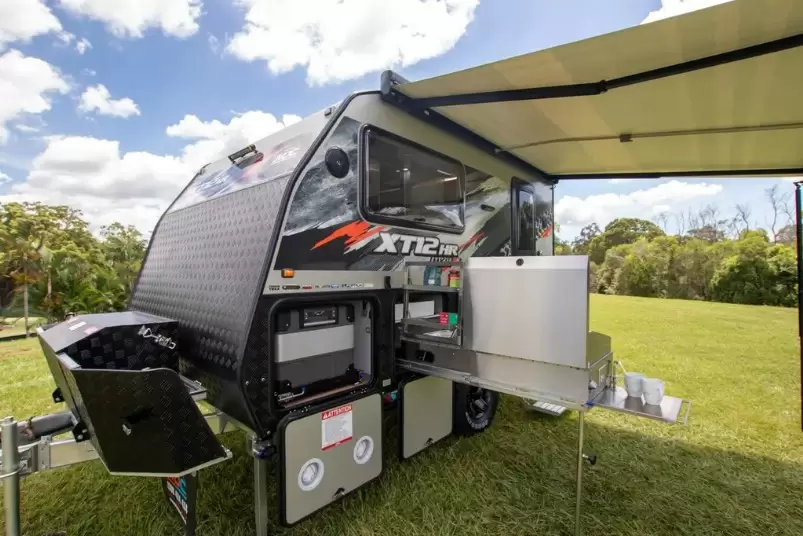

3m 12V electric cassette awning

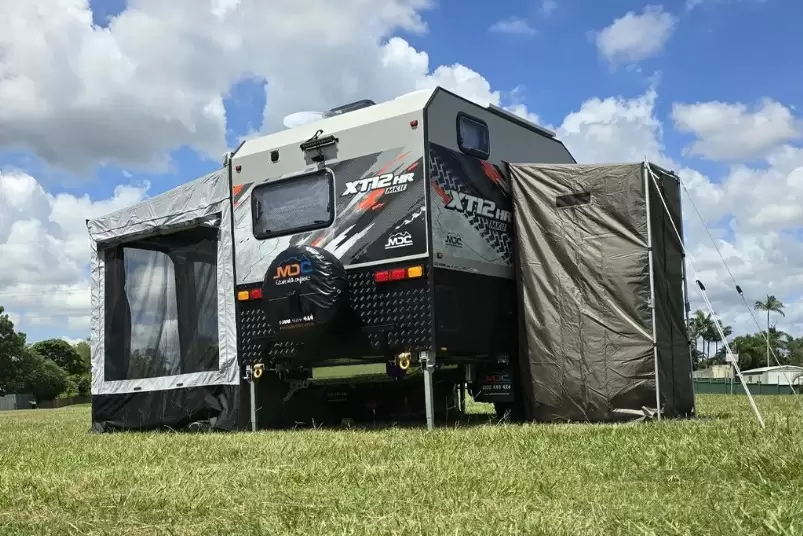

Full annex, enclosed roof, walls, floor and draft skirt
2 x 9kg gas cylinder holders with LCC27 pigtail connector
2 x 20L jerry can holders
2 x 80L fresh water & 1 x 40L grey water tank
12V electric marine diaphragm pump

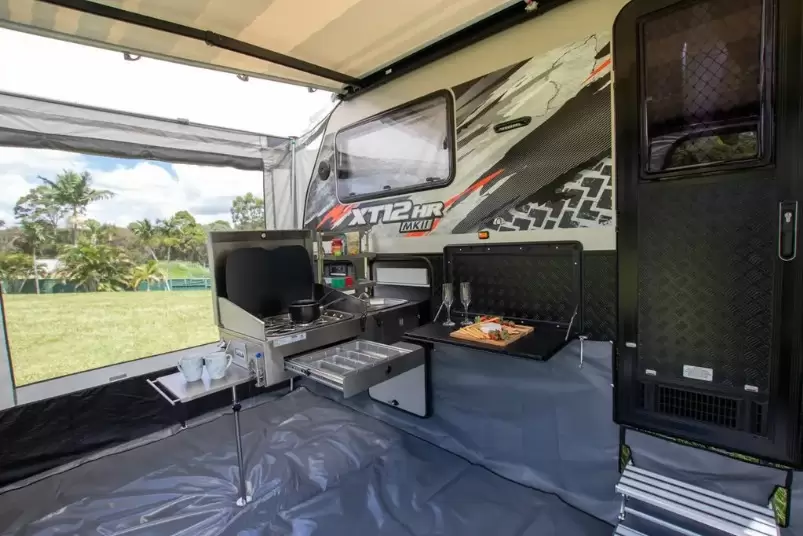

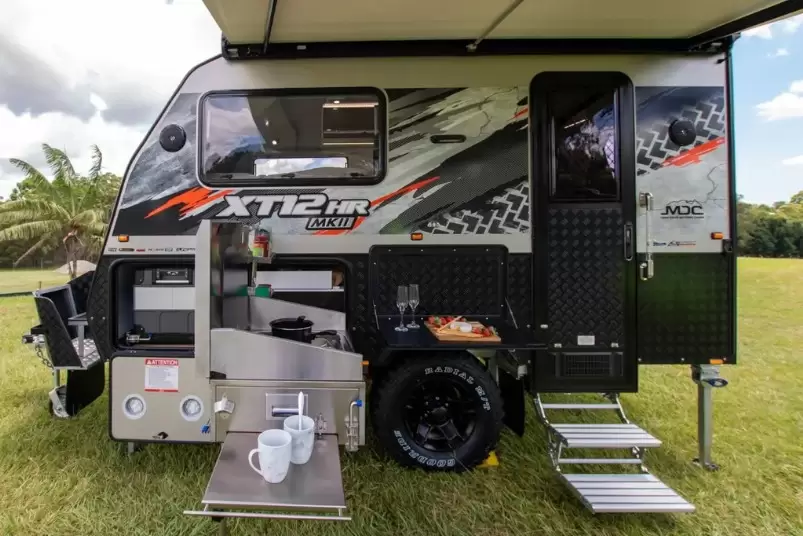

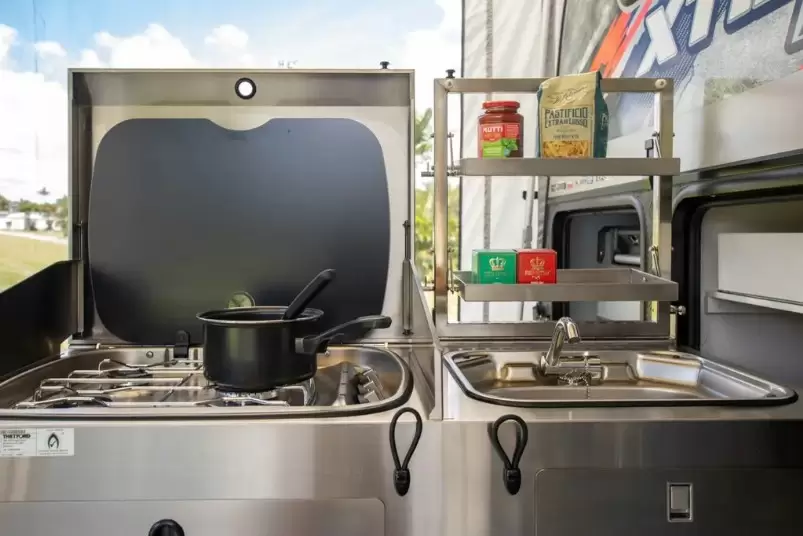

External Slide out stainless steel body with gas hob cooktop & washboard sink with plumbed hot & cold water supply
Chequer plate stone guard & gas storage locker with forward-facing mud flap protection
Fridge Slide – 945mm L x 550mm W x 485mm H
Hot/cold external shower includes wall-mounted ensuite tent
Wall-mounted drop-down servery table

INTERIOR

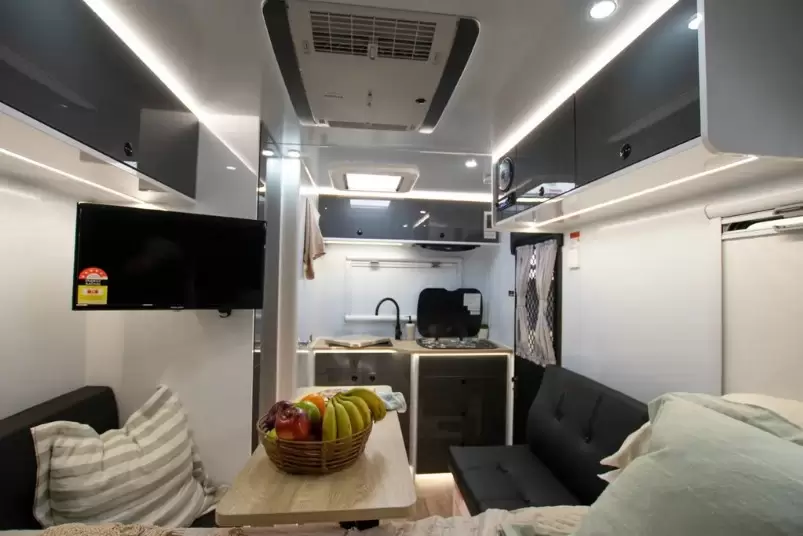

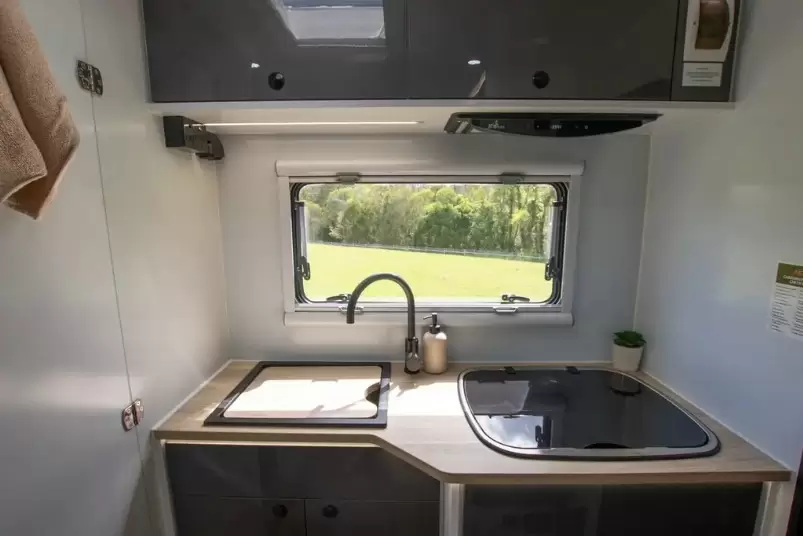

Internal Modern oak timber style laminated bench & counter tops with black matte finished sink & tapware

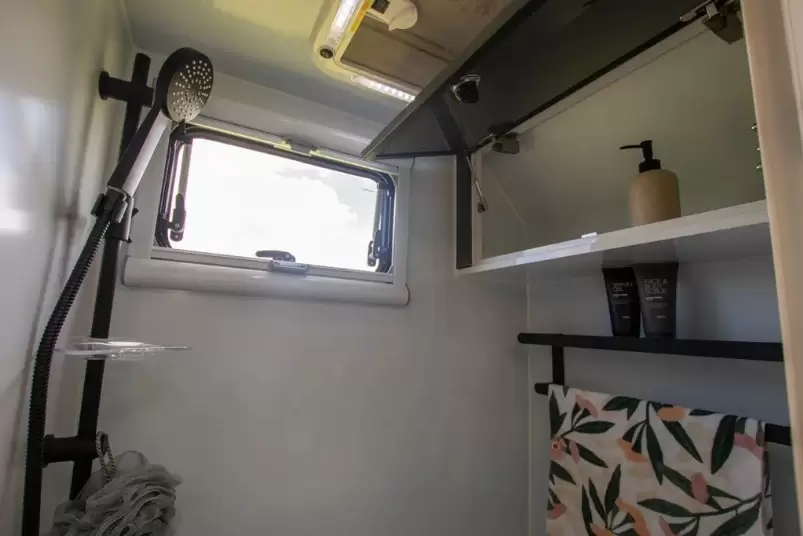

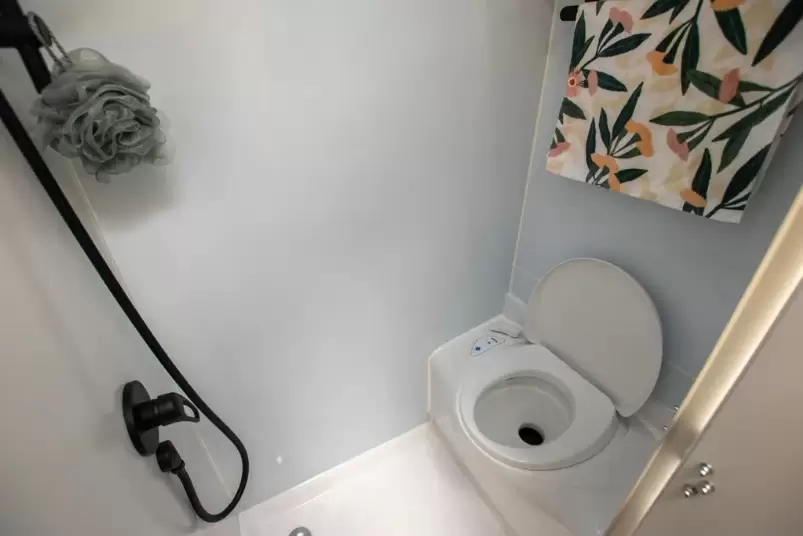

Thetford C400 cassette toilet + hot & cold plumbed shower combination ensuite
Double acrylic glazed windows and double cassette blind with flyscreen and block-out

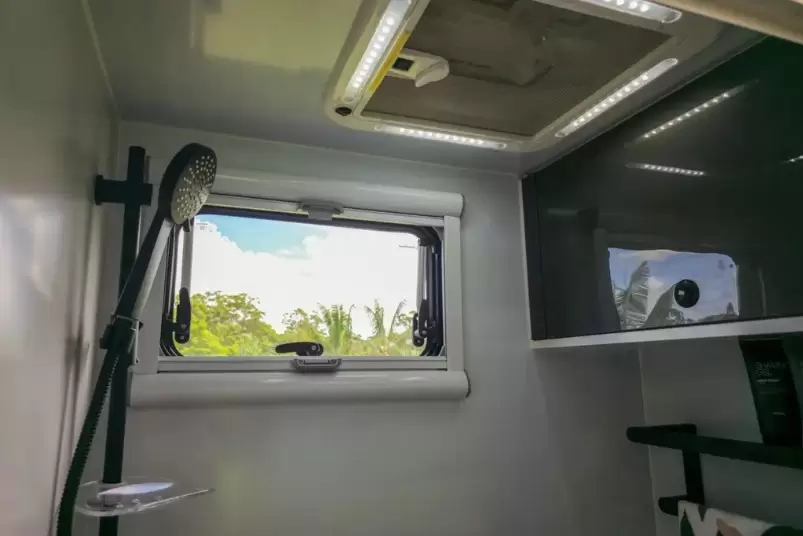

Ensuite 12V roof hatch with fan and LED lighting

MAJOR APPLIANCES

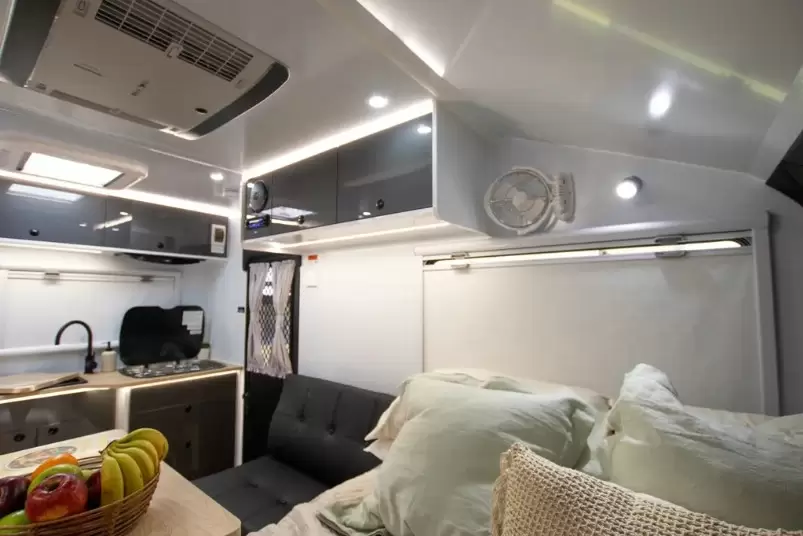

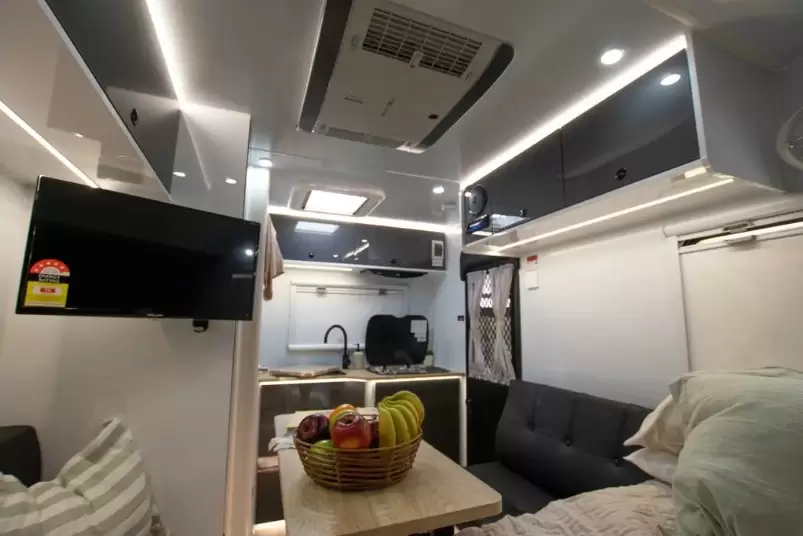

Truma Aventa comfort 2400W roof-mounted air conditioning system with integrated heat pump
14L Truma UltraRapid Hot Water System(gas-operated)
Internal Stainless steel 3-burner gas hob cooktop with glass lid
External Stainless steel 3-burner gas hob cooktop with glass lid
European made AutoTerm Air2D 2kW diesel heater with LED display & 12L diesel tank.

SAFETY FEATURES

Trail-Assure® BG-5000 – electronic stability control with asymmetric braking (off-road ready)
2.4GHz digital wireless rear view camera + 7″ portable monitor
MDC-LOK® – coupling lock
